| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_015T01_9000005026_35112cztM0_level2.evt | modeM0/AS1T05_015T01_9000005026_35112cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,005,120 | 70,205,760 |
| Size | 541.7 MB | 67.0 MB |
| Events in quadrant A | 3,078,971 | 438,662 |
| Events in quadrant B | 2,931,565 | 455,830 |
| Events in quadrant C | 3,143,502 | 443,853 |
| Events in quadrant D | 7,675,477 | 401,677 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12567 | 3 |
| B | 0 | 12086 | 2 |
| C | 0 | 12570 | 2 |
| D | 0 | 26655 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5511 | 128 | 2.322627% |
| B | 5511 | 45 | 0.816549% |
| C | 5511 | 104 | 1.887135% |
| D | 5511 | 691 | 12.538559% |

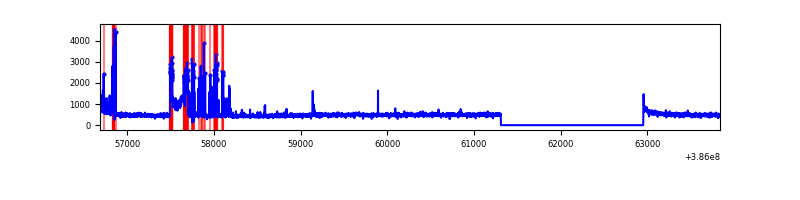

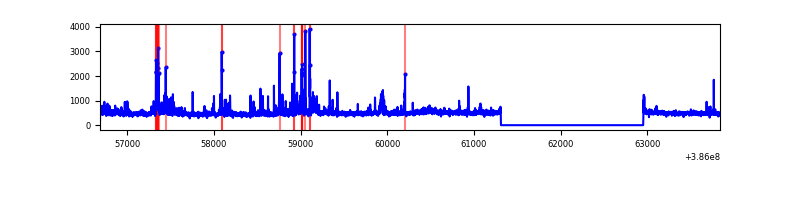

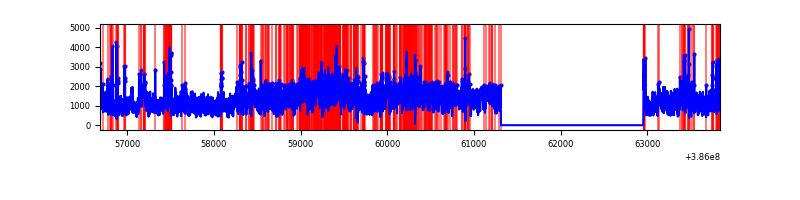

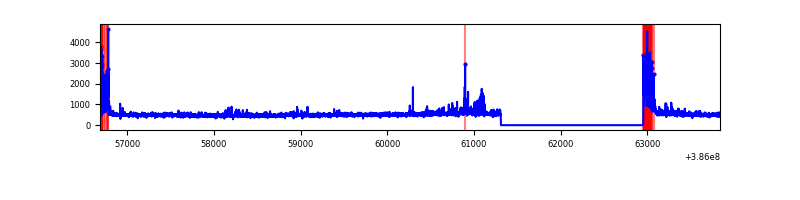

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7155 | 5512 | 100 | 100 | 1.40% | 1.81% |  |
| B | 7155 | 5512 | 23 | 23 | 0.32% | 0.42% |  |
| C | 7155 | 5512 | 73 | 73 | 1.02% | 1.32% |  |
| D | 7155 | 5512 | 599 | 599 | 8.37% | 10.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 478612 | 3648.97 | 646 | 634 | 131.0 |
| A | 10 | 83 | 84748 | 642.14 | 646 | 634 | 131.0 |
| A | 13 | 6 | 9557 | 68.12 | 646 | 634 | 131.0 |
| B | 5 | 172 | 190869 | 1531.13 | 646 | 628 | 124.2 |
| B | 4 | 232 | 57243 | 455.66 | 646 | 628 | 124.2 |
| B | 0 | 189 | 46525 | 369.39 | 646 | 628 | 124.2 |
| C | 0 | 10 | 326076 | 2247.34 | 625 | 629 | 144.8 |
| C | 15 | 214 | 232691 | 1602.48 | 625 | 629 | 144.8 |
| C | 0 | 207 | 82666 | 566.5 | 625 | 629 | 144.8 |
| D | 8 | 195 | 4364640 | 29147.54 | 609 | 591 | 149.7 |
| D | 13 | 249 | 335336 | 2235.77 | 609 | 591 | 149.7 |
| D | 7 | 80 | 234902 | 1564.97 | 609 | 591 | 149.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

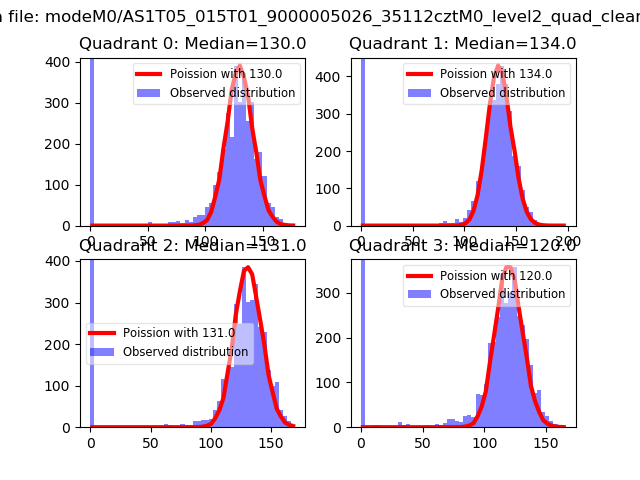

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

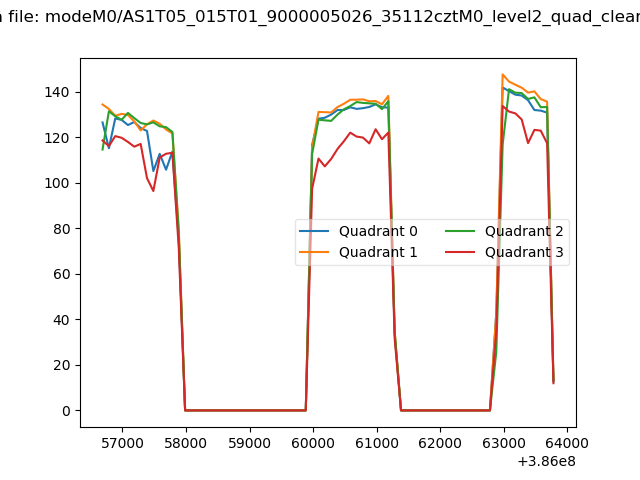

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

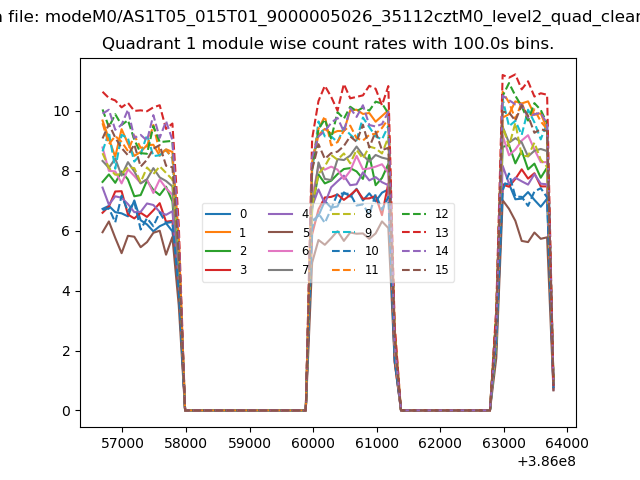

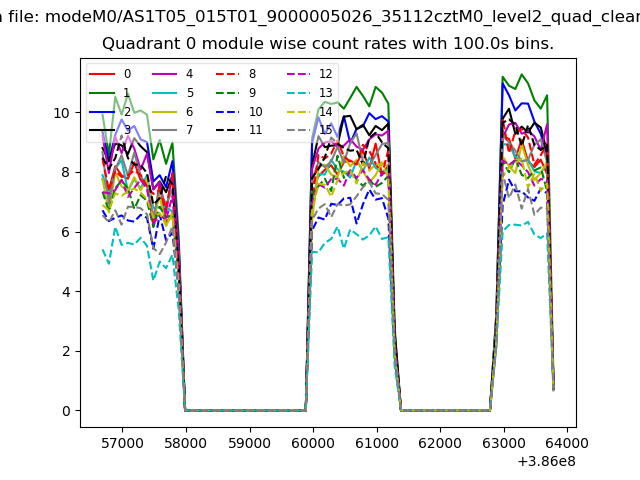

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

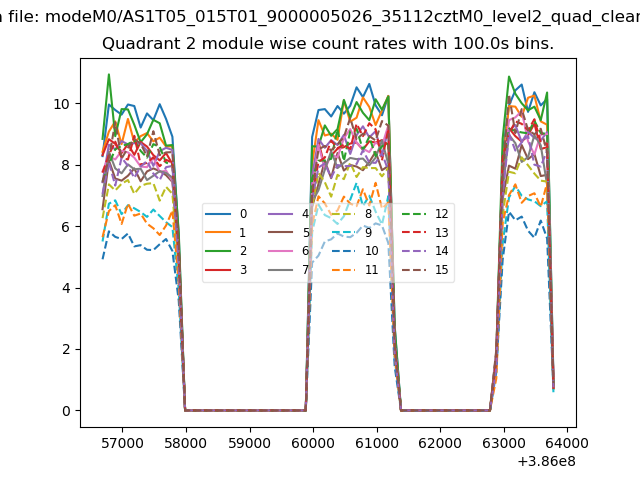

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

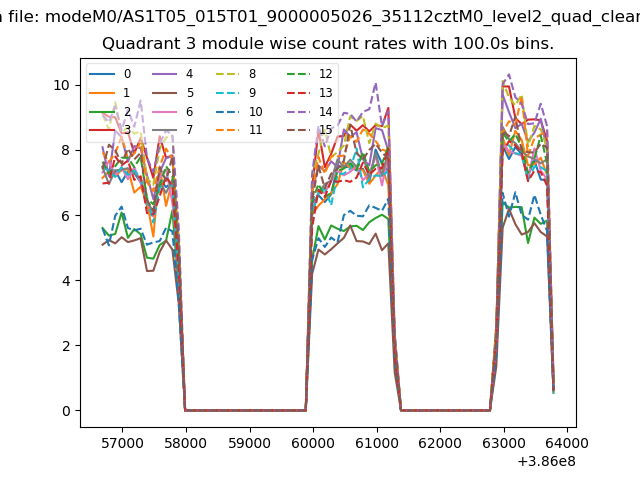

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

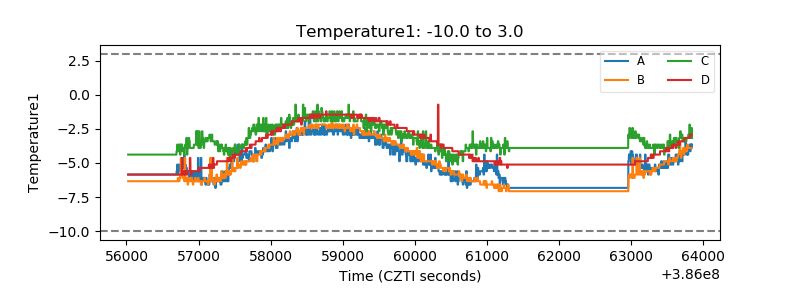

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

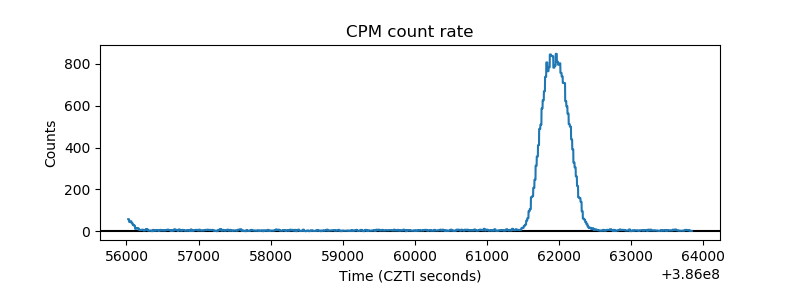

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

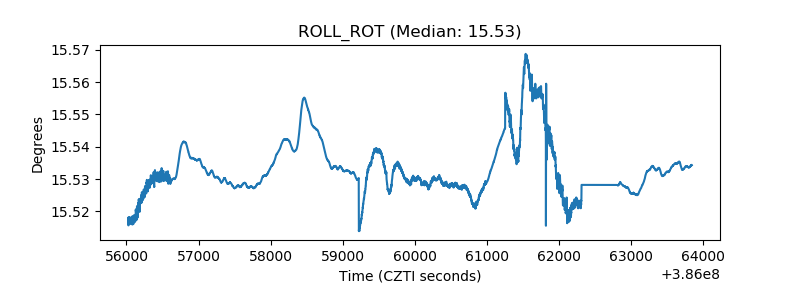

| _ROLL_ROT |  |

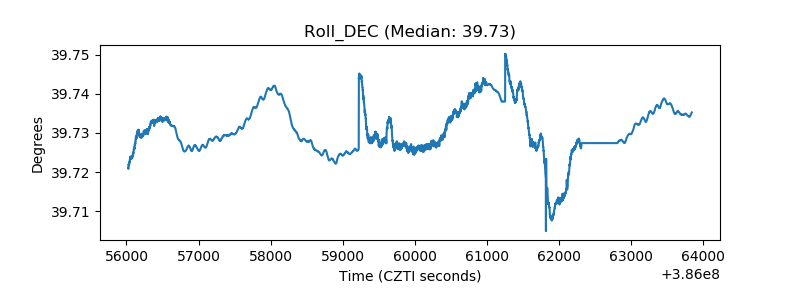

| _Roll_DEC |  |

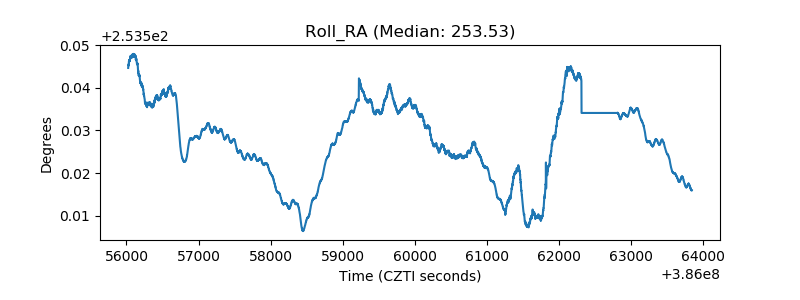

| _Roll_RA |  |

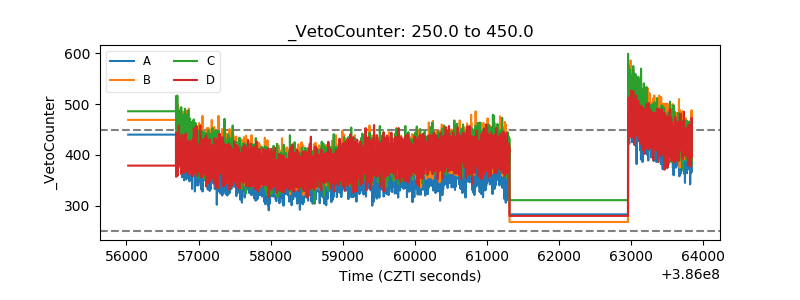

| Veto Counter |  |
