| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T09_9000005028_35132cztM0_level2.evt | modeM0/AS1A11_047T09_9000005028_35132cztM0_level2_quad_clean.evt |
| Size (bytes) | 699,750,720 | 82,517,760 |
| Size | 667.3 MB | 78.7 MB |
| Events in quadrant A | 9,475,207 | 396,892 |
| Events in quadrant B | 3,541,382 | 609,853 |
| Events in quadrant C | 2,725,687 | 596,151 |
| Events in quadrant D | 5,121,395 | 553,332 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31478 | 2 |
| B | 0 | 13639 | 1 |
| C | 0 | 10779 | 1 |
| D | 0 | 18702 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4864 | 3074 | 63.199013% |
| B | 4864 | 190 | 3.906250% |
| C | 4864 | 50 | 1.027961% |
| D | 4864 | 276 | 5.674342% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

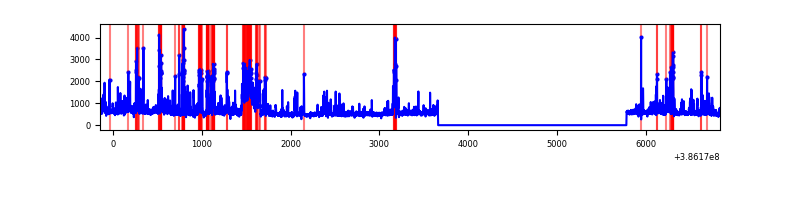

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6988 | 4865 | 2568 | 2568 | 36.75% | 52.79% |  |
| B | 6988 | 4865 | 151 | 151 | 2.16% | 3.10% |  |
| C | 6988 | 4865 | 32 | 32 | 0.46% | 0.66% |  |
| D | 6988 | 4865 | 262 | 262 | 3.75% | 5.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 7787191 | 92108.46 | 425 | 419 | 84.5 |
| A | 10 | 83 | 31038 | 362.19 | 425 | 419 | 84.5 |
| A | 13 | 6 | 7885 | 88.31 | 425 | 419 | 84.5 |
| B | 5 | 172 | 450925 | 3831.96 | 616 | 603 | 117.5 |
| B | 5 | 236 | 400436 | 3402.33 | 616 | 603 | 117.5 |
| B | 0 | 189 | 115942 | 981.46 | 616 | 603 | 117.5 |
| C | 15 | 214 | 200329 | 1431.27 | 603 | 610 | 139.5 |
| C | 0 | 10 | 122929 | 876.59 | 603 | 610 | 139.5 |
| C | 14 | 67 | 25579 | 178.94 | 603 | 610 | 139.5 |
| D | 8 | 195 | 2000241 | 13620.66 | 606 | 590 | 146.8 |
| D | 13 | 249 | 198353 | 1347.07 | 606 | 590 | 146.8 |
| D | 10 | 118 | 164743 | 1118.13 | 606 | 590 | 146.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

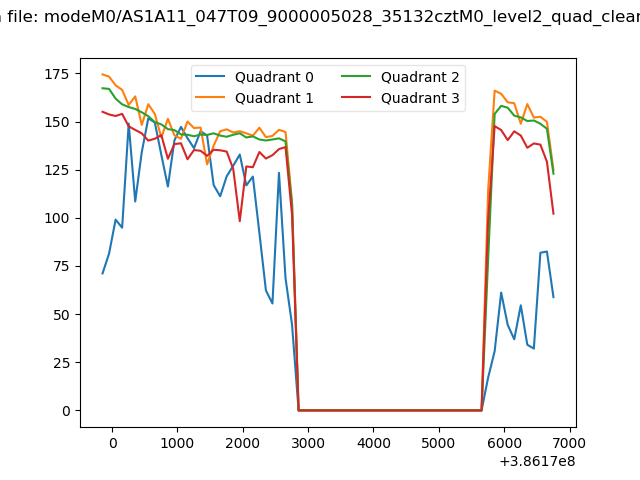

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

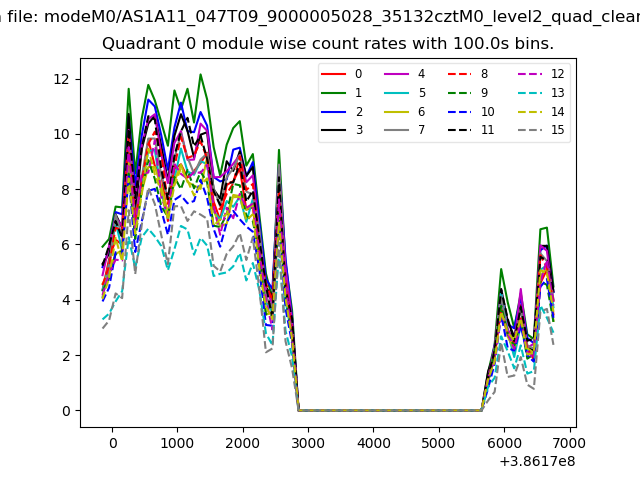

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

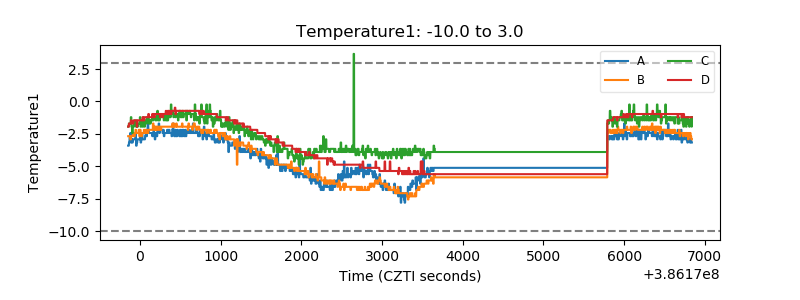

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

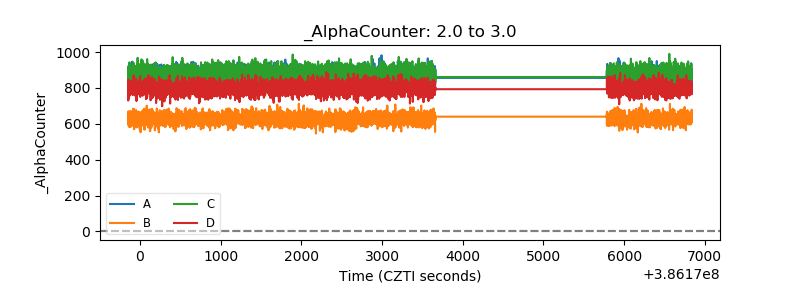

| Alpha Counter |  |
| _CPM_Rate |  |

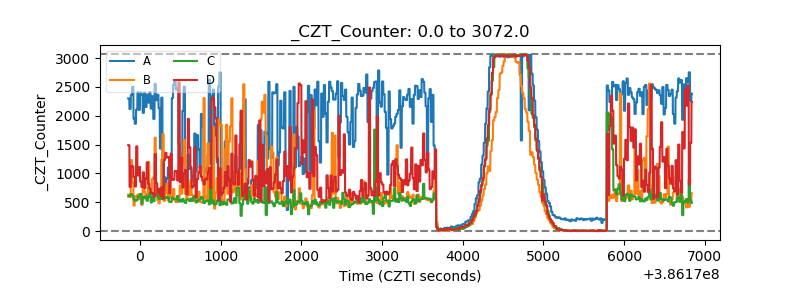

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

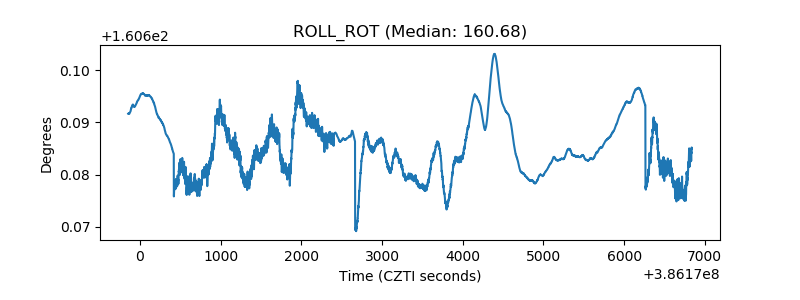

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

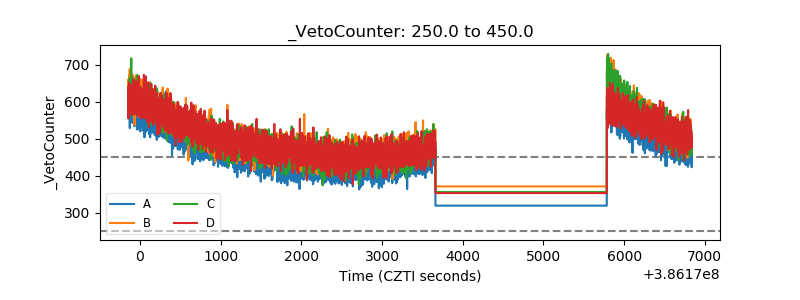

| Veto Counter |  |
