| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T09_9000005028_35135cztM0_level2.evt | modeM0/AS1A11_047T09_9000005028_35135cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,355,840 | 62,784,000 |
| Size | 500.1 MB | 59.9 MB |
| Events in quadrant A | 2,842,514 | 398,718 |
| Events in quadrant B | 2,999,749 | 399,364 |
| Events in quadrant C | 3,367,488 | 387,806 |
| Events in quadrant D | 6,306,683 | 338,545 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11941 | 3 |
| B | 0 | 12417 | 2 |
| C | 0 | 13316 | 2 |
| D | 0 | 22537 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5370 | 47 | 0.875233% |
| B | 5370 | 63 | 1.173184% |
| C | 5370 | 137 | 2.551210% |
| D | 5370 | 637 | 11.862197% |

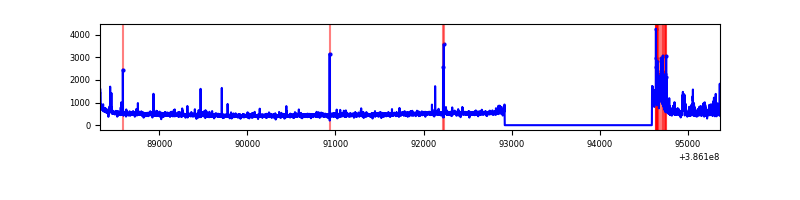

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

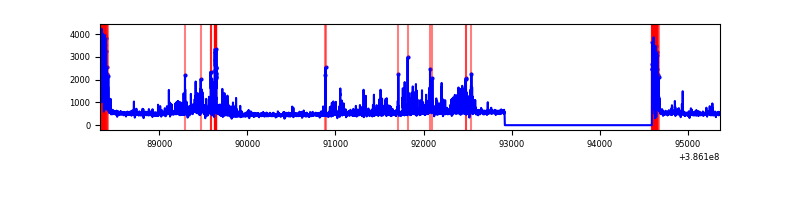

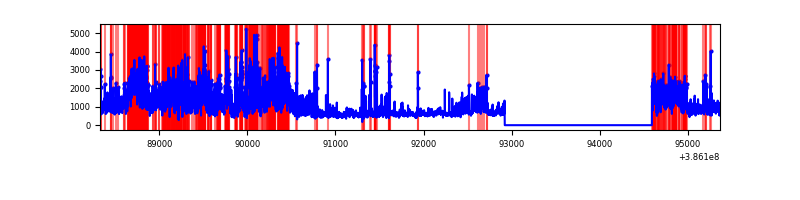

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7042 | 5371 | 21 | 21 | 0.30% | 0.39% |  |
| B | 7042 | 5371 | 35 | 35 | 0.50% | 0.65% |  |
| C | 7042 | 5371 | 105 | 105 | 1.49% | 1.95% |  |
| D | 7042 | 5371 | 688 | 688 | 9.77% | 12.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 328081 | 2583.96 | 623 | 612 | 126.7 |
| A | 10 | 83 | 88485 | 693.38 | 623 | 612 | 126.7 |
| A | 13 | 6 | 15715 | 119.17 | 623 | 612 | 126.7 |
| B | 5 | 172 | 128191 | 1064.89 | 619 | 603 | 119.8 |
| B | 5 | 200 | 116932 | 970.92 | 619 | 603 | 119.8 |
| B | 5 | 236 | 108120 | 897.37 | 619 | 603 | 119.8 |
| C | 0 | 10 | 580319 | 4140.7 | 602 | 608 | 140.0 |
| C | 15 | 214 | 223215 | 1590.02 | 602 | 608 | 140.0 |
| C | 9 | 187 | 155184 | 1104.09 | 602 | 608 | 140.0 |
| D | 8 | 195 | 2553377 | 18049.86 | 580 | 564 | 141.4 |
| D | 10 | 118 | 418175 | 2952.75 | 580 | 564 | 141.4 |
| D | 12 | 79 | 328125 | 2316.05 | 580 | 564 | 141.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

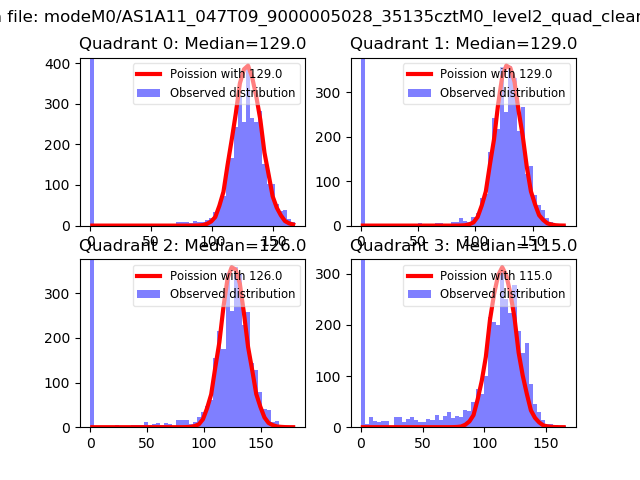

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

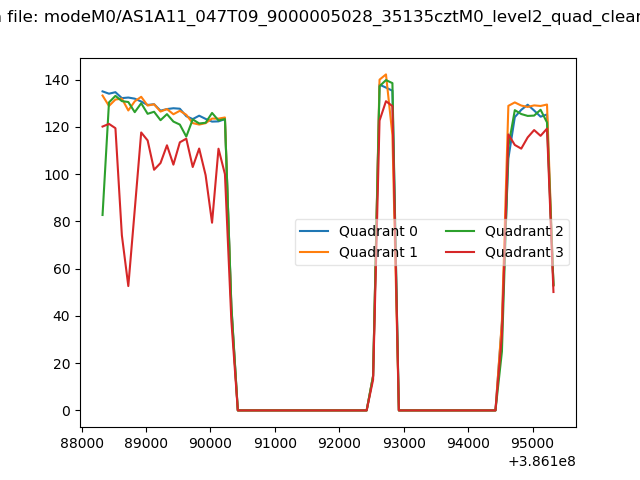

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

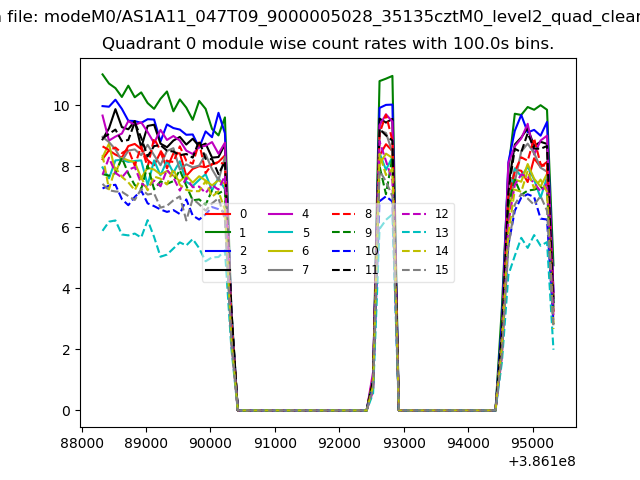

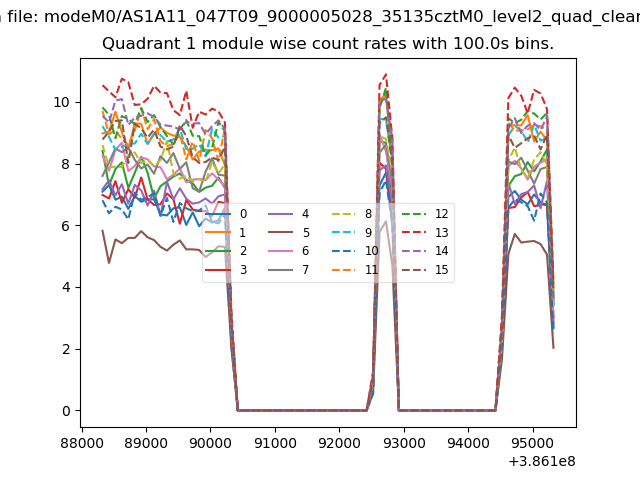

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

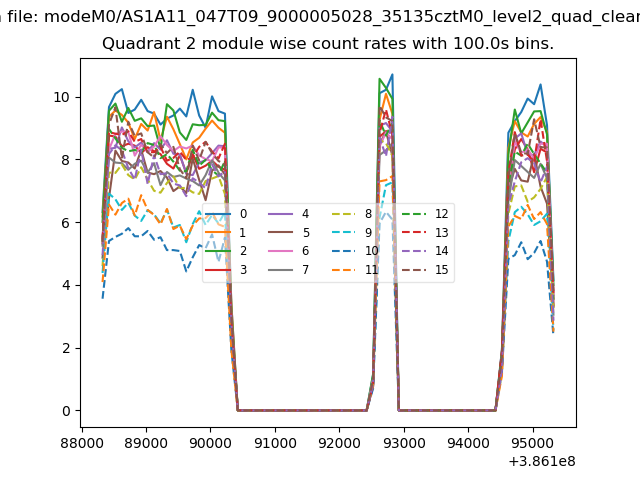

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

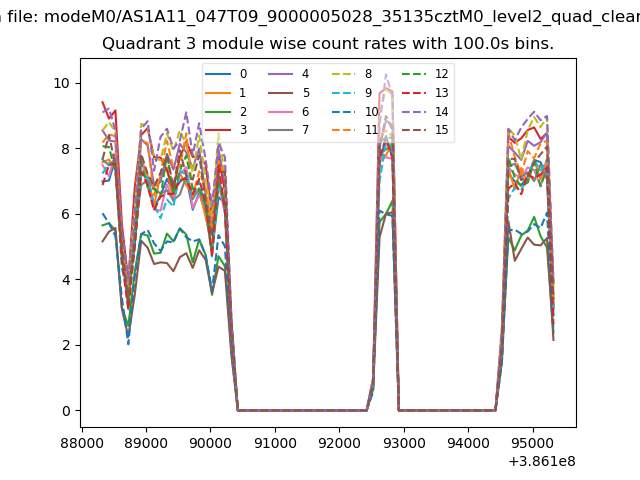

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

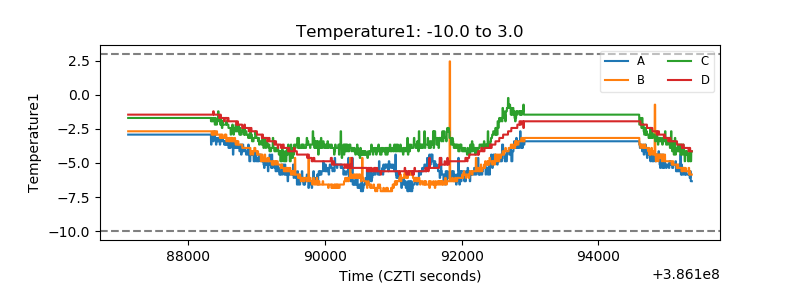

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

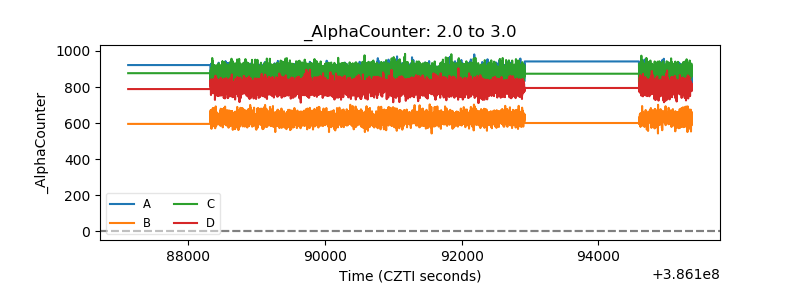

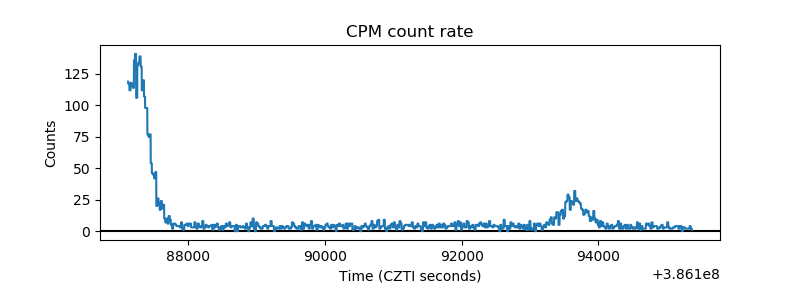

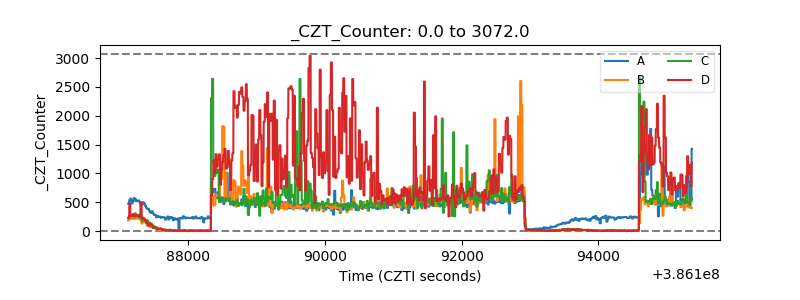

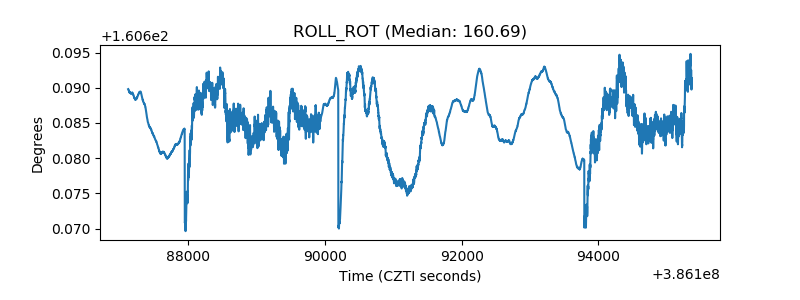

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

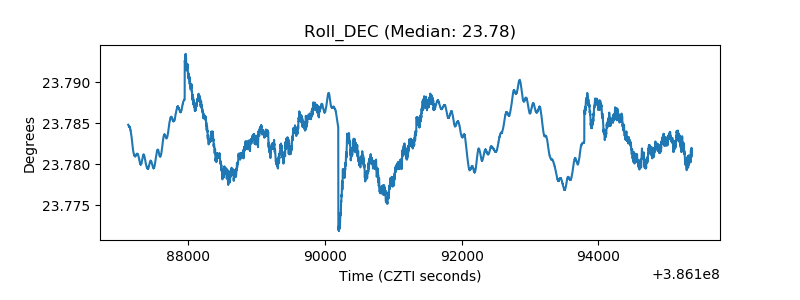

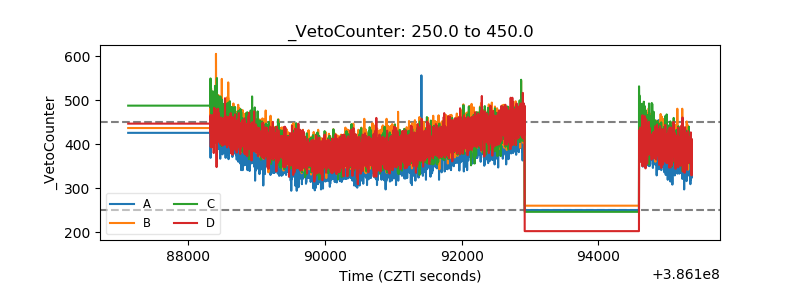

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
