| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_069T01_9000005034_35152cztM0_level2.evt | modeM0/AS1A11_069T01_9000005034_35152cztM0_level2_quad_clean.evt |
| Size (bytes) | 701,899,200 | 66,816,000 |
| Size | 669.4 MB | 63.7 MB |
| Events in quadrant A | 2,925,622 | 443,619 |
| Events in quadrant B | 8,481,125 | 326,692 |
| Events in quadrant C | 3,827,019 | 431,831 |
| Events in quadrant D | 5,613,684 | 396,647 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12593 | 3 |
| B | 0 | 29296 | 2 |
| C | 0 | 15025 | 2 |
| D | 0 | 20949 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6056 | 10 | 0.165125% |
| B | 6056 | 2370 | 39.134742% |
| C | 6056 | 207 | 3.418098% |
| D | 6056 | 500 | 8.256275% |

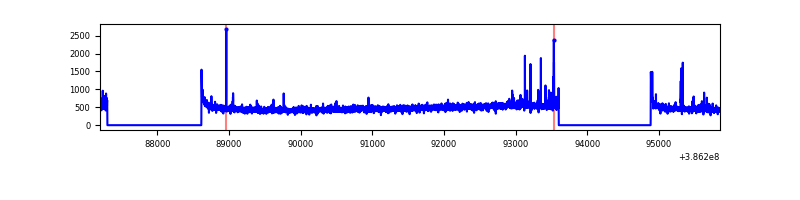

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8652 | 6058 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8652 | 6057 | 1613 | 1613 | 18.64% | 26.63% |  |
| C | 8652 | 6058 | 183 | 183 | 2.12% | 3.02% |  |
| D | 8652 | 6058 | 355 | 355 | 4.10% | 5.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 95577 | 654.41 | 709 | 692 | 145.0 |
| A | 9 | 143 | 54556 | 371.5 | 709 | 692 | 145.0 |
| A | 13 | 6 | 22089 | 147.57 | 709 | 692 | 145.0 |
| B | 5 | 236 | 6003011 | 53372.12 | 578 | 562 | 112.5 |
| B | 5 | 172 | 175826 | 1558.39 | 578 | 562 | 112.5 |
| B | 4 | 232 | 16993 | 146.1 | 578 | 562 | 112.5 |
| C | 0 | 207 | 671569 | 4173.35 | 683 | 689 | 160.8 |
| C | 15 | 214 | 253301 | 1571.43 | 683 | 689 | 160.8 |
| C | 0 | 10 | 204911 | 1270.41 | 683 | 689 | 160.8 |
| D | 8 | 195 | 1715631 | 10367.84 | 672 | 654 | 165.4 |
| D | 12 | 79 | 328595 | 1982.56 | 672 | 654 | 165.4 |
| D | 13 | 249 | 282302 | 1702.69 | 672 | 654 | 165.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

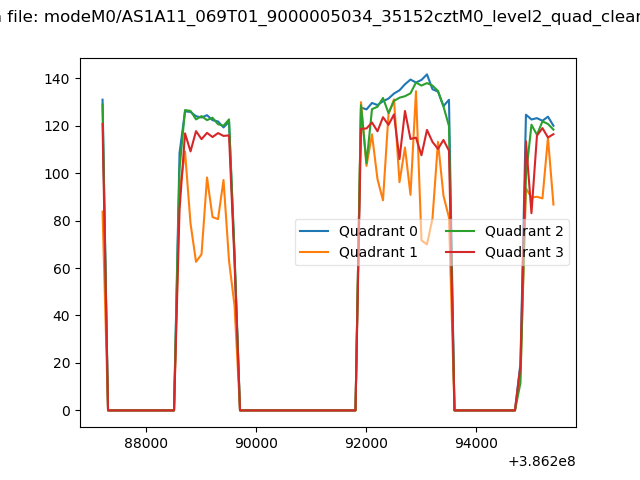

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

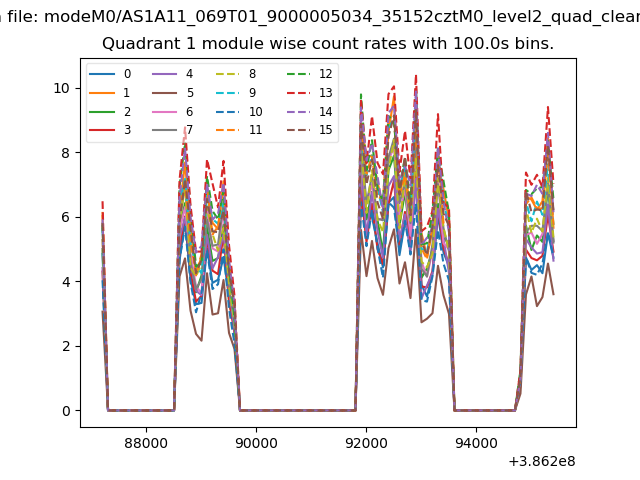

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

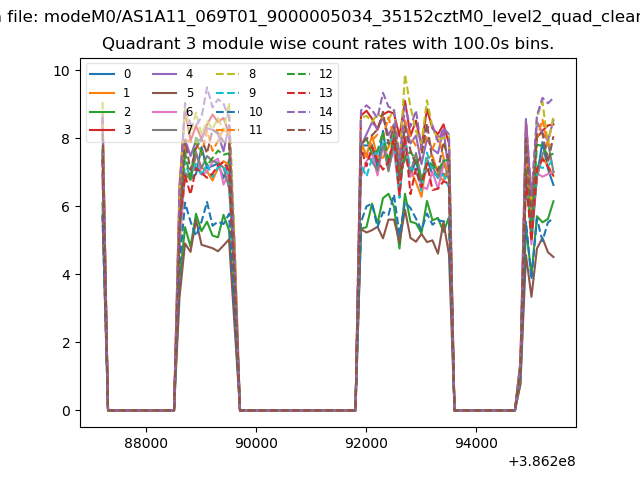

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

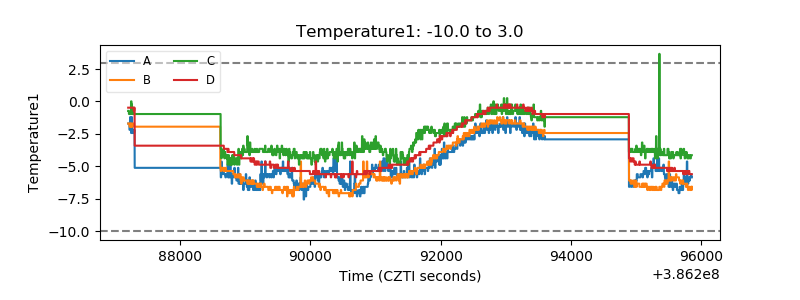

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

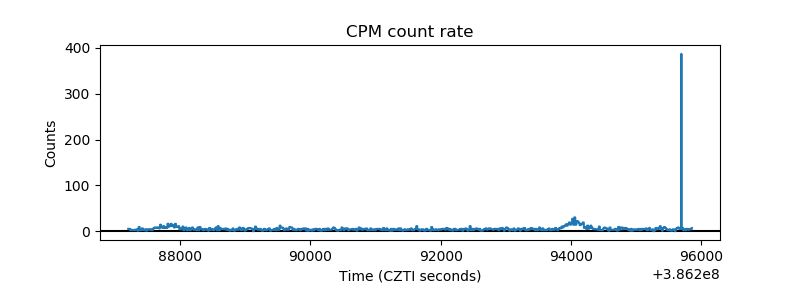

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

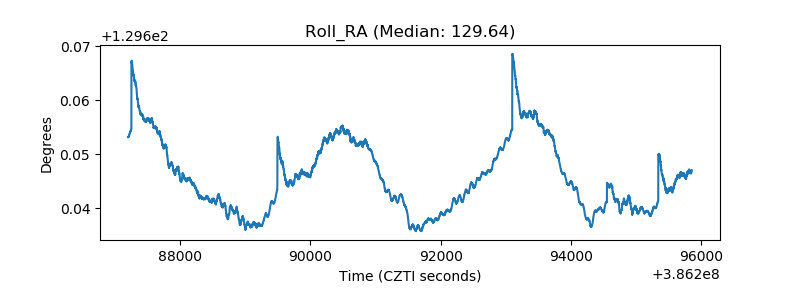

| _Roll_RA |  |

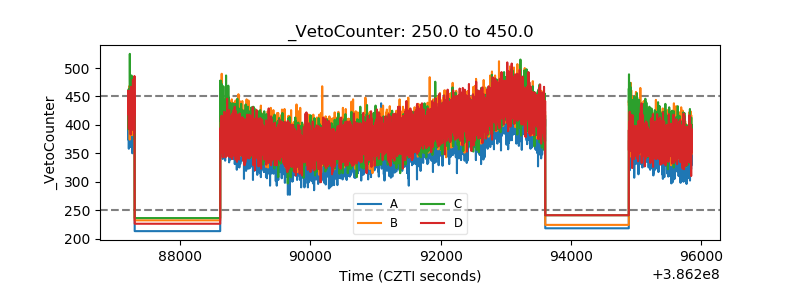

| Veto Counter |  |
