| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000005042_35164cztM0_level2.evt | modeM0/AS1C07_004T01_9000005042_35164cztM0_level2_quad_clean.evt |
| Size (bytes) | 578,638,080 | 66,196,800 |
| Size | 551.8 MB | 63.1 MB |
| Events in quadrant A | 2,980,566 | 424,284 |
| Events in quadrant B | 5,780,653 | 385,719 |
| Events in quadrant C | 2,965,041 | 420,404 |
| Events in quadrant D | 5,434,419 | 397,307 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12225 | 3 |
| B | 0 | 20880 | 2 |
| C | 0 | 12091 | 2 |
| D | 0 | 19929 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5372 | 54 | 1.005212% |
| B | 5372 | 1023 | 19.043187% |
| C | 5372 | 105 | 1.954579% |
| D | 5372 | 465 | 8.655994% |

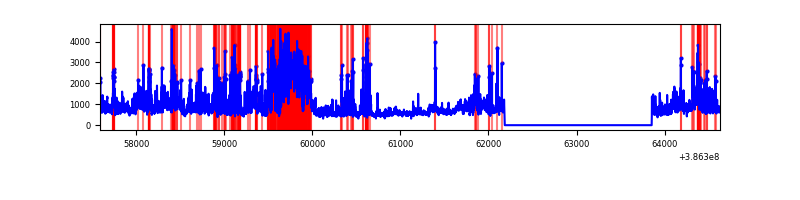

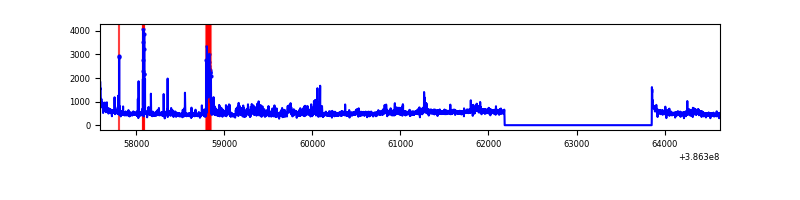

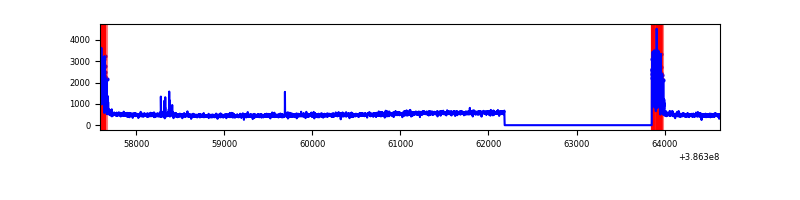

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7045 | 5373 | 38 | 38 | 0.54% | 0.71% |  |
| B | 7045 | 5373 | 654 | 654 | 9.28% | 12.17% |  |
| C | 7045 | 5373 | 96 | 96 | 1.36% | 1.79% |  |
| D | 7045 | 5373 | 466 | 466 | 6.61% | 8.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 347384 | 2743.0 | 630 | 619 | 126.4 |
| A | 10 | 83 | 96868 | 761.35 | 630 | 619 | 126.4 |
| A | 9 | 143 | 56562 | 442.52 | 630 | 619 | 126.4 |
| B | 5 | 236 | 2504065 | 22211.81 | 589 | 576 | 112.7 |
| B | 5 | 172 | 638496 | 5659.84 | 589 | 576 | 112.7 |
| B | 0 | 182 | 171140 | 1513.3 | 589 | 576 | 112.7 |
| C | 0 | 10 | 324870 | 2295.68 | 608 | 612 | 141.2 |
| C | 15 | 214 | 223552 | 1578.37 | 608 | 612 | 141.2 |
| C | 1 | 23 | 16778 | 114.45 | 608 | 612 | 141.2 |
| D | 5 | 223 | 1132076 | 7873.25 | 589 | 572 | 143.7 |
| D | 8 | 195 | 986383 | 6859.49 | 589 | 572 | 143.7 |
| D | 2 | 250 | 349572 | 2428.42 | 589 | 572 | 143.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

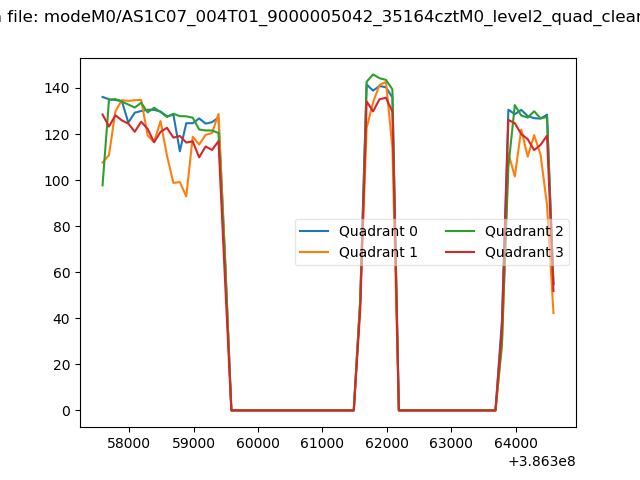

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

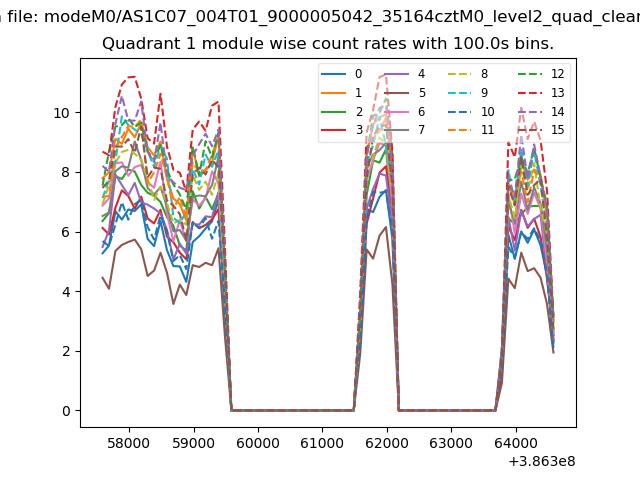

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

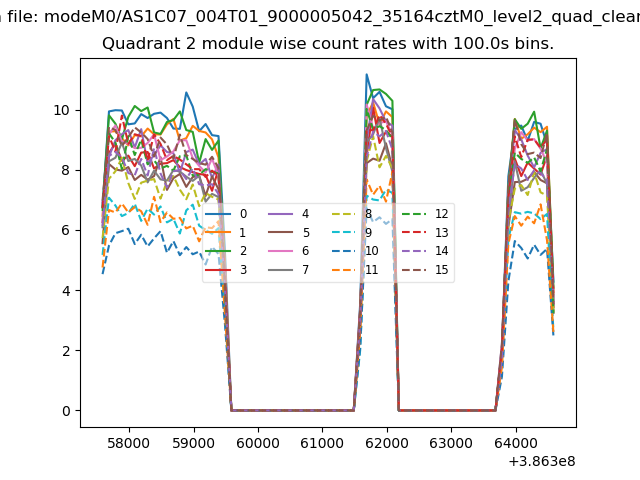

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

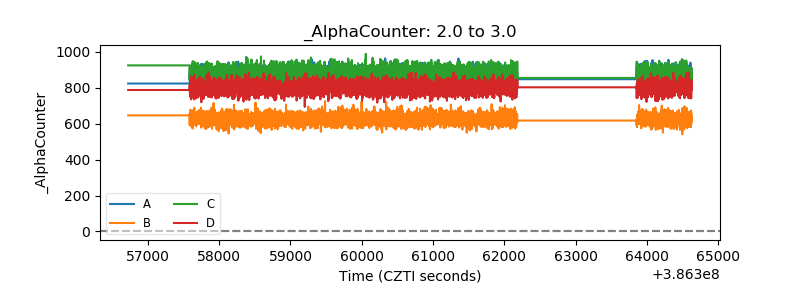

| Alpha Counter |  |

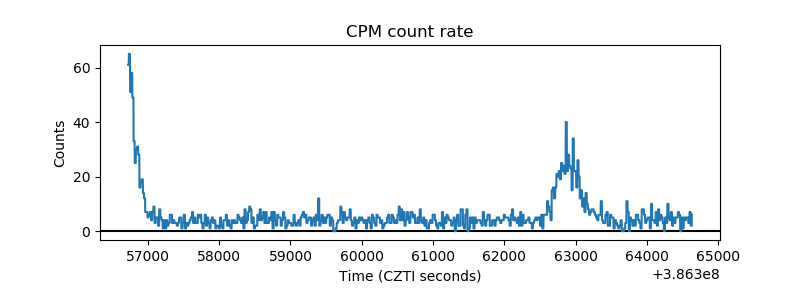

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
