| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000005042_35165cztM0_level2.evt | modeM0/AS1C07_004T01_9000005042_35165cztM0_level2_quad_clean.evt |
| Size (bytes) | 647,997,120 | 69,603,840 |
| Size | 618.0 MB | 66.4 MB |
| Events in quadrant A | 2,757,551 | 458,684 |
| Events in quadrant B | 6,895,621 | 396,181 |
| Events in quadrant C | 3,069,580 | 456,460 |
| Events in quadrant D | 6,520,353 | 400,384 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11755 | 3 |
| B | 0 | 24353 | 2 |
| C | 0 | 12528 | 2 |
| D | 0 | 23421 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5653 | 8 | 0.141518% |
| B | 5653 | 1395 | 24.677163% |
| C | 5653 | 72 | 1.273660% |
| D | 5653 | 637 | 11.268353% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

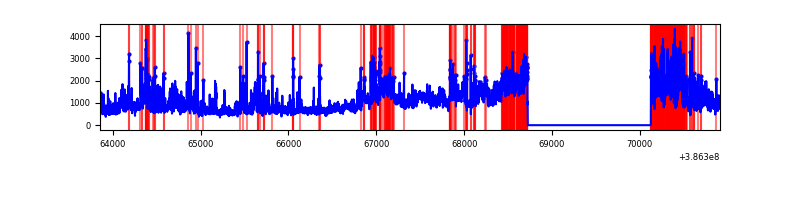

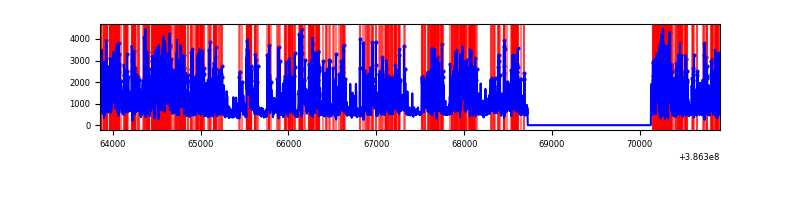

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7056 | 5654 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7056 | 5654 | 936 | 936 | 13.27% | 16.55% |  |
| C | 7056 | 5654 | 66 | 66 | 0.94% | 1.17% |  |
| D | 7056 | 5654 | 490 | 490 | 6.94% | 8.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 96908 | 716.86 | 664 | 651 | 134.3 |
| A | 9 | 143 | 47719 | 350.53 | 664 | 651 | 134.3 |
| A | 15 | 169 | 19008 | 136.71 | 664 | 651 | 134.3 |
| B | 5 | 236 | 3126311 | 27088.42 | 597 | 582 | 115.4 |
| B | 5 | 172 | 728878 | 6311.61 | 597 | 582 | 115.4 |
| B | 0 | 182 | 510731 | 4421.09 | 597 | 582 | 115.4 |
| C | 0 | 10 | 276490 | 1843.41 | 642 | 646 | 149.6 |
| C | 15 | 214 | 236173 | 1573.98 | 642 | 646 | 149.6 |
| C | 0 | 207 | 26682 | 173.99 | 642 | 646 | 149.6 |
| D | 8 | 195 | 1455752 | 9596.59 | 617 | 600 | 151.6 |
| D | 7 | 80 | 1253295 | 8261.41 | 617 | 600 | 151.6 |
| D | 10 | 118 | 427263 | 2813.8 | 617 | 600 | 151.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

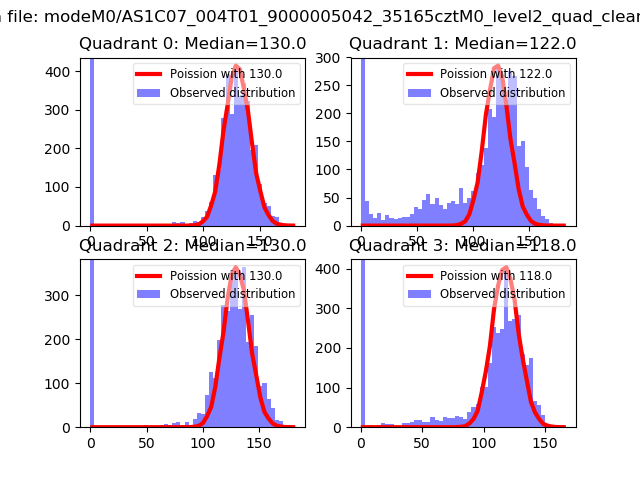

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

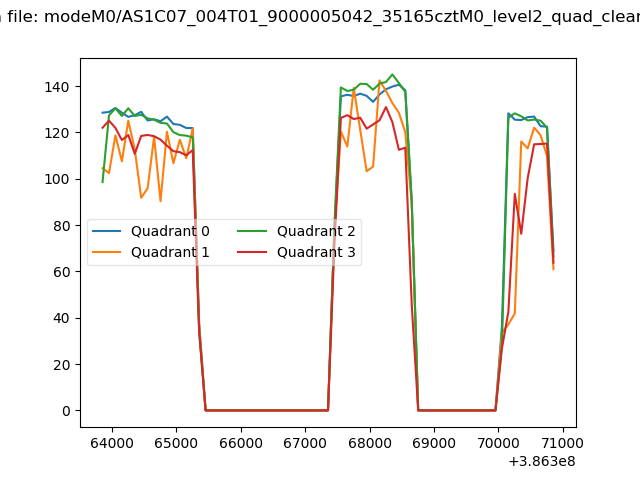

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

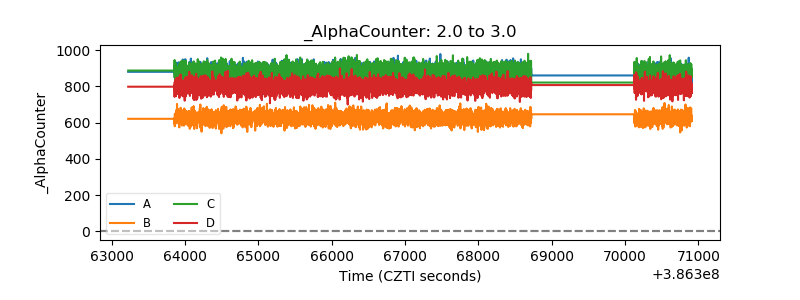

| Alpha Counter |  |

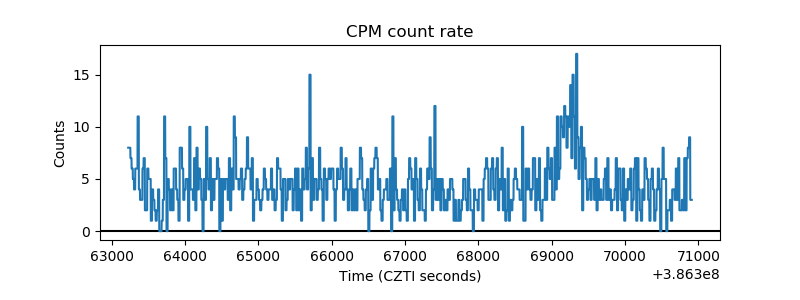

| _CPM_Rate |  |

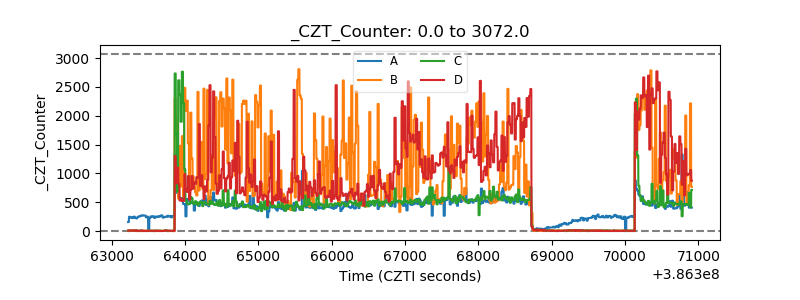

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

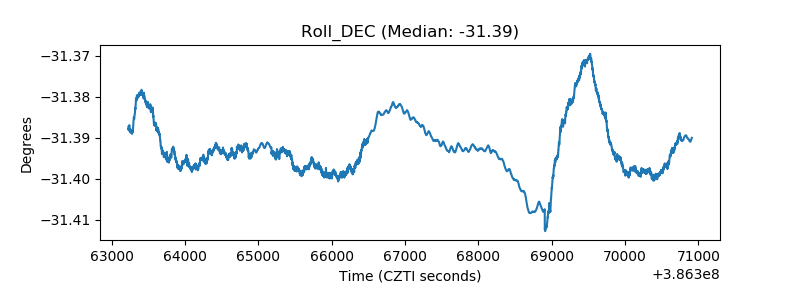

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
