| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000005052_35202cztM0_level2.evt | modeM0/AS1C07_004T01_9000005052_35202cztM0_level2_quad_clean.evt |
| Size (bytes) | 716,457,600 | 74,819,520 |
| Size | 683.3 MB | 71.4 MB |
| Events in quadrant A | 2,671,506 | 521,440 |
| Events in quadrant B | 8,611,058 | 389,145 |
| Events in quadrant C | 3,030,790 | 528,341 |
| Events in quadrant D | 7,037,110 | 464,444 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11069 | 3 |
| B | 0 | 29139 | 2 |
| C | 0 | 12142 | 2 |
| D | 0 | 24526 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5154 | 9 | 0.174622% |
| B | 5154 | 2558 | 49.631354% |
| C | 5154 | 84 | 1.629802% |
| D | 5154 | 519 | 10.069849% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7066 | 5155 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7066 | 5155 | 1854 | 1854 | 26.24% | 35.97% |  |
| C | 7066 | 5155 | 53 | 53 | 0.75% | 1.03% |  |
| D | 7066 | 5155 | 536 | 536 | 7.59% | 10.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 100894 | 767.44 | 656 | 644 | 130.6 |
| A | 13 | 6 | 15296 | 112.16 | 656 | 644 | 130.6 |
| A | 9 | 143 | 10482 | 75.31 | 656 | 644 | 130.6 |
| B | 5 | 236 | 6425406 | 65816.94 | 516 | 505 | 97.6 |
| B | 0 | 190 | 44749 | 453.24 | 516 | 505 | 97.6 |
| B | 5 | 200 | 44416 | 449.83 | 516 | 505 | 97.6 |
| C | 15 | 214 | 220274 | 1508.62 | 634 | 639 | 145.6 |
| C | 0 | 10 | 181140 | 1239.82 | 634 | 639 | 145.6 |
| C | 1 | 23 | 109106 | 745.03 | 634 | 639 | 145.6 |
| D | 8 | 195 | 3611312 | 23813.82 | 621 | 605 | 151.6 |
| D | 10 | 118 | 221594 | 1457.5 | 621 | 605 | 151.6 |
| D | 5 | 223 | 171685 | 1128.33 | 621 | 605 | 151.6 |

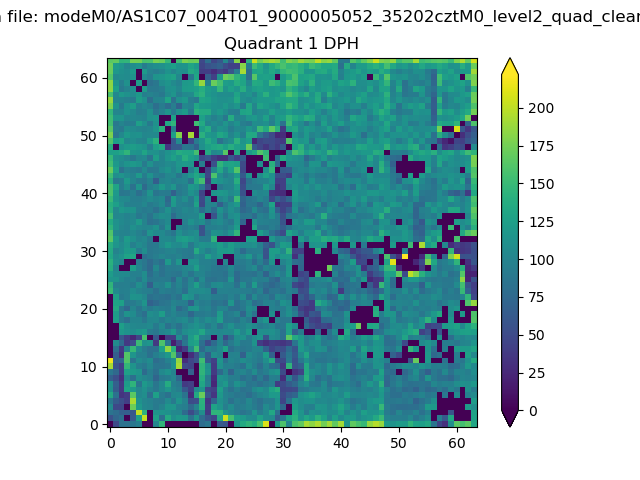

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

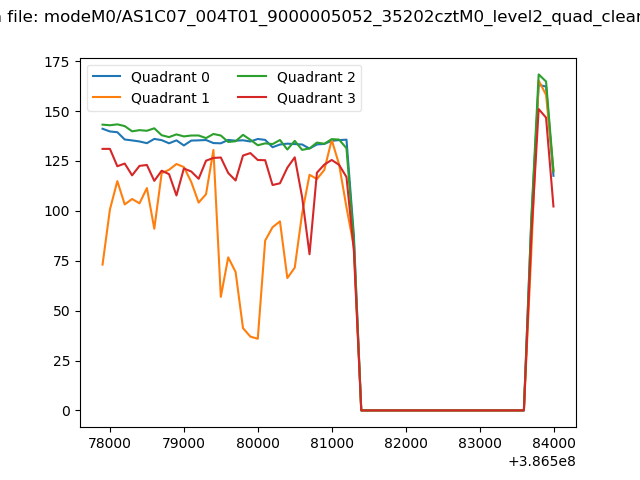

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

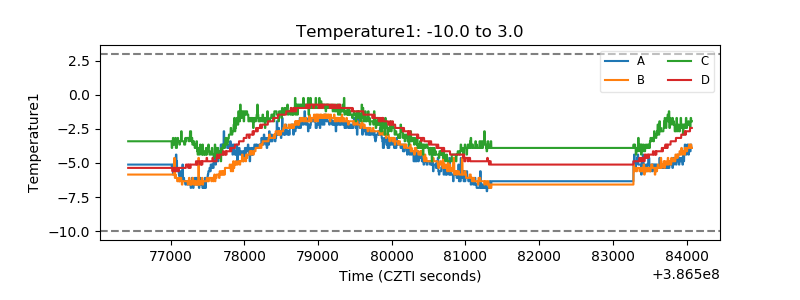

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

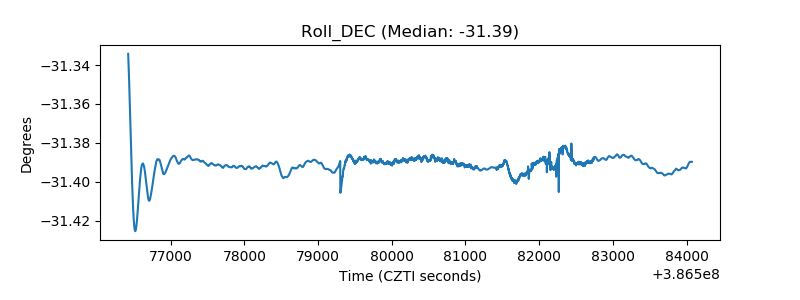

| _Roll_DEC |  |
| _Roll_RA |  |

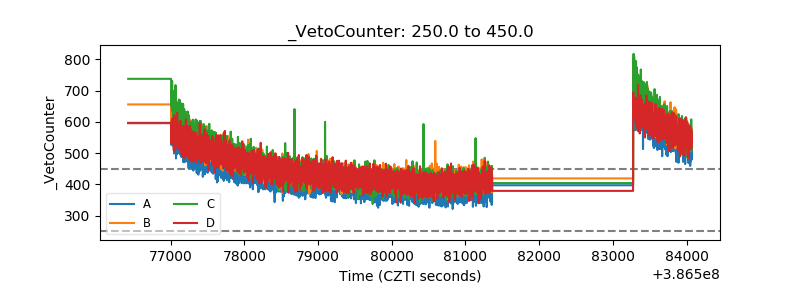

| Veto Counter |  |
