| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000005052_35205cztM0_level2.evt | modeM0/AS1C07_004T01_9000005052_35205cztM0_level2_quad_clean.evt |
| Size (bytes) | 648,120,960 | 91,445,760 |
| Size | 618.1 MB | 87.2 MB |
| Events in quadrant A | 3,407,368 | 632,843 |
| Events in quadrant B | 6,055,115 | 578,947 |
| Events in quadrant C | 3,590,277 | 622,579 |
| Events in quadrant D | 6,229,638 | 574,641 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13313 | 2 |
| B | 0 | 21524 | 1 |
| C | 0 | 13720 | 1 |
| D | 0 | 22113 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5127 | 187 | 3.647357% |
| B | 5127 | 1171 | 22.839867% |
| C | 5127 | 213 | 4.154476% |
| D | 5127 | 595 | 11.605227% |

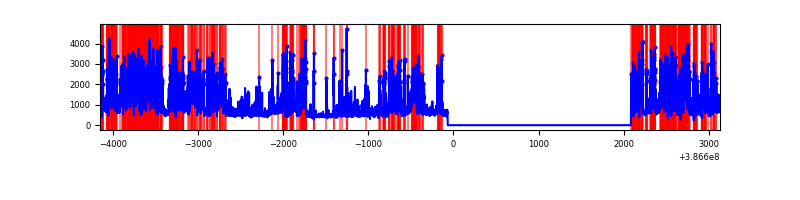

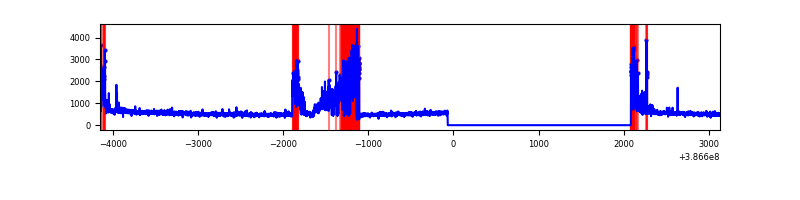

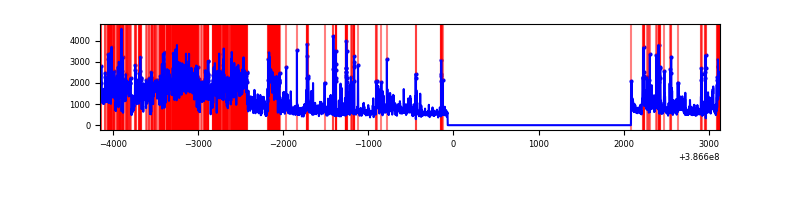

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7280 | 5128 | 163 | 163 | 2.24% | 3.18% |  |
| B | 7280 | 5128 | 799 | 799 | 10.98% | 15.58% |  |
| C | 7280 | 5128 | 212 | 212 | 2.91% | 4.13% |  |
| D | 7280 | 5128 | 752 | 752 | 10.33% | 14.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 16 | 559388 | 4367.45 | 642 | 632 | 127.9 |
| A | 14 | 250 | 241957 | 1886.29 | 642 | 632 | 127.9 |
| A | 10 | 83 | 88373 | 685.82 | 642 | 632 | 127.9 |
| B | 5 | 236 | 3677488 | 33238.42 | 584 | 571 | 110.6 |
| B | 3 | 112 | 28902 | 256.11 | 584 | 571 | 110.6 |
| B | 5 | 172 | 27775 | 245.92 | 584 | 571 | 110.6 |
| C | 9 | 69 | 716895 | 5131.2 | 609 | 615 | 139.6 |
| C | 0 | 10 | 215101 | 1536.51 | 609 | 615 | 139.6 |
| C | 15 | 214 | 213673 | 1526.28 | 609 | 615 | 139.6 |
| D | 8 | 195 | 2690352 | 18163.61 | 608 | 593 | 148.1 |
| D | 7 | 80 | 354560 | 2390.3 | 608 | 593 | 148.1 |
| D | 13 | 249 | 220343 | 1483.94 | 608 | 593 | 148.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

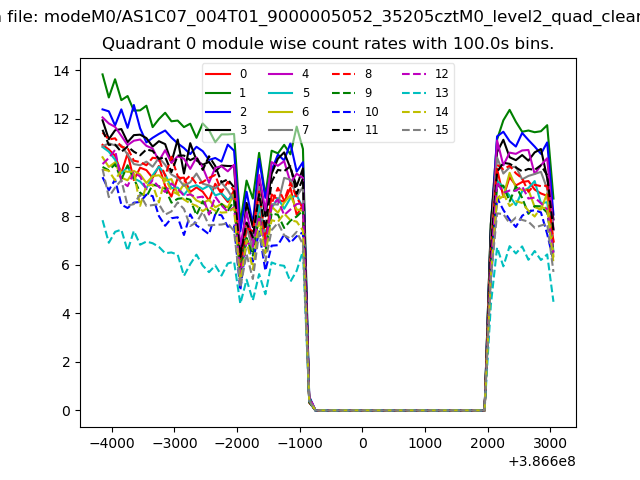

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

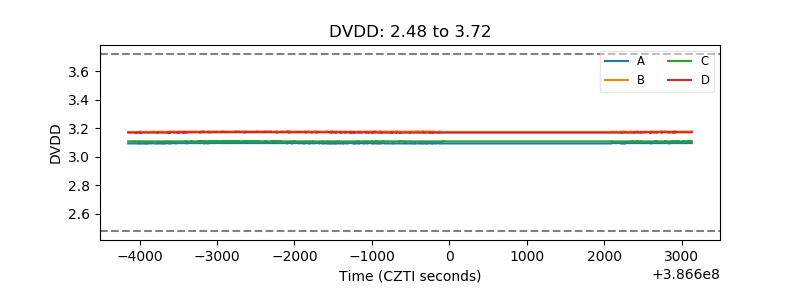

| D_VDD |  |

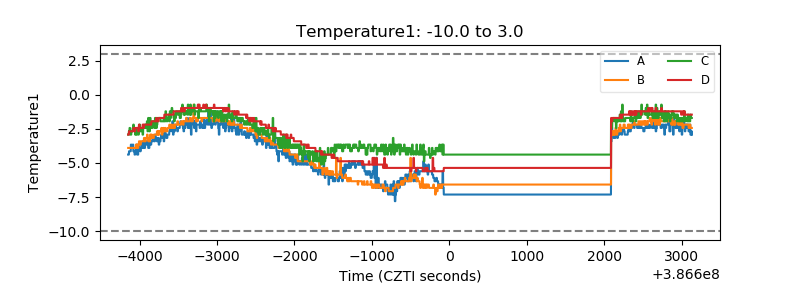

| Temperature 1 |  |

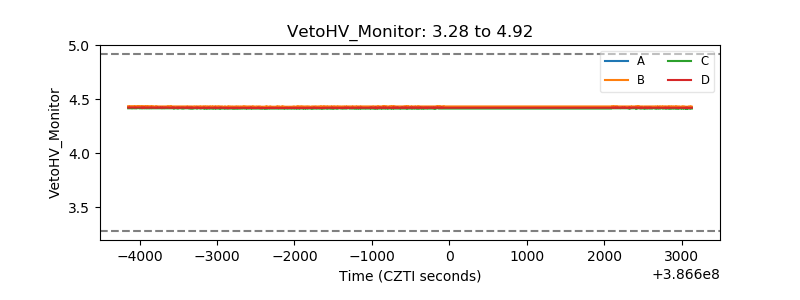

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

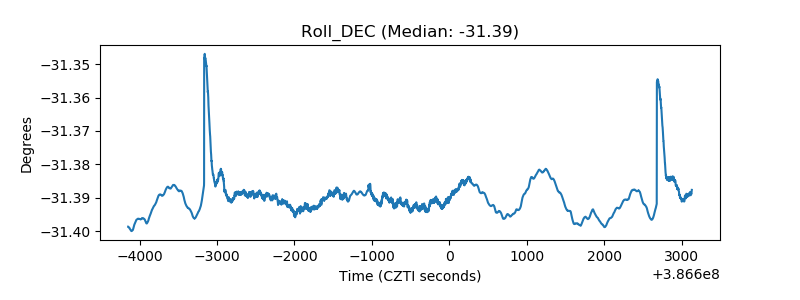

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
