| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000005052_35220cztM0_level2.evt | modeM0/AS1C07_004T01_9000005052_35220cztM0_level2_quad_clean.evt |
| Size (bytes) | 760,881,600 | 85,659,840 |
| Size | 725.6 MB | 81.7 MB |
| Events in quadrant A | 2,667,449 | 628,847 |
| Events in quadrant B | 9,088,078 | 455,550 |
| Events in quadrant C | 3,119,134 | 612,337 |
| Events in quadrant D | 7,815,279 | 528,402 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11143 | 3 |
| B | 0 | 30608 | 2 |
| C | 0 | 12446 | 2 |
| D | 0 | 26906 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5248 | 7 | 0.133384% |
| B | 5248 | 2741 | 52.229421% |
| C | 5248 | 101 | 1.924543% |
| D | 5248 | 1325 | 25.247713% |

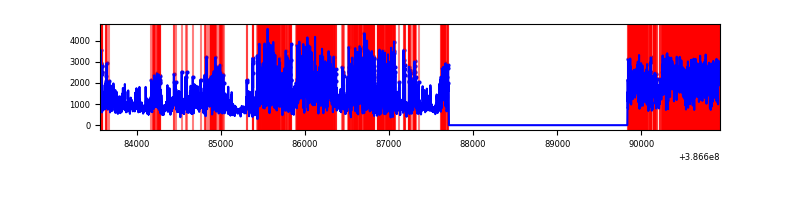

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7371 | 5249 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7371 | 5248 | 2039 | 2039 | 27.66% | 38.85% |  |
| C | 7371 | 5249 | 69 | 69 | 0.94% | 1.31% |  |
| D | 7370 | 5248 | 1302 | 1302 | 17.67% | 24.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 101371 | 763.56 | 652 | 639 | 131.9 |
| A | 13 | 6 | 23881 | 176.18 | 652 | 639 | 131.9 |
| A | 9 | 143 | 10877 | 77.61 | 652 | 639 | 131.9 |
| B | 5 | 236 | 6073253 | 64156.37 | 498 | 488 | 94.7 |
| B | 5 | 172 | 860738 | 9088.2 | 498 | 488 | 94.7 |
| B | 4 | 232 | 87954 | 924.04 | 498 | 488 | 94.7 |
| C | 0 | 10 | 266771 | 1880.88 | 614 | 621 | 141.5 |
| C | 15 | 214 | 223135 | 1572.5 | 614 | 621 | 141.5 |
| C | 9 | 187 | 108744 | 764.1 | 614 | 621 | 141.5 |
| D | 8 | 195 | 3173746 | 22539.97 | 584 | 569 | 140.8 |
| D | 2 | 250 | 1276886 | 9066.04 | 584 | 569 | 140.8 |
| D | 1 | 47 | 338308 | 2399.05 | 584 | 569 | 140.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

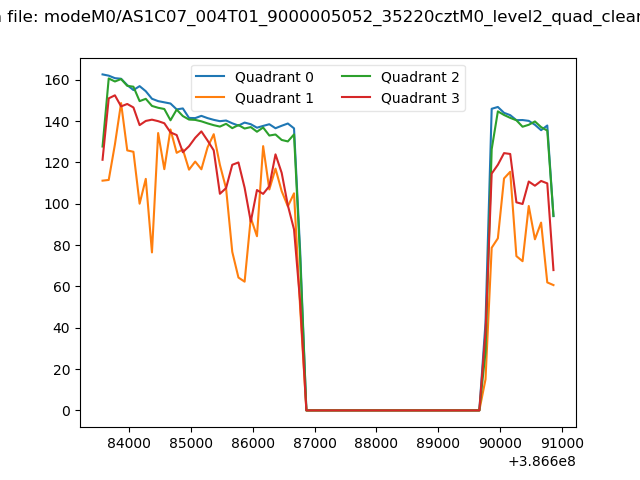

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

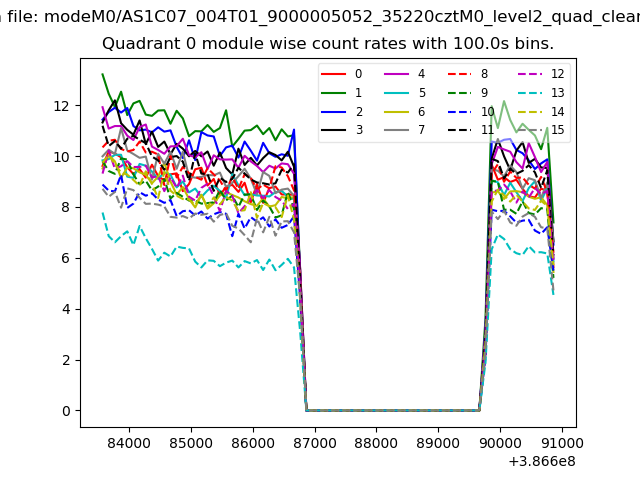

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

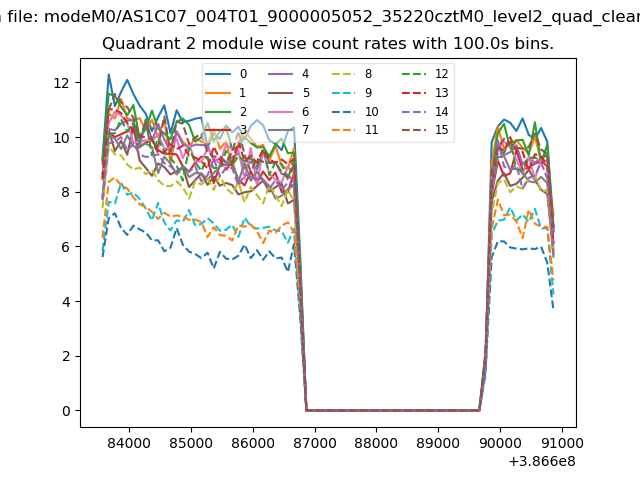

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

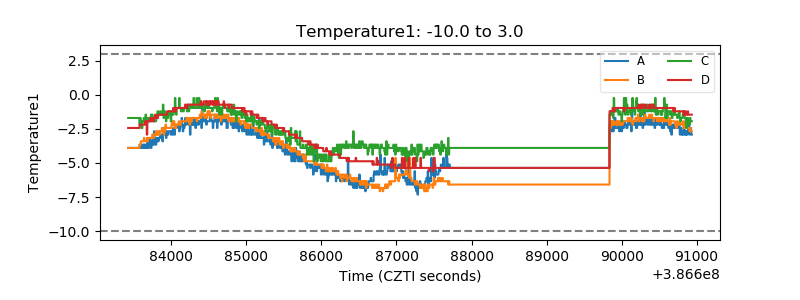

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

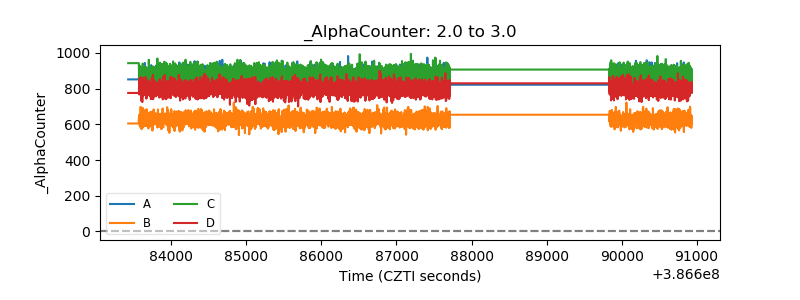

| Alpha Counter |  |
| _CPM_Rate |  |

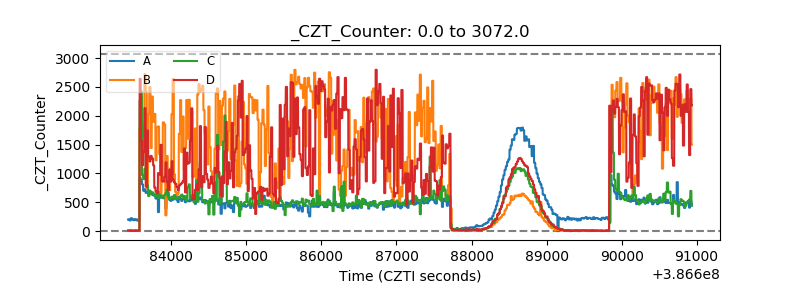

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

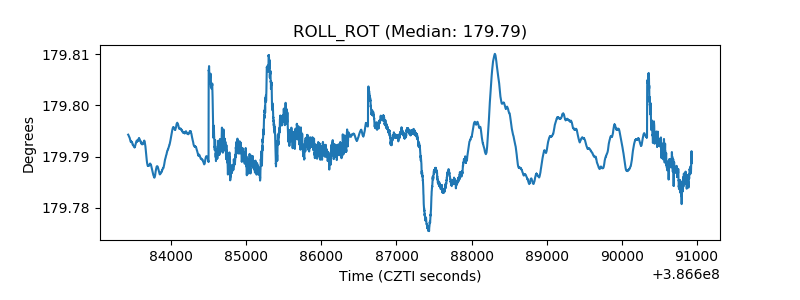

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
