| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000005052_35224cztM0_level2.evt | modeM0/AS1C07_004T01_9000005052_35224cztM0_level2_quad_clean.evt |
| Size (bytes) | 814,164,480 | 71,118,720 |
| Size | 776.4 MB | 67.8 MB |
| Events in quadrant A | 2,800,128 | 482,025 |
| Events in quadrant B | 8,545,678 | 366,670 |
| Events in quadrant C | 3,061,849 | 482,009 |
| Events in quadrant D | 9,848,904 | 405,685 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12230 | 3 |
| B | 0 | 29456 | 2 |
| C | 0 | 12735 | 2 |
| D | 0 | 33376 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5945 | 6 | 0.100925% |
| B | 5945 | 2202 | 37.039529% |
| C | 5945 | 43 | 0.723297% |
| D | 5945 | 1537 | 25.853659% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7227 | 5946 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7227 | 5946 | 1656 | 1656 | 22.91% | 27.85% |  |
| C | 7227 | 5946 | 29 | 29 | 0.40% | 0.49% |  |
| D | 7227 | 5946 | 1722 | 1722 | 23.83% | 28.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 106076 | 767.14 | 685 | 673 | 137.4 |
| A | 9 | 143 | 19599 | 137.75 | 685 | 673 | 137.4 |
| A | 13 | 6 | 13115 | 90.56 | 685 | 673 | 137.4 |
| B | 5 | 236 | 4878434 | 43311.34 | 579 | 563 | 112.6 |
| B | 5 | 172 | 1305173 | 11583.83 | 579 | 563 | 112.6 |
| B | 5 | 200 | 21644 | 187.18 | 579 | 563 | 112.6 |
| C | 15 | 214 | 248751 | 1601.22 | 665 | 670 | 154.9 |
| C | 0 | 10 | 141260 | 907.43 | 665 | 670 | 154.9 |
| C | 1 | 23 | 39050 | 247.72 | 665 | 670 | 154.9 |
| D | 8 | 195 | 5231815 | 34695.81 | 616 | 598 | 150.8 |
| D | 12 | 6 | 719293 | 4766.71 | 616 | 598 | 150.8 |
| D | 7 | 80 | 490880 | 3251.77 | 616 | 598 | 150.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

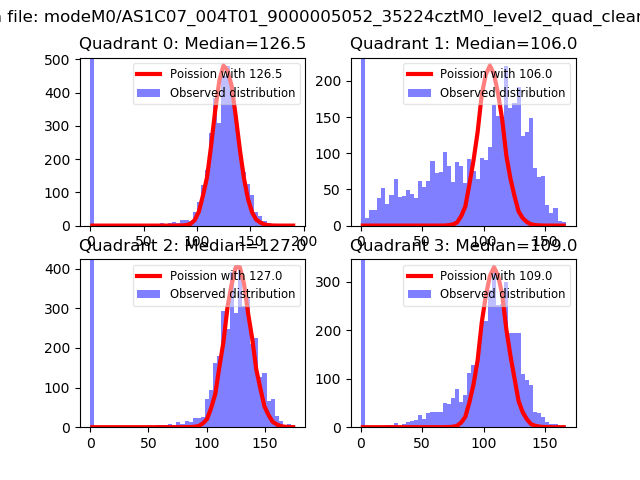

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

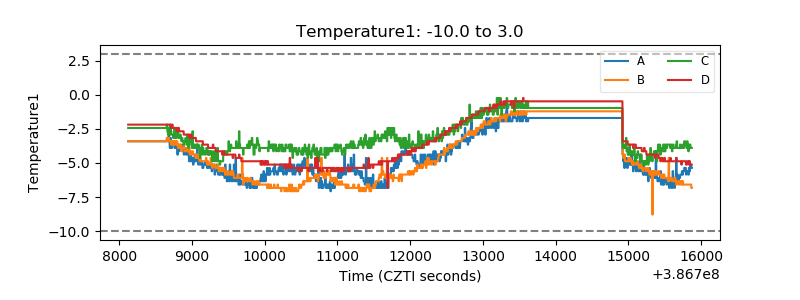

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

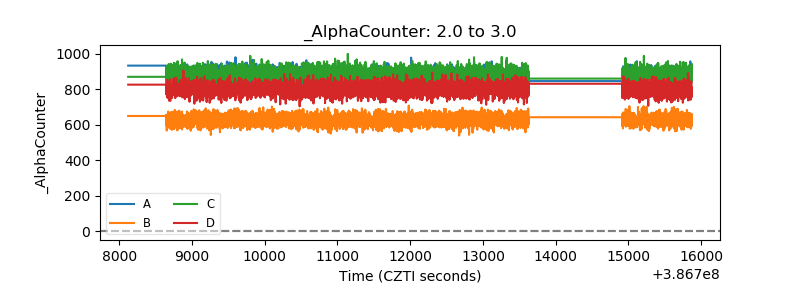

| Alpha Counter |  |
| _CPM_Rate |  |

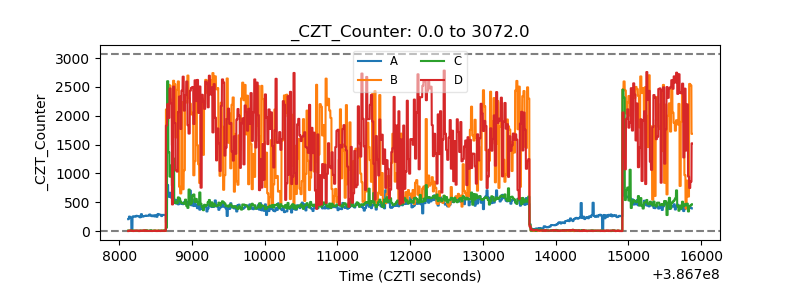

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

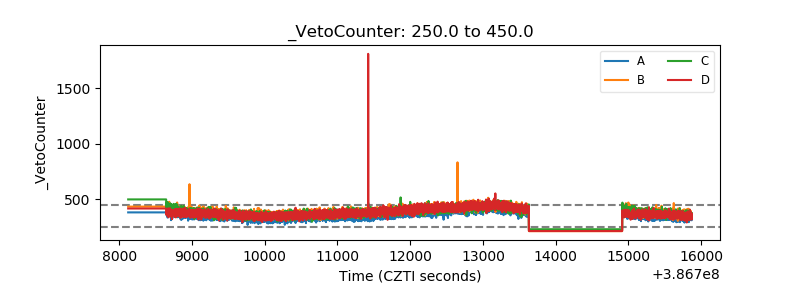

| Veto Counter |  |
