| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000005052_35234cztM0_level2.evt | modeM0/AS1C07_004T01_9000005052_35234cztM0_level2_quad_clean.evt |
| Size (bytes) | 741,375,360 | 87,678,720 |
| Size | 707.0 MB | 83.6 MB |
| Events in quadrant A | 2,579,414 | 650,638 |
| Events in quadrant B | 8,332,390 | 481,265 |
| Events in quadrant C | 3,227,794 | 636,939 |
| Events in quadrant D | 7,980,619 | 538,309 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10645 | 3 |
| B | 0 | 28233 | 2 |
| C | 0 | 12652 | 2 |
| D | 0 | 27196 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4944 | 5 | 0.101133% |
| B | 4944 | 2400 | 48.543689% |
| C | 4944 | 113 | 2.285599% |
| D | 4944 | 997 | 20.165858% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7097 | 4945 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7097 | 4945 | 1835 | 1835 | 25.86% | 37.11% |  |
| C | 7097 | 4945 | 74 | 74 | 1.04% | 1.50% |  |
| D | 7096 | 4944 | 1146 | 1146 | 16.15% | 23.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 93339 | 743.71 | 632 | 624 | 124.7 |
| A | 13 | 6 | 14014 | 107.41 | 632 | 624 | 124.7 |
| A | 7 | 191 | 10324 | 77.81 | 632 | 624 | 124.7 |
| B | 5 | 236 | 4925029 | 52822.65 | 492 | 482 | 93.2 |
| B | 5 | 172 | 1357348 | 14554.28 | 492 | 482 | 93.2 |
| B | 5 | 255 | 40505 | 429.3 | 492 | 482 | 93.2 |
| C | 10 | 49 | 358262 | 2606.02 | 596 | 602 | 137.2 |
| C | 0 | 10 | 277263 | 2015.84 | 596 | 602 | 137.2 |
| C | 15 | 214 | 210475 | 1529.2 | 596 | 602 | 137.2 |
| D | 8 | 195 | 4024184 | 29589.16 | 563 | 551 | 136.0 |
| D | 10 | 234 | 330504 | 2426.42 | 563 | 551 | 136.0 |
| D | 1 | 47 | 271665 | 1993.73 | 563 | 551 | 136.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

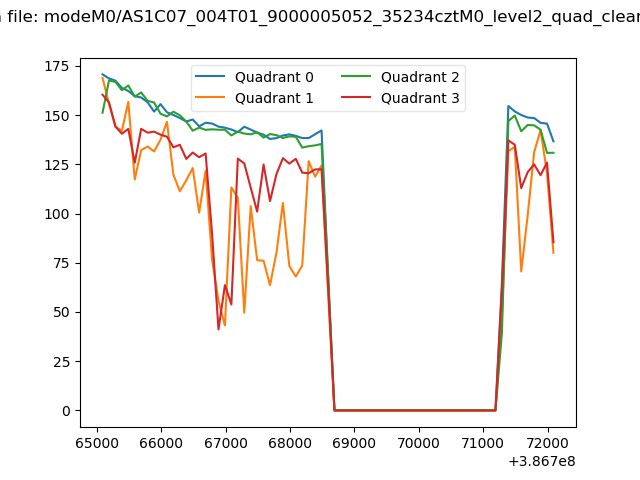

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

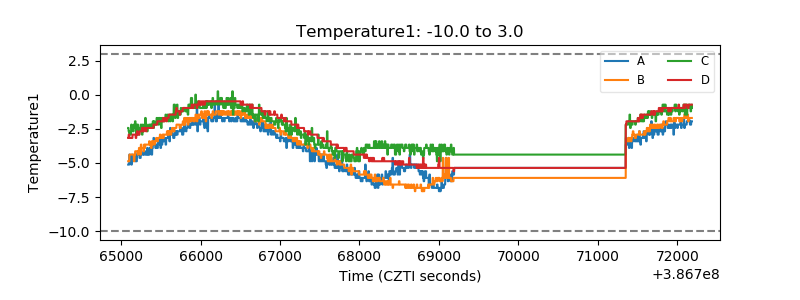

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

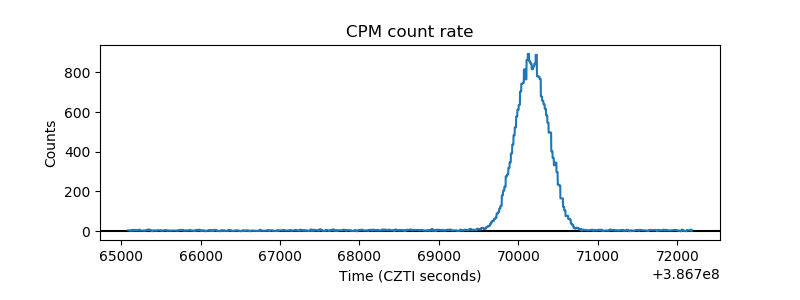

| _CPM_Rate |  |

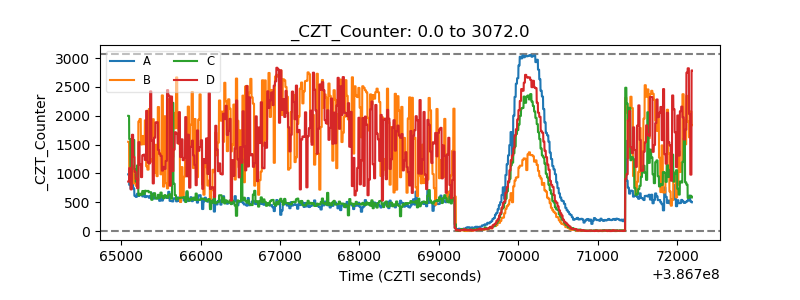

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
