| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000005052_35243cztM0_level2.evt | modeM0/AS1C07_004T01_9000005052_35243cztM0_level2_quad_clean.evt |
| Size (bytes) | 603,230,400 | 54,054,720 |
| Size | 575.3 MB | 51.6 MB |
| Events in quadrant A | 2,668,673 | 340,662 |
| Events in quadrant B | 6,492,322 | 291,099 |
| Events in quadrant C | 3,105,268 | 346,174 |
| Events in quadrant D | 5,633,758 | 276,278 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11291 | 3 |
| B | 0 | 23056 | 2 |
| C | 0 | 12311 | 2 |
| D | 0 | 20579 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5448 | 11 | 0.201909% |
| B | 5448 | 1306 | 23.972100% |
| C | 5448 | 94 | 1.725404% |
| D | 5448 | 786 | 14.427313% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

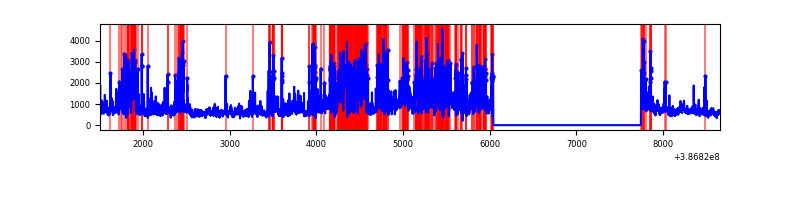

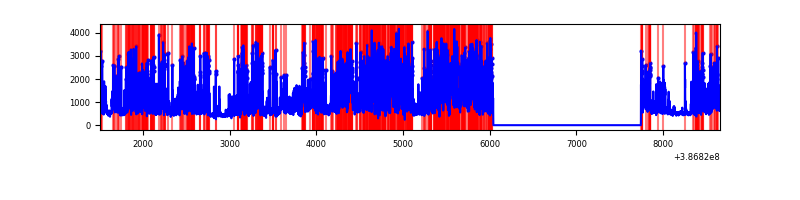

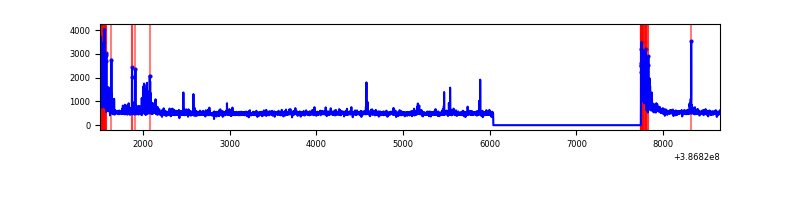

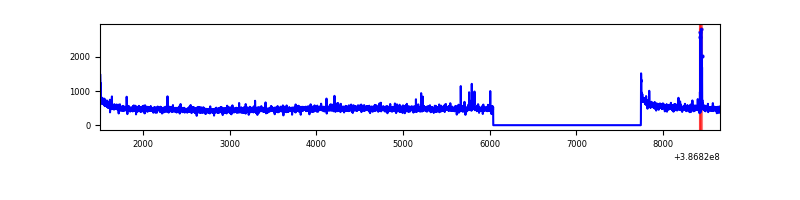

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7152 | 5449 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7152 | 5449 | 850 | 850 | 11.88% | 15.60% |  |
| C | 7152 | 5449 | 55 | 55 | 0.77% | 1.01% |  |
| D | 7152 | 5449 | 584 | 584 | 8.17% | 10.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 97325 | 746.82 | 647 | 635 | 129.5 |
| A | 13 | 6 | 22360 | 167.8 | 647 | 635 | 129.5 |
| A | 9 | 143 | 21650 | 162.32 | 647 | 635 | 129.5 |
| B | 5 | 236 | 3697094 | 32514.94 | 592 | 576 | 113.7 |
| B | 5 | 172 | 392210 | 3444.85 | 592 | 576 | 113.7 |
| B | 0 | 183 | 25527 | 219.47 | 592 | 576 | 113.7 |
| C | 0 | 10 | 366832 | 2514.08 | 626 | 630 | 145.7 |
| C | 15 | 214 | 230102 | 1575.39 | 626 | 630 | 145.7 |
| C | 15 | 208 | 42972 | 290.69 | 626 | 630 | 145.7 |
| D | 7 | 80 | 1632822 | 11440.05 | 582 | 565 | 142.7 |
| D | 8 | 195 | 828160 | 5800.39 | 582 | 565 | 142.7 |
| D | 1 | 47 | 320437 | 2241.9 | 582 | 565 | 142.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

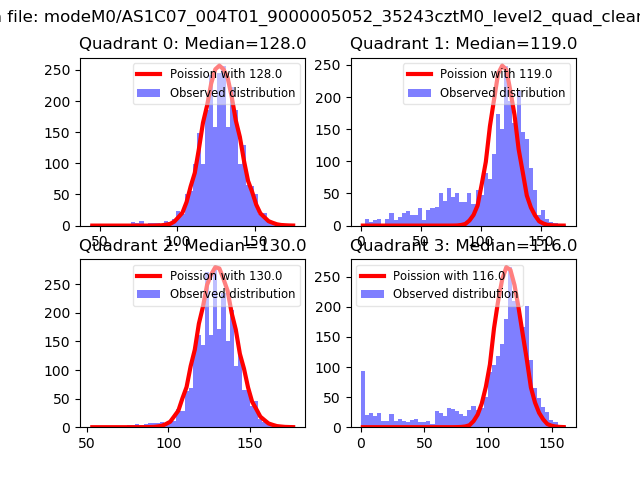

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

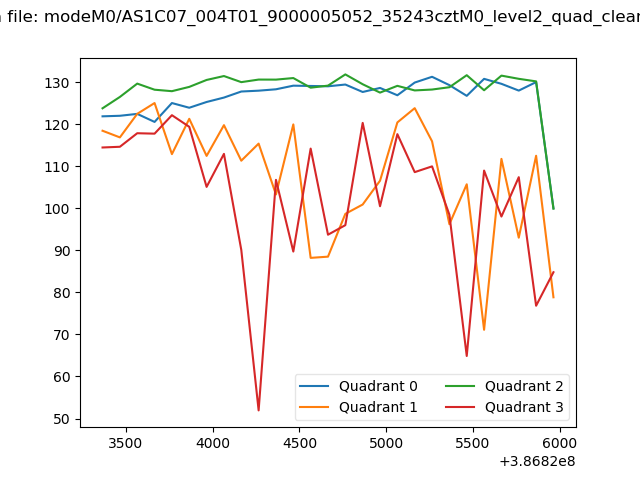

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

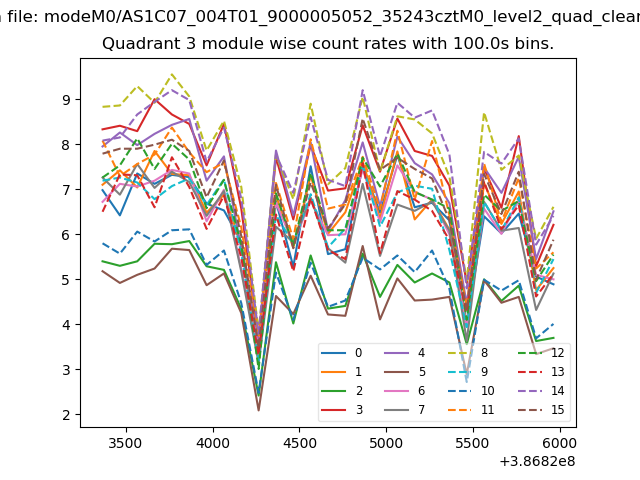

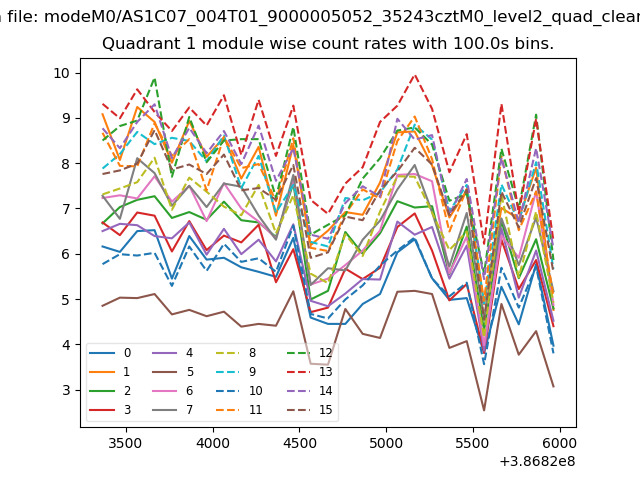

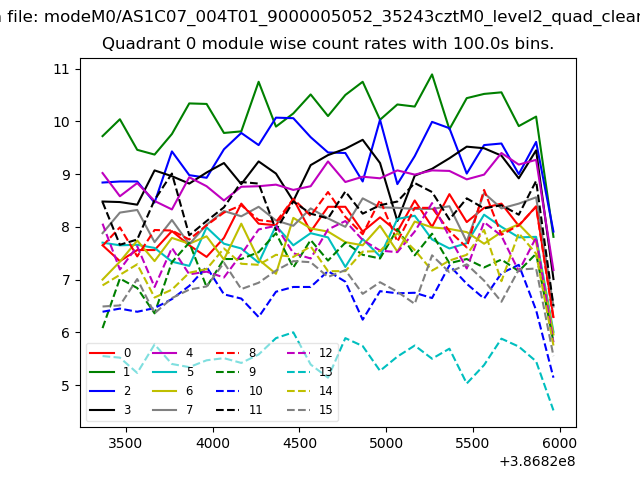

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

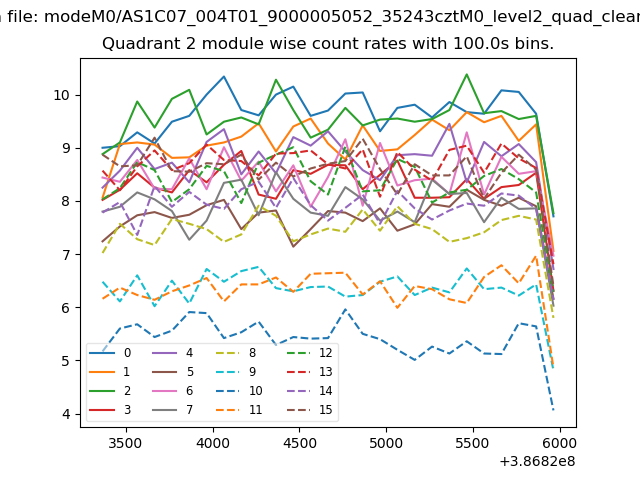

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

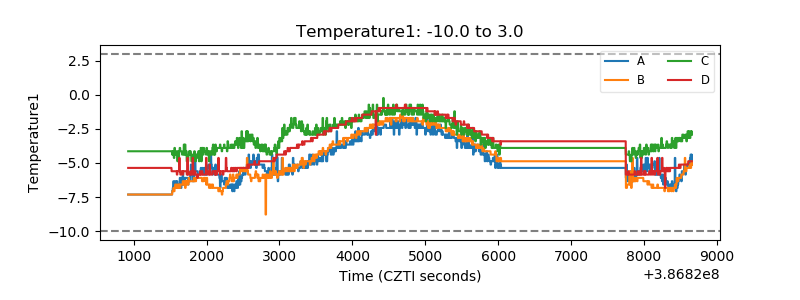

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

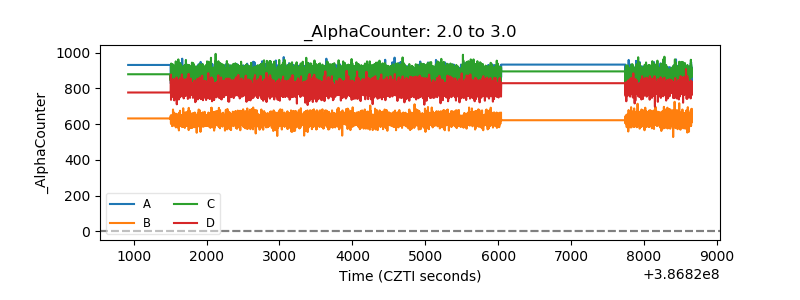

| Alpha Counter |  |

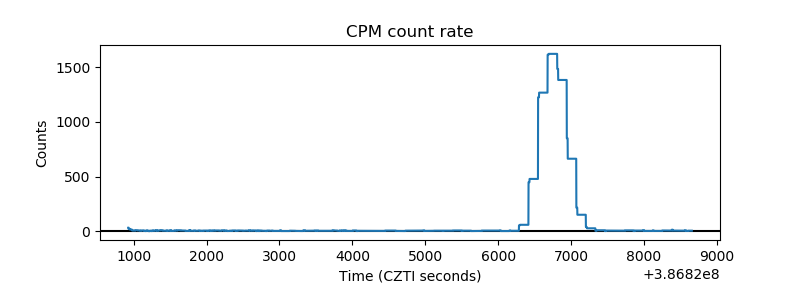

| _CPM_Rate |  |

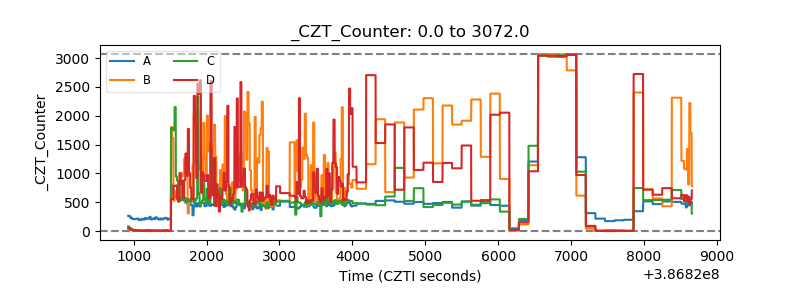

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

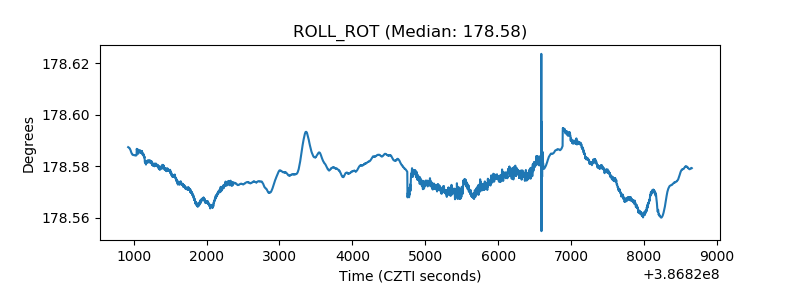

| _ROLL_ROT |  |

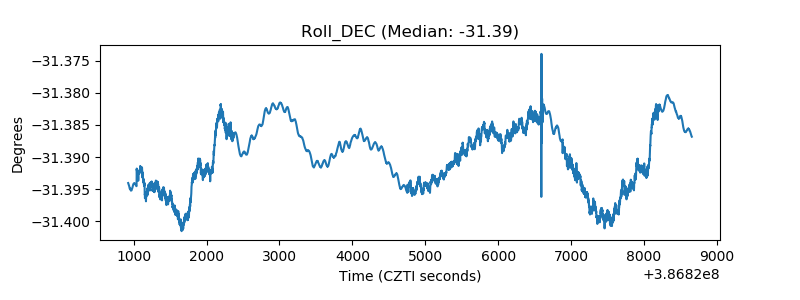

| _Roll_DEC |  |

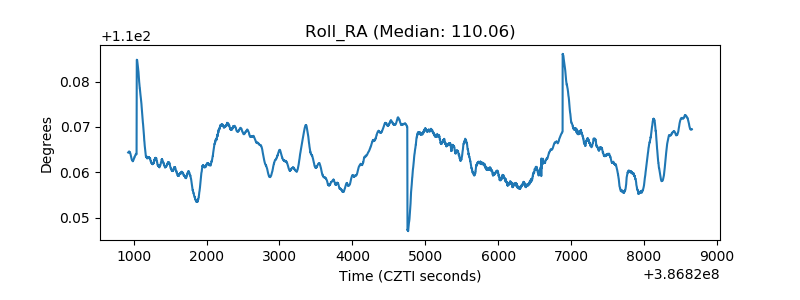

| _Roll_RA |  |

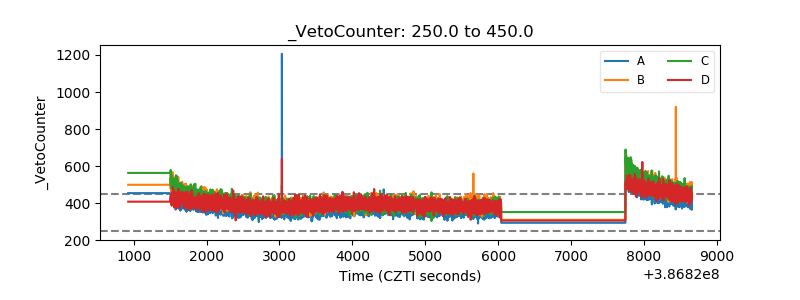

| Veto Counter |  |
