| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000005052_35245cztM0_level2.evt | modeM0/AS1C07_004T01_9000005052_35245cztM0_level2_quad_clean.evt |
| Size (bytes) | 584,824,320 | 61,367,040 |
| Size | 557.7 MB | 58.5 MB |
| Events in quadrant A | 2,728,851 | 391,493 |
| Events in quadrant B | 6,442,552 | 346,621 |
| Events in quadrant C | 3,038,149 | 400,752 |
| Events in quadrant D | 5,140,762 | 344,836 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11321 | 3 |
| B | 0 | 22778 | 2 |
| C | 0 | 12090 | 2 |
| D | 0 | 19016 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 35 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5332 | 11 | 0.206302% |
| B | 5332 | 1278 | 23.968492% |
| C | 5332 | 89 | 1.669167% |
| D | 5332 | 593 | 11.121530% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8889 | 5334 | 5 | 5 | 0.06% | 0.09% |  |
| B | 8889 | 5333 | 863 | 863 | 9.71% | 16.18% |  |
| C | 8889 | 5334 | 52 | 52 | 0.58% | 0.97% |  |
| D | 8889 | 5334 | 507 | 507 | 5.70% | 9.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 98617 | 741.43 | 662 | 651 | 132.1 |
| A | 9 | 143 | 47381 | 353.66 | 662 | 651 | 132.1 |
| A | 7 | 3 | 10853 | 77.21 | 662 | 651 | 132.1 |
| B | 5 | 236 | 3029616 | 26609.22 | 603 | 590 | 113.8 |
| B | 5 | 172 | 968563 | 8503.4 | 603 | 590 | 113.8 |
| B | 4 | 232 | 30648 | 264.05 | 603 | 590 | 113.8 |
| C | 0 | 10 | 276899 | 1868.68 | 641 | 647 | 147.8 |
| C | 15 | 214 | 227306 | 1533.21 | 641 | 647 | 147.8 |
| C | 15 | 208 | 22884 | 150.42 | 641 | 647 | 147.8 |
| D | 7 | 80 | 1191241 | 7949.6 | 620 | 604 | 149.8 |
| D | 8 | 195 | 718884 | 4795.78 | 620 | 604 | 149.8 |
| D | 1 | 47 | 252882 | 1684.4 | 620 | 604 | 149.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

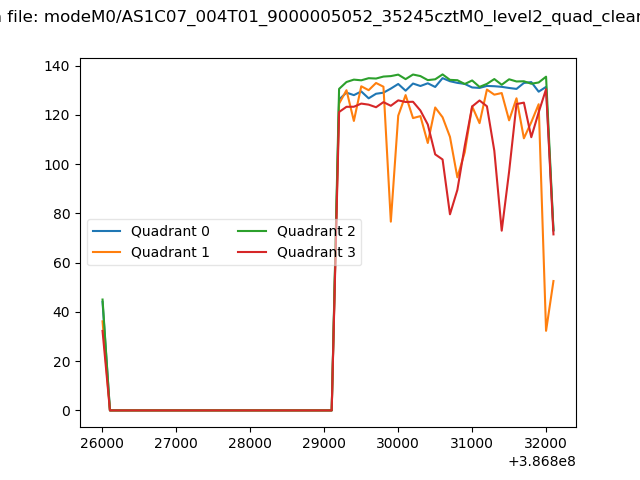

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

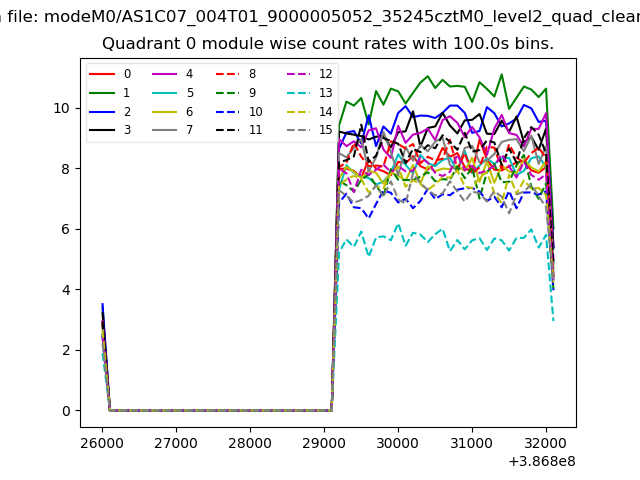

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

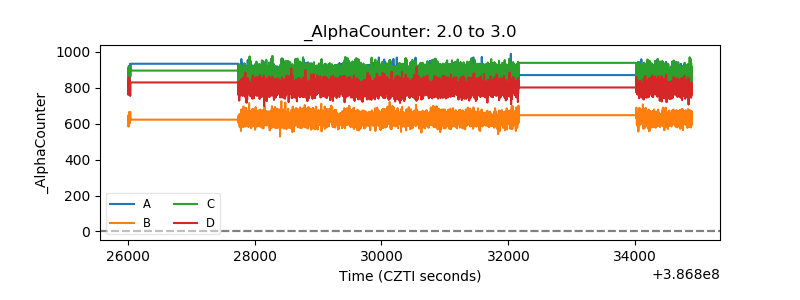

| Alpha Counter |  |
| _CPM_Rate |  |

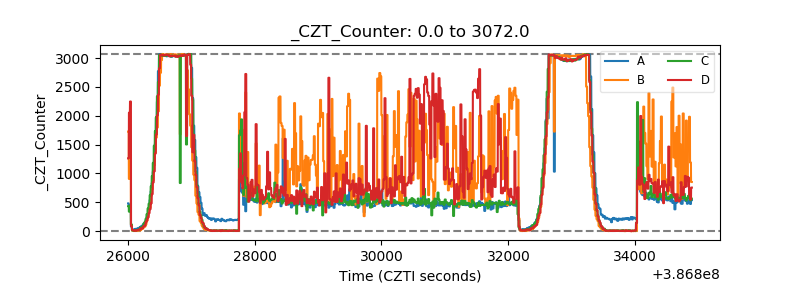

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

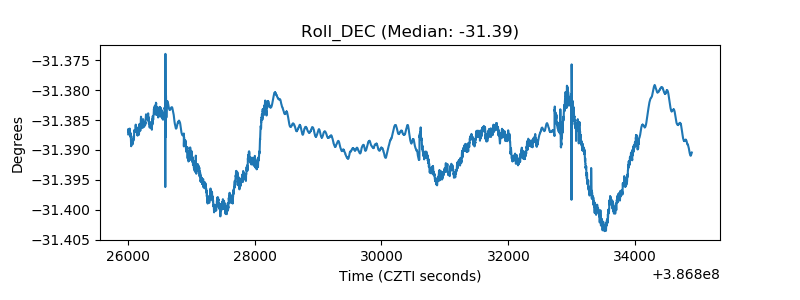

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
