| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000005052_35246cztM0_level2.evt | modeM0/AS1C07_004T01_9000005052_35246cztM0_level2_quad_clean.evt |
| Size (bytes) | 645,056,640 | 71,841,600 |
| Size | 615.2 MB | 68.5 MB |
| Events in quadrant A | 3,242,540 | 476,506 |
| Events in quadrant B | 6,356,402 | 423,442 |
| Events in quadrant C | 3,036,335 | 500,923 |
| Events in quadrant D | 6,554,644 | 415,013 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12736 | 3 |
| B | 0 | 22496 | 2 |
| C | 0 | 12112 | 2 |
| D | 0 | 23087 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5121 | 187 | 3.651631% |
| B | 5121 | 1350 | 26.362039% |
| C | 5121 | 108 | 2.108963% |
| D | 5121 | 867 | 16.930287% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7094 | 5122 | 157 | 157 | 2.21% | 3.07% |  |
| B | 7094 | 5122 | 957 | 957 | 13.49% | 18.68% |  |
| C | 7094 | 5122 | 71 | 71 | 1.00% | 1.39% |  |
| D | 7094 | 5121 | 825 | 825 | 11.63% | 16.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 3 | 577149 | 4392.37 | 660 | 650 | 131.3 |
| A | 10 | 83 | 96698 | 731.79 | 660 | 650 | 131.3 |
| A | 13 | 6 | 10385 | 74.17 | 660 | 650 | 131.3 |
| B | 5 | 236 | 2961249 | 26748.5 | 590 | 579 | 110.7 |
| B | 5 | 172 | 1010733 | 9126.35 | 590 | 579 | 110.7 |
| B | 0 | 245 | 24099 | 212.49 | 590 | 579 | 110.7 |
| C | 0 | 10 | 294509 | 1991.21 | 645 | 651 | 147.6 |
| C | 15 | 214 | 217468 | 1469.17 | 645 | 651 | 147.6 |
| C | 14 | 67 | 4931 | 29.0 | 645 | 651 | 147.6 |
| D | 7 | 80 | 1735849 | 11830.54 | 607 | 592 | 146.7 |
| D | 8 | 195 | 1487325 | 10136.17 | 607 | 592 | 146.7 |
| D | 13 | 249 | 215707 | 1466.6 | 607 | 592 | 146.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

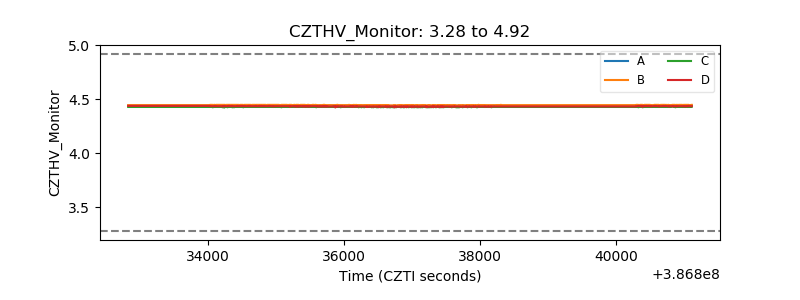

| CZT HV Monitor |  |
| D_VDD |  |

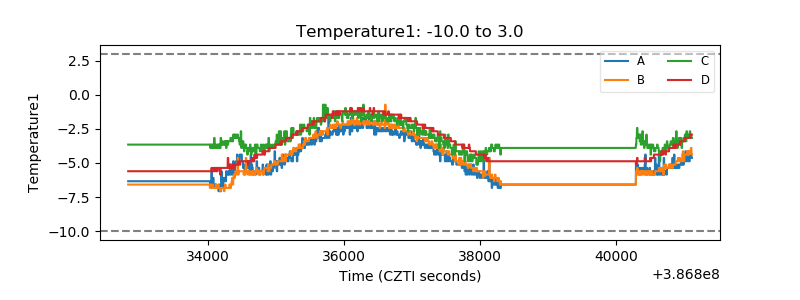

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

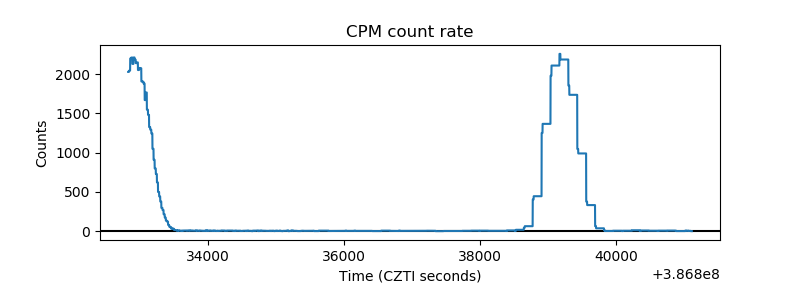

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

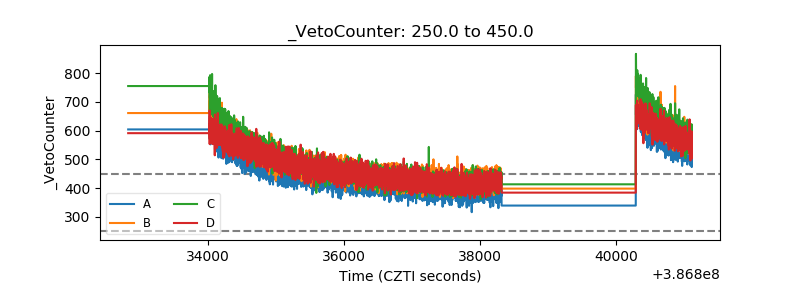

| Veto Counter |  |
