| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T09_9000005054_35255cztM0_level2.evt | modeM0/AS1A11_047T09_9000005054_35255cztM0_level2_quad_clean.evt |
| Size (bytes) | 391,962,240 | 31,049,280 |
| Size | 373.8 MB | 29.6 MB |
| Events in quadrant A | 1,573,380 | 192,853 |
| Events in quadrant B | 5,625,276 | 136,609 |
| Events in quadrant C | 1,780,670 | 186,830 |
| Events in quadrant D | 2,651,207 | 173,306 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7164 | 2 |
| B | 0 | 19197 | 1 |
| C | 0 | 7502 | 1 |
| D | 0 | 10226 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70 | 0 |
| B | 0 | 70 | 0 |
| C | 0 | 70 | 0 |
| D | 0 | 70 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3524 | 2 | 0.056754% |
| B | 3524 | 1514 | 42.962543% |
| C | 3524 | 45 | 1.276958% |
| D | 3524 | 180 | 5.107832% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3524 | 3524 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3524 | 3524 | 1206 | 1206 | 34.22% | 34.22% |  |
| C | 3524 | 3524 | 39 | 39 | 1.11% | 1.11% |  |
| D | 3524 | 3524 | 167 | 167 | 4.74% | 4.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 55007 | 686.47 | 385 | 378 | 79.6 |
| A | 13 | 6 | 18070 | 222.32 | 385 | 378 | 79.6 |
| A | 13 | 254 | 6018 | 70.87 | 385 | 378 | 79.6 |
| B | 5 | 236 | 3952685 | 63911.97 | 316 | 308 | 61.8 |
| B | 5 | 172 | 377705 | 6102.7 | 316 | 308 | 61.8 |
| B | 4 | 232 | 27989 | 447.62 | 316 | 308 | 61.8 |
| C | 0 | 10 | 155011 | 1751.69 | 376 | 381 | 88.3 |
| C | 15 | 214 | 147038 | 1661.37 | 376 | 381 | 88.3 |
| C | 14 | 67 | 6874 | 73.55 | 376 | 381 | 88.3 |
| D | 8 | 195 | 432180 | 4734.61 | 368 | 359 | 91.2 |
| D | 7 | 80 | 315715 | 3457.65 | 368 | 359 | 91.2 |
| D | 10 | 118 | 249424 | 2730.82 | 368 | 359 | 91.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

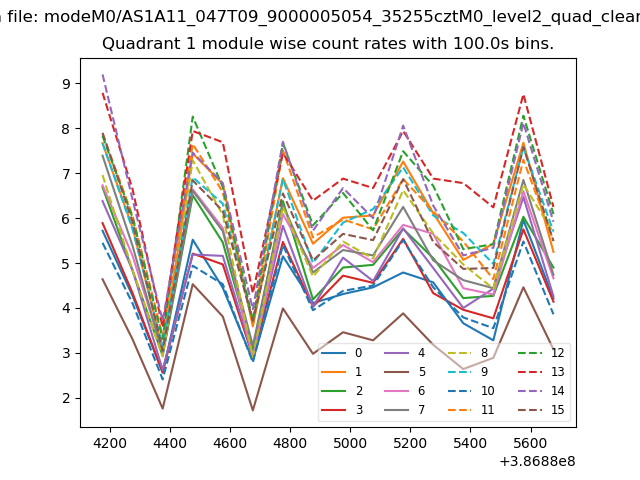

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

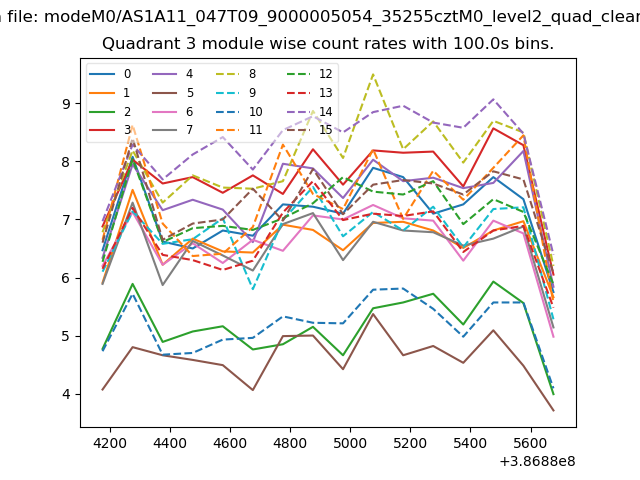

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

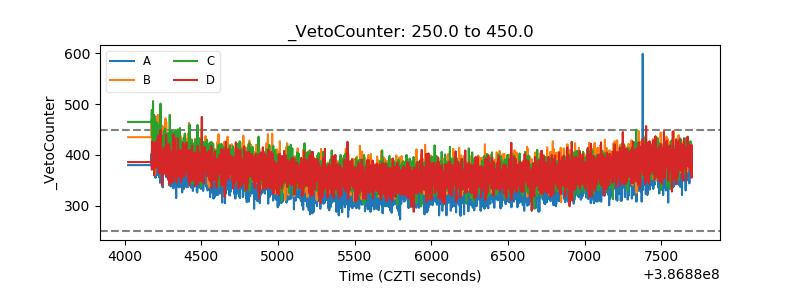

| Veto Counter |  |
