| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T09_9000005054_35263cztM0_level2.evt | modeM0/AS1A11_047T09_9000005054_35263cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,065,600 | 89,205,120 |
| Size | 558.9 MB | 85.1 MB |
| Events in quadrant A | 2,622,541 | 652,033 |
| Events in quadrant B | 8,274,269 | 487,312 |
| Events in quadrant C | 3,048,654 | 620,416 |
| Events in quadrant D | 3,470,431 | 595,643 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10641 | 3 |
| B | 0 | 28060 | 2 |
| C | 0 | 11864 | 2 |
| D | 0 | 13456 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4919 | 7 | 0.142305% |
| B | 4919 | 2327 | 47.306363% |
| C | 4919 | 151 | 3.069730% |
| D | 4919 | 163 | 3.313682% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7072 | 4920 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7071 | 4919 | 1885 | 1885 | 26.66% | 38.32% |  |
| C | 7072 | 4920 | 116 | 116 | 1.64% | 2.36% |  |
| D | 7072 | 4920 | 134 | 134 | 1.89% | 2.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 95931 | 739.35 | 644 | 634 | 128.9 |
| A | 7 | 191 | 19198 | 144.03 | 644 | 634 | 128.9 |
| A | 13 | 254 | 8368 | 60.0 | 644 | 634 | 128.9 |
| B | 5 | 236 | 4712827 | 49340.88 | 508 | 497 | 95.5 |
| B | 5 | 172 | 1439640 | 15068.68 | 508 | 497 | 95.5 |
| B | 3 | 112 | 61901 | 642.94 | 508 | 497 | 95.5 |
| C | 0 | 10 | 343847 | 2486.42 | 600 | 606 | 138.0 |
| C | 15 | 214 | 208815 | 1508.26 | 600 | 606 | 138.0 |
| C | 9 | 69 | 100805 | 725.84 | 600 | 606 | 138.0 |
| D | 7 | 80 | 262948 | 1759.67 | 614 | 599 | 149.1 |
| D | 2 | 249 | 239150 | 1600.05 | 614 | 599 | 149.1 |
| D | 10 | 118 | 140942 | 941.33 | 614 | 599 | 149.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

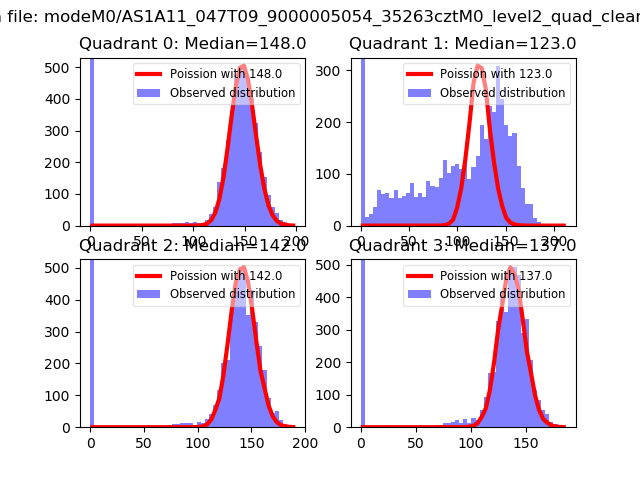

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

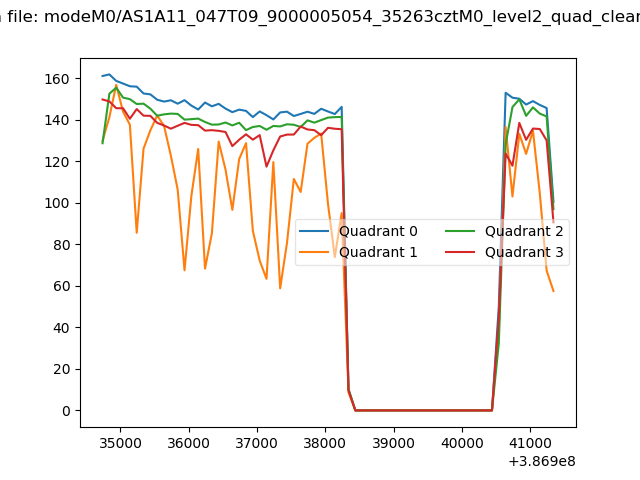

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

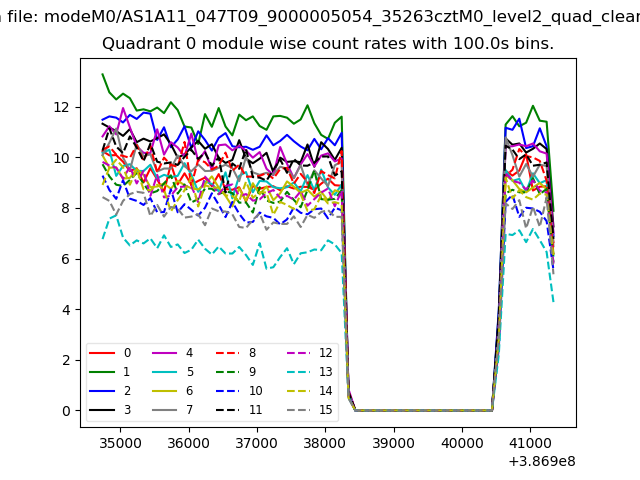

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

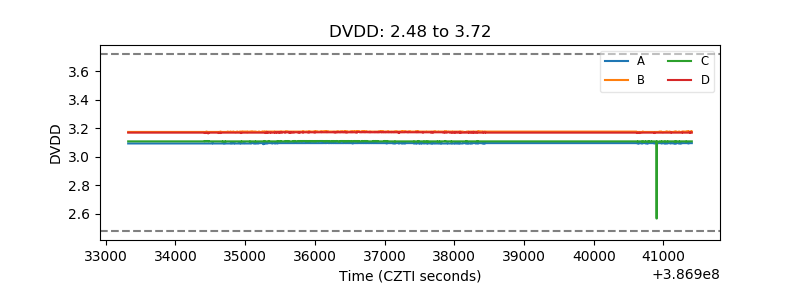

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
