| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T09_9000005054_35264cztM0_level2.evt | modeM0/AS1A11_047T09_9000005054_35264cztM0_level2_quad_clean.evt |
| Size (bytes) | 688,026,240 | 88,159,680 |
| Size | 656.2 MB | 84.1 MB |
| Events in quadrant A | 2,674,531 | 650,824 |
| Events in quadrant B | 9,500,027 | 447,739 |
| Events in quadrant C | 3,766,344 | 615,113 |
| Events in quadrant D | 4,537,873 | 583,650 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11095 | 3 |
| B | 0 | 31901 | 2 |
| C | 0 | 14356 | 2 |
| D | 0 | 17062 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5299 | 9 | 0.169843% |
| B | 5299 | 2955 | 55.765239% |
| C | 5299 | 219 | 4.132855% |
| D | 5299 | 341 | 6.435176% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7362 | 5300 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7361 | 5299 | 2438 | 2438 | 33.12% | 46.01% |  |
| C | 7362 | 5300 | 207 | 207 | 2.81% | 3.91% |  |
| D | 7362 | 5300 | 300 | 300 | 4.07% | 5.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 101548 | 765.45 | 658 | 646 | 131.8 |
| A | 13 | 6 | 10048 | 71.32 | 658 | 646 | 131.8 |
| A | 13 | 254 | 9397 | 66.39 | 658 | 646 | 131.8 |
| B | 5 | 236 | 5089777 | 55384.23 | 482 | 471 | 91.9 |
| B | 5 | 172 | 2397508 | 26085.69 | 482 | 471 | 91.9 |
| B | 4 | 232 | 66170 | 714.97 | 482 | 471 | 91.9 |
| C | 0 | 10 | 739919 | 5195.01 | 619 | 624 | 142.3 |
| C | 15 | 208 | 301184 | 2112.03 | 619 | 624 | 142.3 |
| C | 15 | 214 | 222629 | 1560.02 | 619 | 624 | 142.3 |
| D | 7 | 80 | 970706 | 6419.89 | 621 | 606 | 151.1 |
| D | 2 | 249 | 531381 | 3512.54 | 621 | 606 | 151.1 |
| D | 8 | 195 | 193395 | 1275.83 | 621 | 606 | 151.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

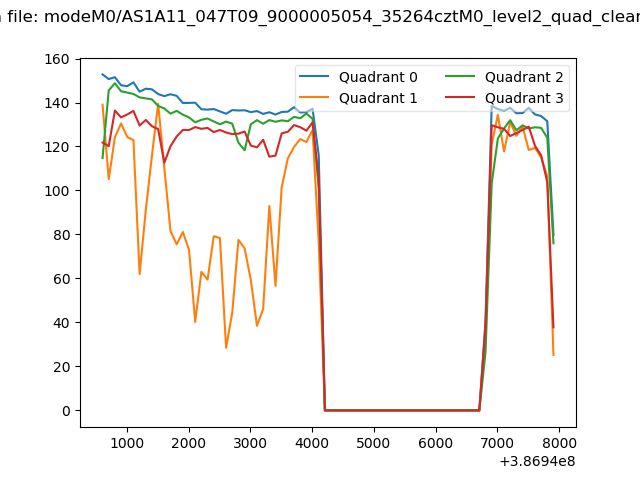

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

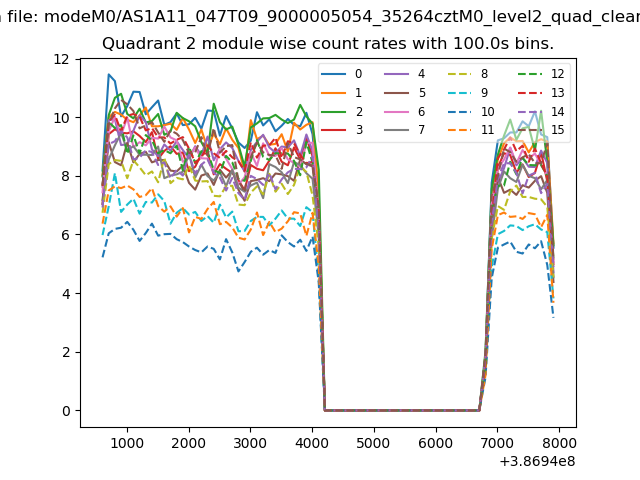

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

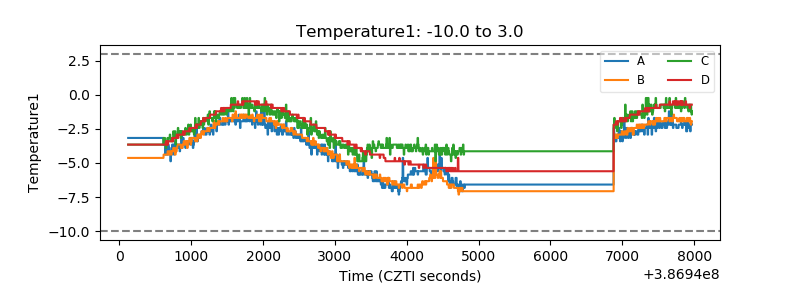

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

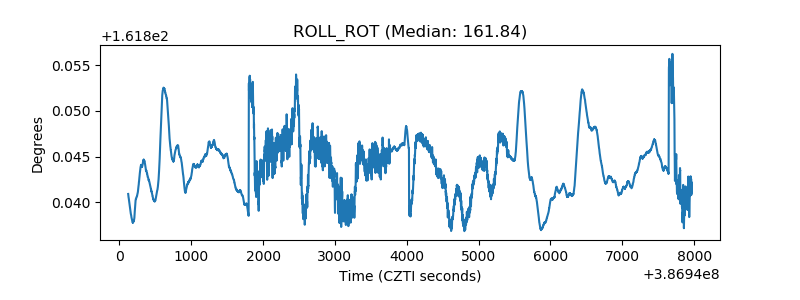

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

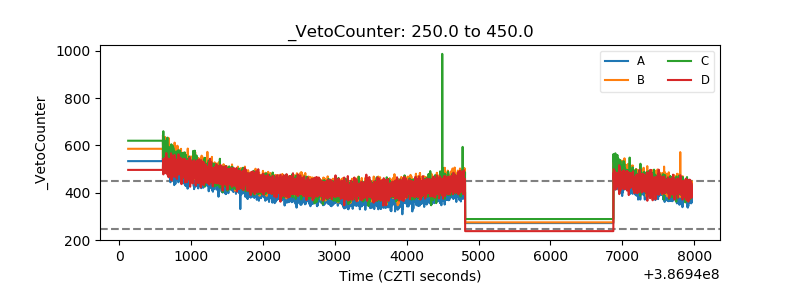

| Veto Counter |  |
