| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_082T01_9000005056_35278cztM0_level2.evt | modeM0/AS1A11_082T01_9000005056_35278cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,854,080 | 53,565,120 |
| Size | 560.6 MB | 51.1 MB |
| Events in quadrant A | 2,604,511 | 336,688 |
| Events in quadrant B | 6,903,248 | 297,682 |
| Events in quadrant C | 4,077,690 | 314,424 |
| Events in quadrant D | 3,865,543 | 308,030 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10766 | 3 |
| B | 0 | 24089 | 2 |
| C | 0 | 15822 | 2 |
| D | 0 | 14669 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5197 | 6 | 0.115451% |
| B | 5197 | 1598 | 30.748509% |
| C | 5197 | 198 | 3.809890% |
| D | 5197 | 356 | 6.850106% |

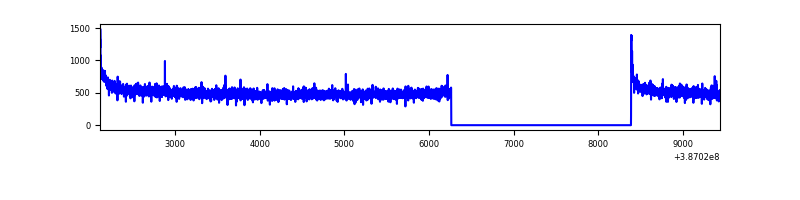

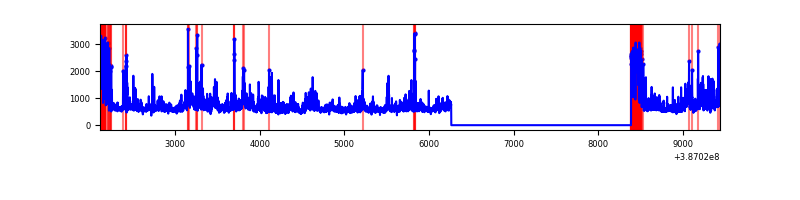

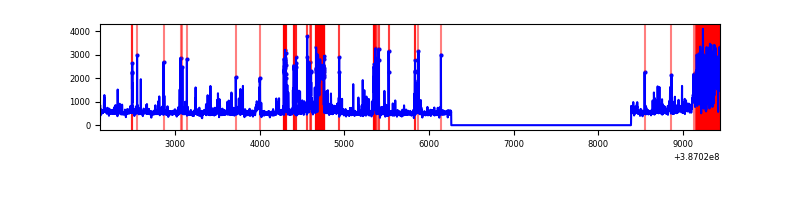

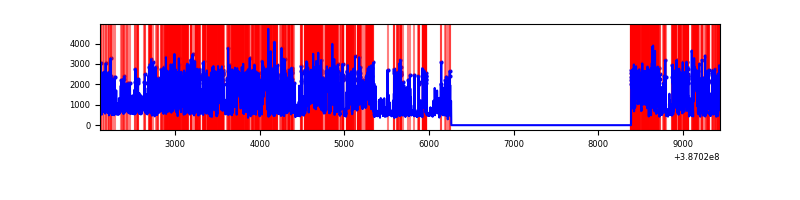

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7320 | 5198 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7319 | 5197 | 1210 | 1210 | 16.53% | 23.28% |  |
| C | 7320 | 5198 | 163 | 163 | 2.23% | 3.14% |  |
| D | 7320 | 5198 | 318 | 318 | 4.34% | 6.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 98160 | 754.18 | 643 | 631 | 129.3 |
| A | 13 | 6 | 17184 | 128.0 | 643 | 631 | 129.3 |
| A | 13 | 254 | 9357 | 67.48 | 643 | 631 | 129.3 |
| B | 5 | 236 | 3269473 | 31096.66 | 557 | 542 | 105.1 |
| B | 5 | 172 | 1375679 | 13081.39 | 557 | 542 | 105.1 |
| B | 4 | 232 | 28942 | 270.16 | 557 | 542 | 105.1 |
| C | 4 | 254 | 763127 | 5483.98 | 609 | 615 | 139.0 |
| C | 0 | 10 | 651892 | 4683.98 | 609 | 615 | 139.0 |
| C | 15 | 214 | 215114 | 1542.67 | 609 | 615 | 139.0 |
| D | 14 | 52 | 411894 | 2719.94 | 608 | 595 | 151.2 |
| D | 10 | 118 | 309764 | 2044.55 | 608 | 595 | 151.2 |
| D | 8 | 195 | 234930 | 1549.67 | 608 | 595 | 151.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

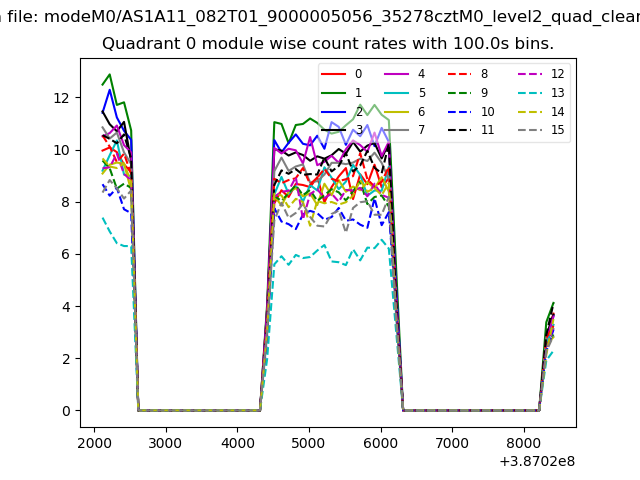

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

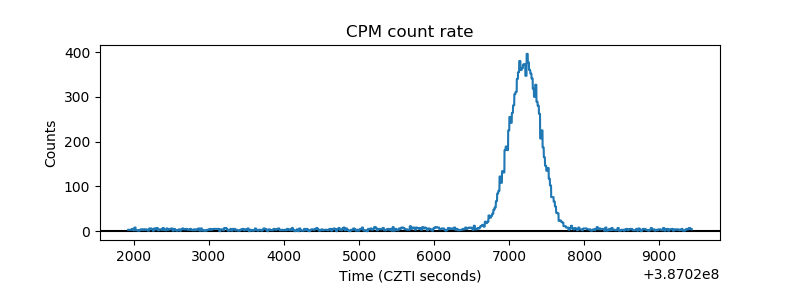

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

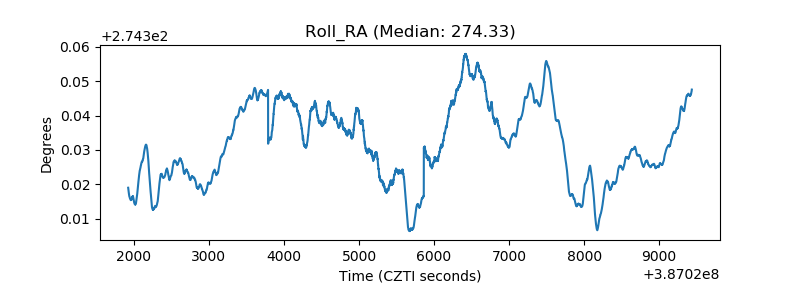

| _Roll_RA |  |

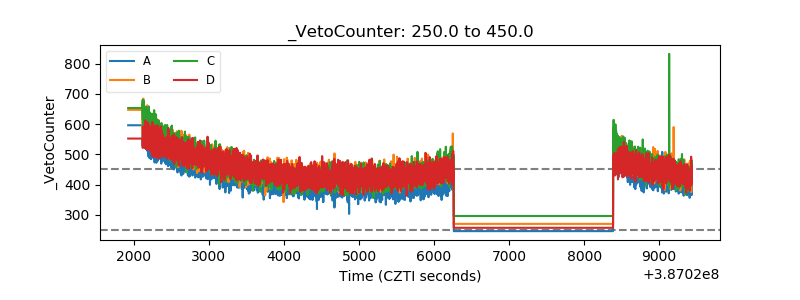

| Veto Counter |  |
