| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_023T01_9000005058_35309cztM0_level2.evt | modeM0/AS1T05_023T01_9000005058_35309cztM0_level2_quad_clean.evt |
| Size (bytes) | 734,048,640 | 82,961,280 |
| Size | 700.0 MB | 79.1 MB |
| Events in quadrant A | 4,304,854 | 579,154 |
| Events in quadrant B | 8,190,097 | 482,410 |
| Events in quadrant C | 2,982,088 | 582,670 |
| Events in quadrant D | 6,384,122 | 482,988 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16693 | 3 |
| B | 0 | 28092 | 2 |
| C | 0 | 12053 | 2 |
| D | 0 | 22518 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5480 | 85 | 1.551095% |
| B | 5480 | 2066 | 37.700730% |
| C | 5480 | 89 | 1.624088% |
| D | 5480 | 1229 | 22.427007% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

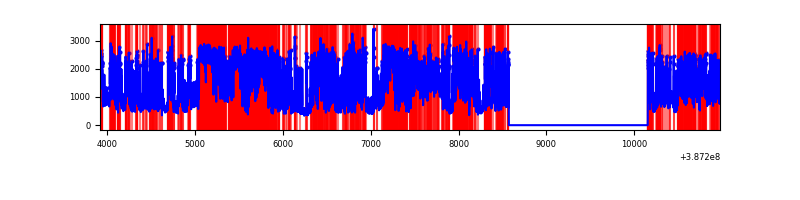

| A | 7063 | 5481 | 68 | 68 | 0.96% | 1.24% |  |

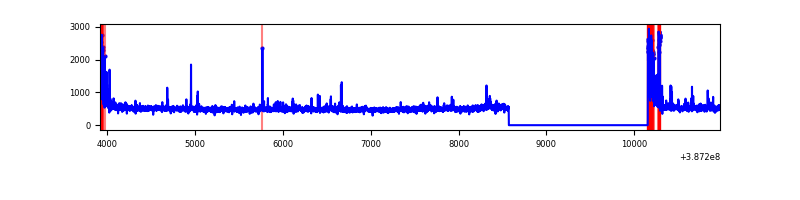

| B | 7063 | 5480 | 1620 | 1620 | 22.94% | 29.56% |  |

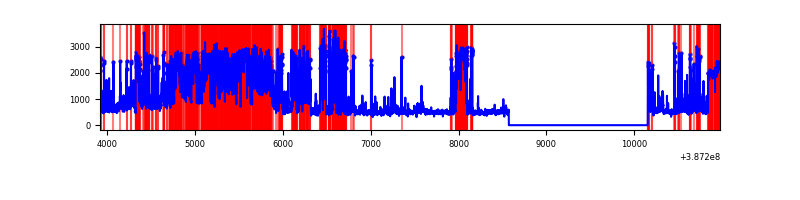

| C | 7063 | 5481 | 66 | 66 | 0.93% | 1.20% |  |
| D | 7062 | 5480 | 1133 | 1133 | 16.04% | 20.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1720335 | 13517.96 | 629 | 618 | 127.2 |
| A | 10 | 83 | 98940 | 772.87 | 629 | 618 | 127.2 |
| A | 13 | 6 | 11859 | 88.36 | 629 | 618 | 127.2 |
| B | 5 | 236 | 4516468 | 43273.08 | 538 | 524 | 104.4 |
| B | 5 | 172 | 1317962 | 12624.07 | 538 | 524 | 104.4 |
| B | 5 | 200 | 218707 | 2090.69 | 538 | 524 | 104.4 |
| C | 0 | 10 | 233796 | 1628.11 | 614 | 618 | 143.2 |
| C | 15 | 214 | 229201 | 1596.03 | 614 | 618 | 143.2 |
| C | 3 | 233 | 77179 | 534.57 | 614 | 618 | 143.2 |
| D | 10 | 203 | 1436506 | 10674.75 | 554 | 540 | 134.5 |
| D | 7 | 80 | 718223 | 5335.14 | 554 | 540 | 134.5 |
| D | 13 | 249 | 705366 | 5239.57 | 554 | 540 | 134.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

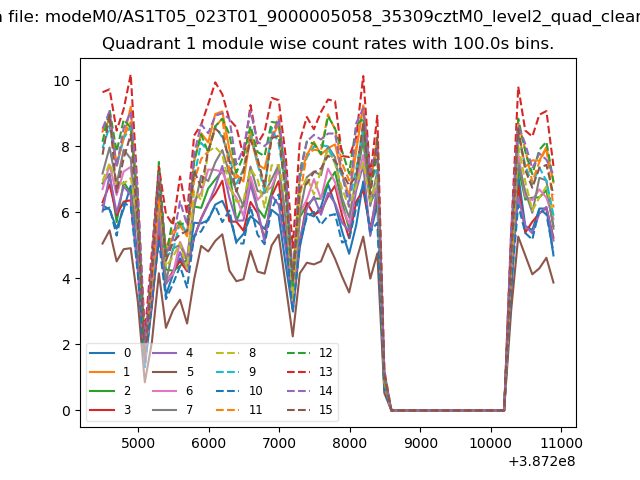

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

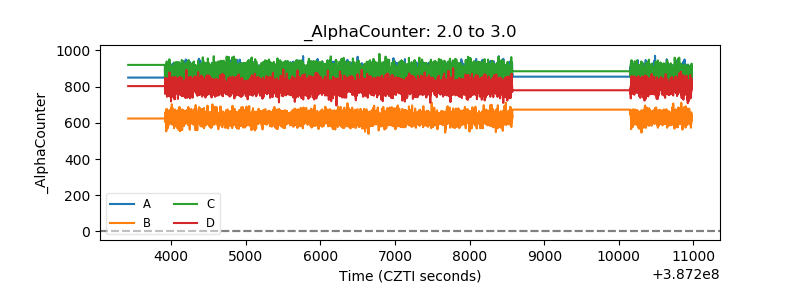

| Alpha Counter |  |

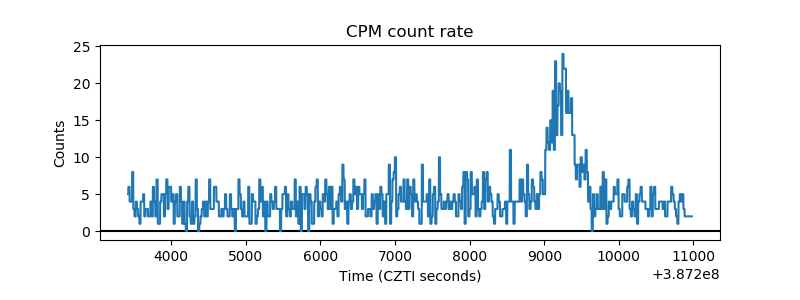

| _CPM_Rate |  |

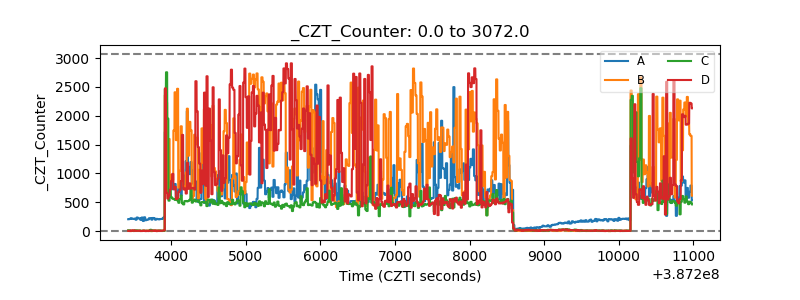

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

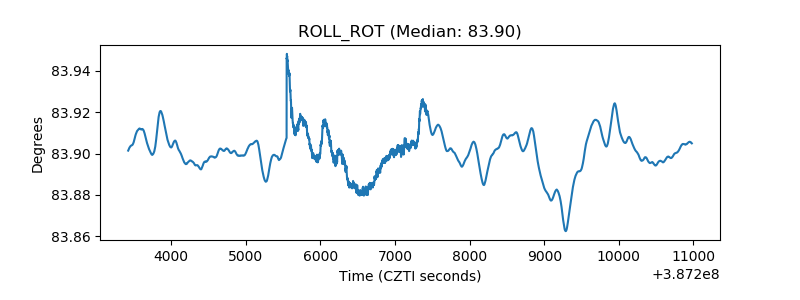

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
