| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T08_9000005062_35323cztM0_level2.evt | modeM0/AS1A11_046T08_9000005062_35323cztM0_level2_quad_clean.evt |
| Size (bytes) | 964,281,600 | 92,445,120 |
| Size | 919.6 MB | 88.2 MB |
| Events in quadrant A | 12,695,620 | 447,655 |
| Events in quadrant B | 8,165,937 | 592,999 |
| Events in quadrant C | 4,494,264 | 689,757 |
| Events in quadrant D | 3,472,238 | 675,372 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41498 | 3 |
| B | 0 | 28161 | 2 |
| C | 0 | 17087 | 2 |
| D | 0 | 13909 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5583 | 4567 | 81.801899% |
| B | 5583 | 2082 | 37.291779% |
| C | 5583 | 254 | 4.549525% |
| D | 5583 | 146 | 2.615081% |

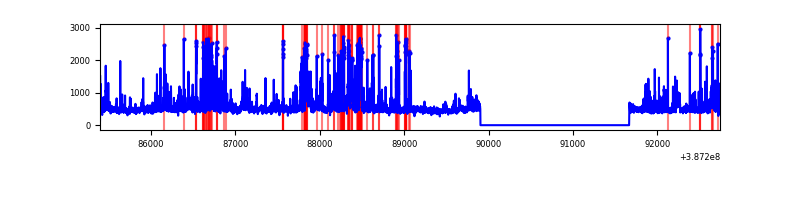

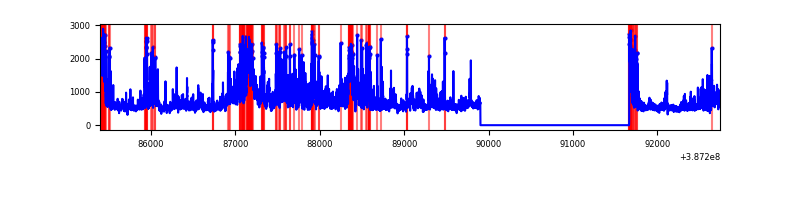

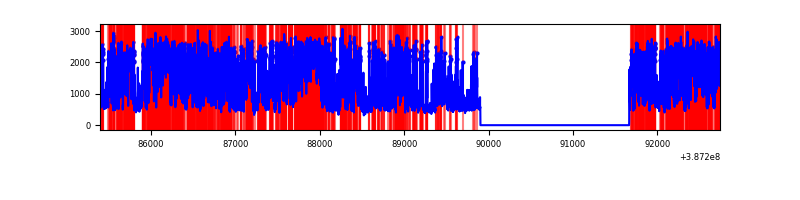

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7345 | 5583 | 4563 | 4563 | 62.12% | 81.73% |  |
| B | 7346 | 5584 | 1645 | 1645 | 22.39% | 29.46% |  |
| C | 7346 | 5584 | 219 | 219 | 2.98% | 3.92% |  |
| D | 7346 | 5584 | 141 | 141 | 1.92% | 2.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 10803762 | 119429.81 | 447 | 440 | 90.5 |
| A | 10 | 83 | 79009 | 868.57 | 447 | 440 | 90.5 |
| A | 7 | 3 | 31030 | 338.17 | 447 | 440 | 90.5 |
| B | 5 | 236 | 4654254 | 45035.77 | 543 | 530 | 103.3 |
| B | 5 | 172 | 1211041 | 11714.55 | 543 | 530 | 103.3 |
| B | 4 | 232 | 68285 | 655.69 | 543 | 530 | 103.3 |
| C | 3 | 233 | 1348869 | 9561.02 | 614 | 621 | 141.0 |
| C | 0 | 10 | 507444 | 3594.11 | 614 | 621 | 141.0 |
| C | 15 | 214 | 230207 | 1628.1 | 614 | 621 | 141.0 |
| D | 10 | 118 | 306005 | 2052.98 | 621 | 605 | 148.8 |
| D | 12 | 233 | 260966 | 1750.22 | 621 | 605 | 148.8 |
| D | 7 | 223 | 95986 | 641.18 | 621 | 605 | 148.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

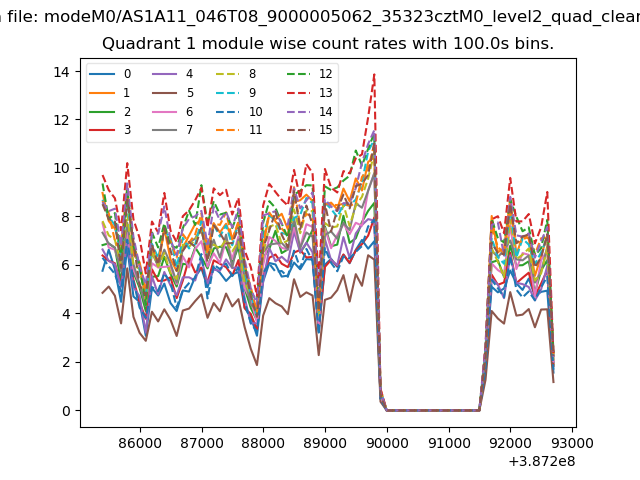

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

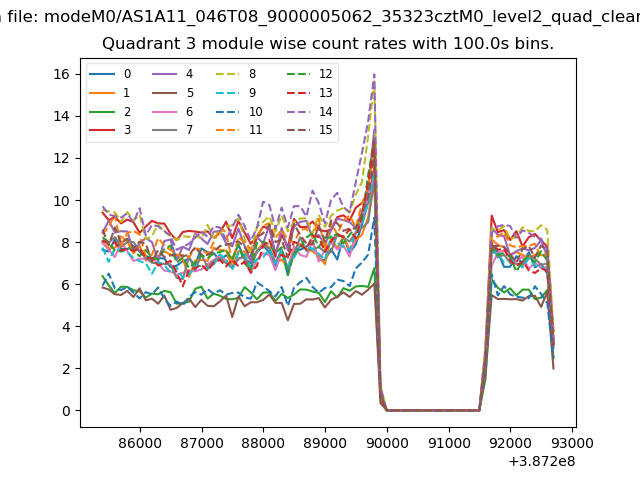

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

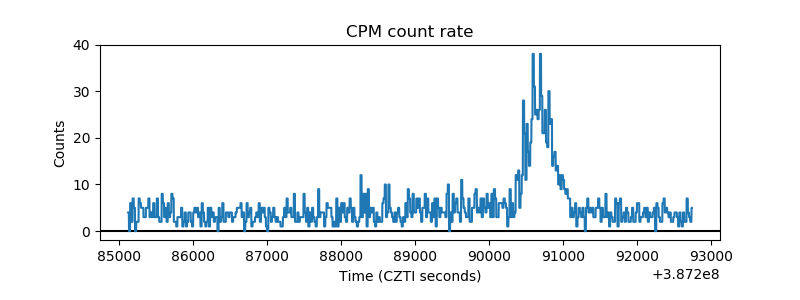

| _CPM_Rate |  |

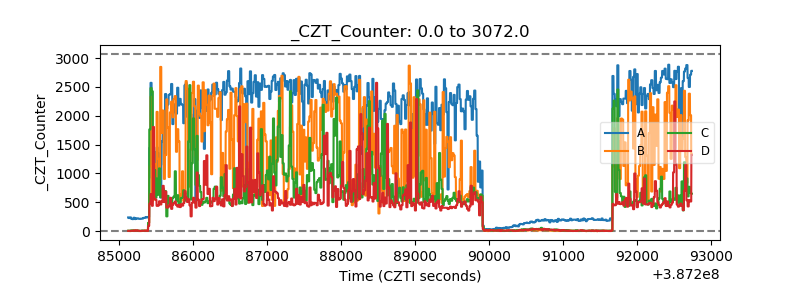

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

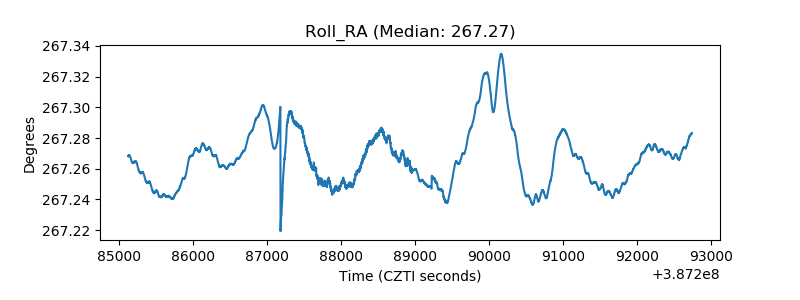

| _Roll_RA |  |
| Veto Counter |  |
