| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T08_9000005062_35325cztM0_level2.evt | modeM0/AS1A11_046T08_9000005062_35325cztM0_level2_quad_clean.evt |
| Size (bytes) | 982,293,120 | 84,038,400 |
| Size | 936.8 MB | 80.1 MB |
| Events in quadrant A | 13,619,819 | 299,428 |
| Events in quadrant B | 8,833,258 | 514,851 |
| Events in quadrant C | 3,174,855 | 683,125 |
| Events in quadrant D | 3,745,916 | 653,683 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44263 | 2 |
| B | 0 | 30078 | 1 |
| C | 0 | 12741 | 1 |
| D | 0 | 14930 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5573 | 5172 | 92.804594% |
| B | 5573 | 2626 | 47.120043% |
| C | 5573 | 151 | 2.709492% |
| D | 5573 | 219 | 3.929661% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

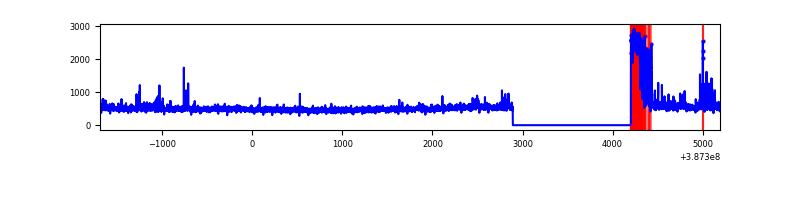

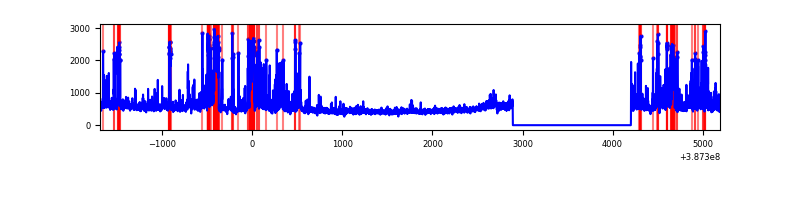

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6885 | 5574 | 5086 | 5086 | 73.87% | 91.25% |  |
| B | 6884 | 5573 | 2180 | 2180 | 31.67% | 39.12% |  |
| C | 6885 | 5574 | 132 | 132 | 1.92% | 2.37% |  |
| D | 6885 | 5574 | 184 | 184 | 2.67% | 3.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 12279431 | 183411.66 | 326 | 319 | 66.9 |
| A | 10 | 83 | 36753 | 544.21 | 326 | 319 | 66.9 |
| A | 10 | 255 | 12232 | 177.94 | 326 | 319 | 66.9 |
| B | 5 | 236 | 3923462 | 42082.96 | 487 | 474 | 93.2 |
| B | 5 | 172 | 2390312 | 25636.44 | 487 | 474 | 93.2 |
| B | 5 | 200 | 453069 | 4855.11 | 487 | 474 | 93.2 |
| C | 0 | 10 | 525881 | 3716.85 | 613 | 616 | 141.3 |
| C | 15 | 214 | 223611 | 1577.94 | 613 | 616 | 141.3 |
| C | 3 | 233 | 11566 | 77.48 | 613 | 616 | 141.3 |
| D | 10 | 118 | 402967 | 2662.79 | 612 | 594 | 151.1 |
| D | 8 | 195 | 311051 | 2054.52 | 612 | 594 | 151.1 |
| D | 12 | 233 | 287292 | 1897.29 | 612 | 594 | 151.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

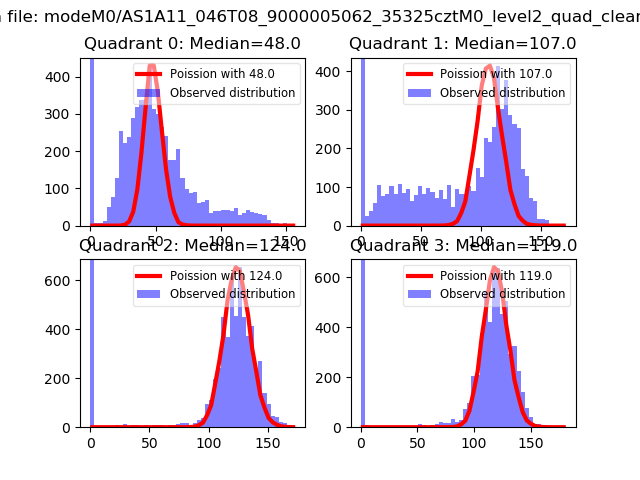

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

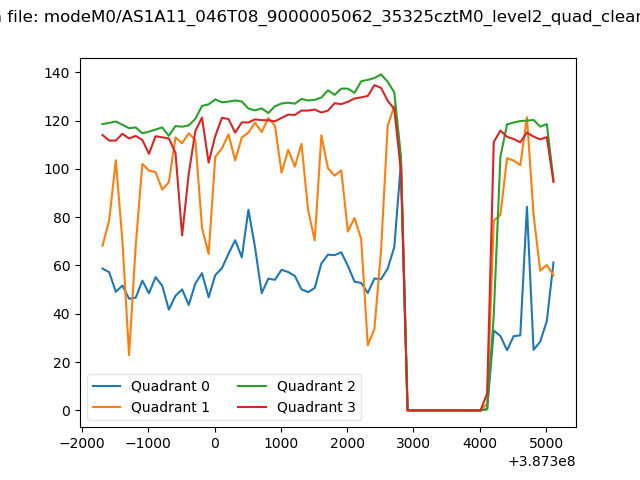

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

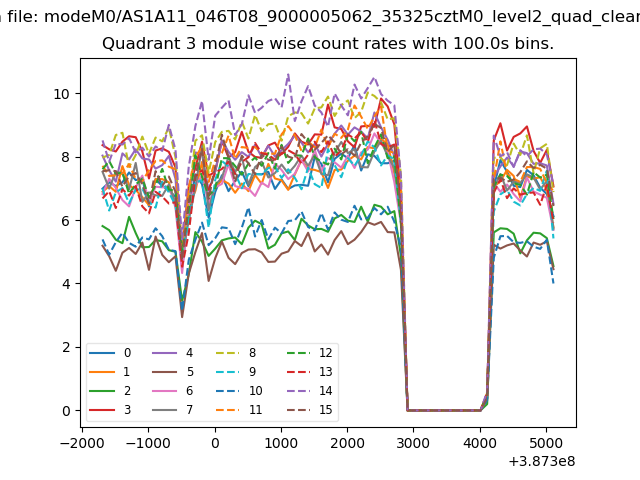

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

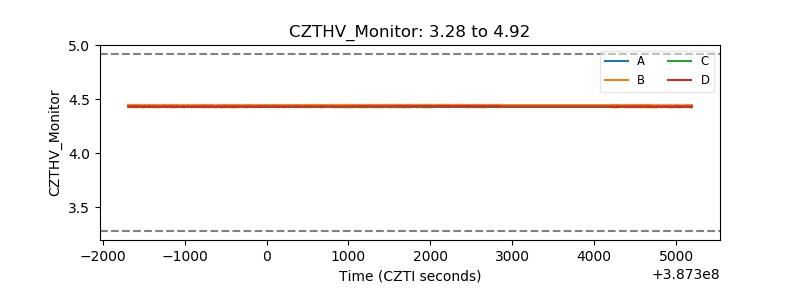

| CZT HV Monitor |  |

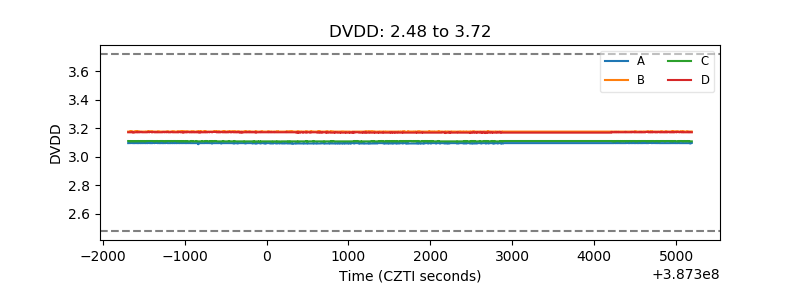

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

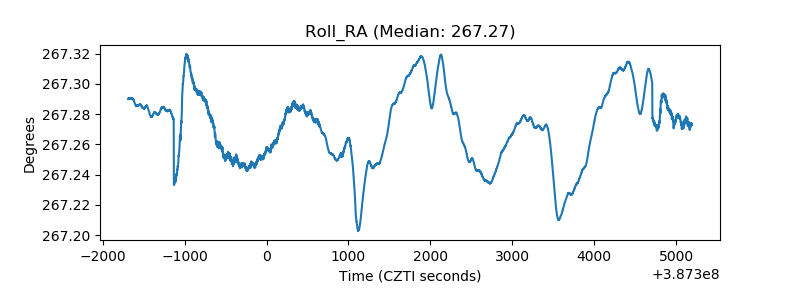

| _Roll_RA |  |
| Veto Counter |  |
