| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_037T01_9000005066_35357cztM0_level2.evt | modeM0/AS1A11_037T01_9000005066_35357cztM0_level2_quad_clean.evt |
| Size (bytes) | 618,212,160 | 96,952,320 |
| Size | 589.6 MB | 92.5 MB |
| Events in quadrant A | 3,200,574 | 646,009 |
| Events in quadrant B | 4,303,857 | 641,563 |
| Events in quadrant C | 3,831,808 | 622,393 |
| Events in quadrant D | 6,924,405 | 550,190 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14077 | 2 |
| B | 0 | 17261 | 2 |
| C | 0 | 15794 | 2 |
| D | 0 | 25355 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6824 | 14 | 0.205158% |
| B | 6824 | 190 | 2.784291% |
| C | 6824 | 140 | 2.051583% |
| D | 6824 | 877 | 12.851700% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

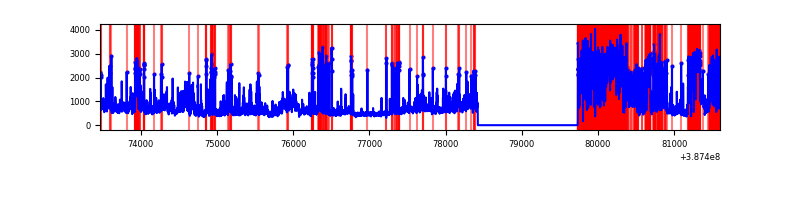

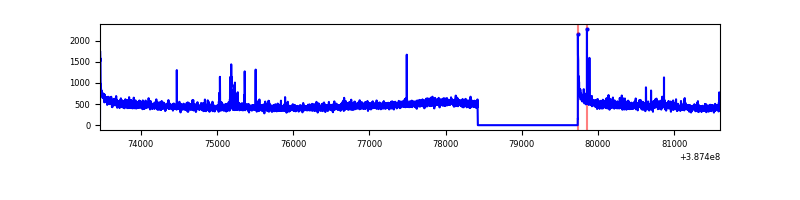

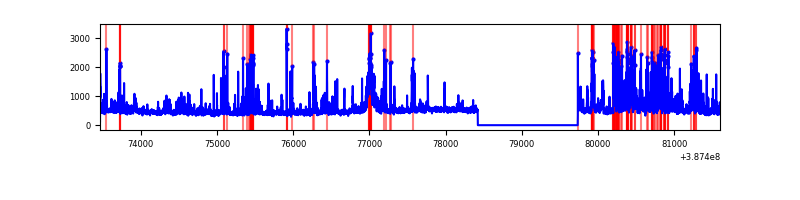

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8137 | 6825 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8137 | 6825 | 141 | 141 | 1.73% | 2.07% |  |
| C | 8137 | 6825 | 115 | 115 | 1.41% | 1.68% |  |
| D | 8137 | 6825 | 909 | 909 | 11.17% | 13.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 131809 | 833.25 | 770 | 753 | 157.3 |
| A | 7 | 3 | 27795 | 171.93 | 770 | 753 | 157.3 |
| A | 15 | 169 | 27368 | 169.22 | 770 | 753 | 157.3 |
| B | 5 | 172 | 561331 | 3823.92 | 760 | 740 | 146.6 |
| B | 4 | 251 | 427046 | 2907.93 | 760 | 740 | 146.6 |
| B | 5 | 31 | 69103 | 466.32 | 760 | 740 | 146.6 |
| C | 0 | 10 | 303592 | 1775.9 | 733 | 738 | 170.5 |
| C | 15 | 214 | 276798 | 1618.78 | 733 | 738 | 170.5 |
| C | 3 | 233 | 199637 | 1166.32 | 733 | 738 | 170.5 |
| D | 7 | 80 | 2794499 | 16463.7 | 695 | 676 | 169.7 |
| D | 8 | 195 | 760741 | 4478.98 | 695 | 676 | 169.7 |
| D | 2 | 152 | 170159 | 998.75 | 695 | 676 | 169.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

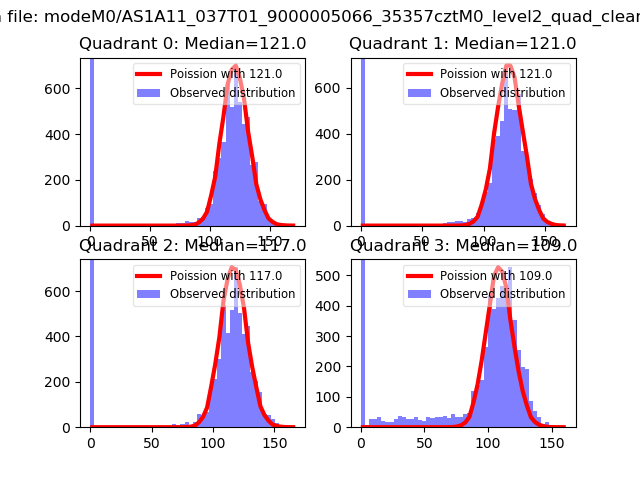

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

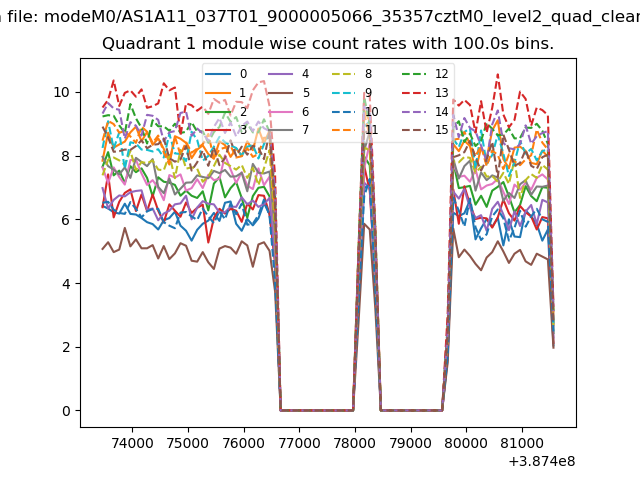

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

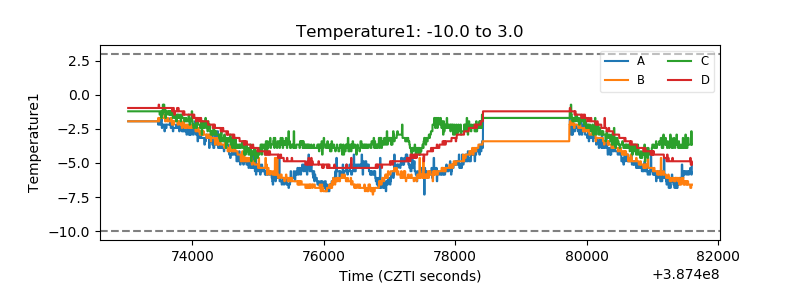

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

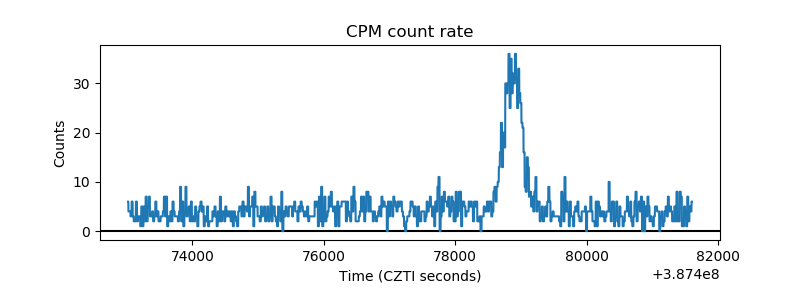

| _CPM_Rate |  |

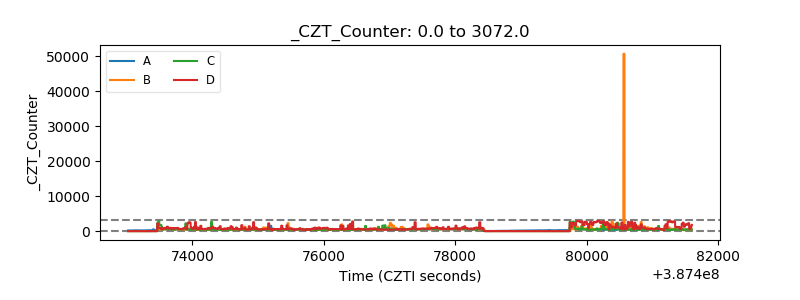

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
