| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_099T01_9000005068_35357cztM0_level2.evt | modeM0/AS1A11_099T01_9000005068_35357cztM0_level2_quad_clean.evt |
| Size (bytes) | 908,184,960 | 78,085,440 |
| Size | 866.1 MB | 74.5 MB |
| Events in quadrant A | 5,853,444 | 418,711 |
| Events in quadrant B | 9,760,896 | 421,500 |
| Events in quadrant C | 5,007,040 | 498,707 |
| Events in quadrant D | 6,347,940 | 472,567 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22500 | 3 |
| B | 0 | 34475 | 2 |
| C | 0 | 19763 | 2 |
| D | 0 | 24165 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7930 | 1023 | 12.900378% |
| B | 7930 | 2251 | 28.385876% |
| C | 7930 | 273 | 3.442623% |
| D | 7930 | 385 | 4.854981% |

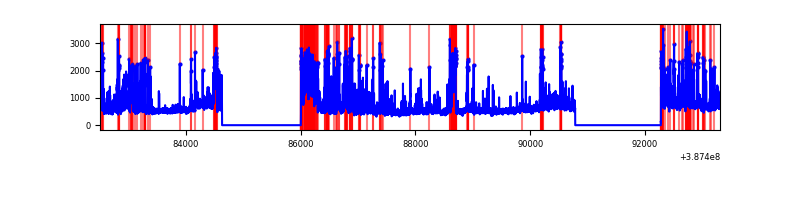

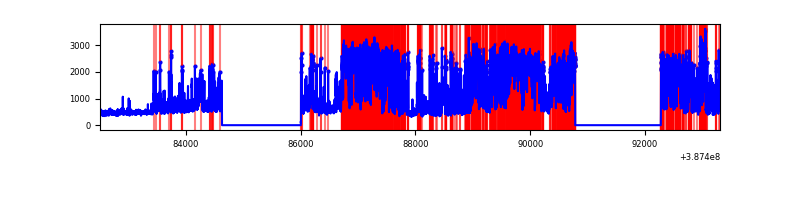

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10797 | 7932 | 867 | 867 | 8.03% | 10.93% |  |
| B | 10797 | 7932 | 1816 | 1816 | 16.82% | 22.89% |  |
| C | 10797 | 7932 | 234 | 234 | 2.17% | 2.95% |  |
| D | 10797 | 7932 | 368 | 368 | 3.41% | 4.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2324073 | 13339.32 | 860 | 841 | 174.2 |
| A | 10 | 83 | 104002 | 592.32 | 860 | 841 | 174.2 |
| A | 9 | 143 | 78808 | 447.66 | 860 | 841 | 174.2 |
| B | 4 | 251 | 5813044 | 36688.77 | 824 | 802 | 158.4 |
| B | 5 | 172 | 402751 | 2537.23 | 824 | 802 | 158.4 |
| B | 5 | 236 | 184883 | 1161.98 | 824 | 802 | 158.4 |
| C | 15 | 208 | 546454 | 2587.26 | 903 | 908 | 210.9 |
| C | 0 | 10 | 479869 | 2271.48 | 903 | 908 | 210.9 |
| C | 15 | 214 | 320830 | 1517.23 | 903 | 908 | 210.9 |
| D | 7 | 80 | 1259039 | 5668.91 | 899 | 873 | 221.9 |
| D | 8 | 195 | 744112 | 3348.81 | 899 | 873 | 221.9 |
| D | 10 | 118 | 222751 | 999.71 | 899 | 873 | 221.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

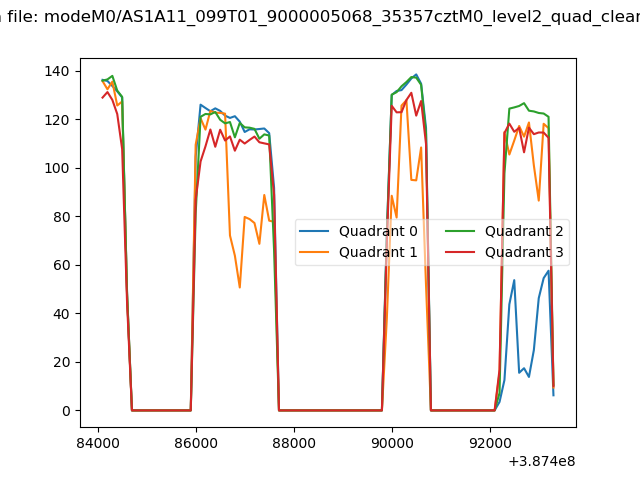

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

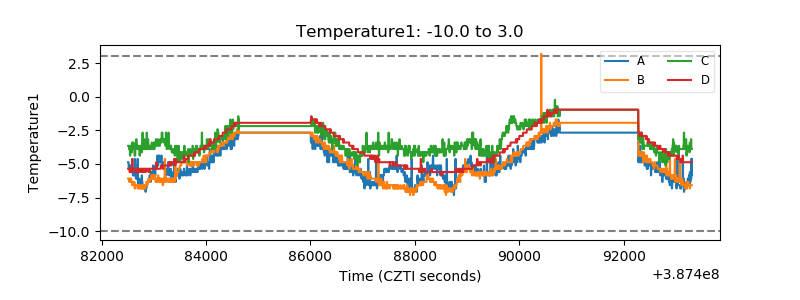

| Temperature 1 |  |
| Veto HV Monitor |  |

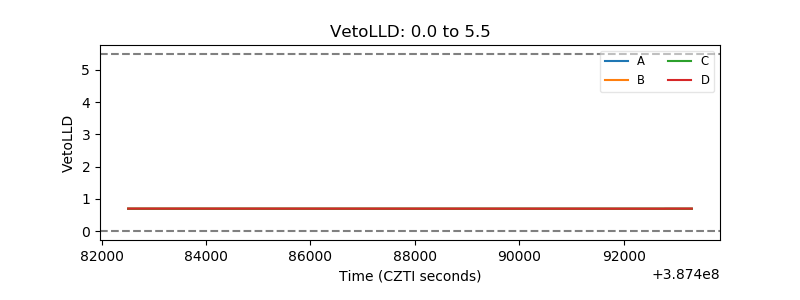

| Veto LLD |  |
| Alpha Counter |  |

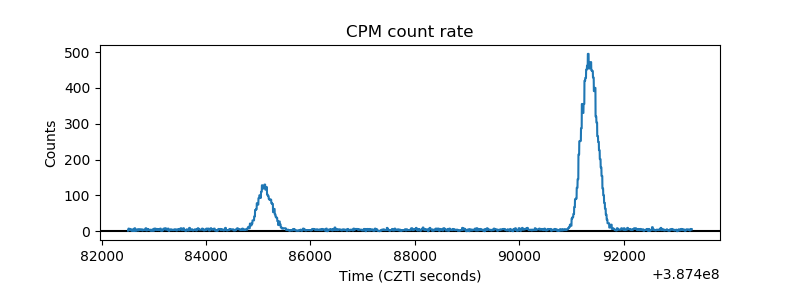

| _CPM_Rate |  |

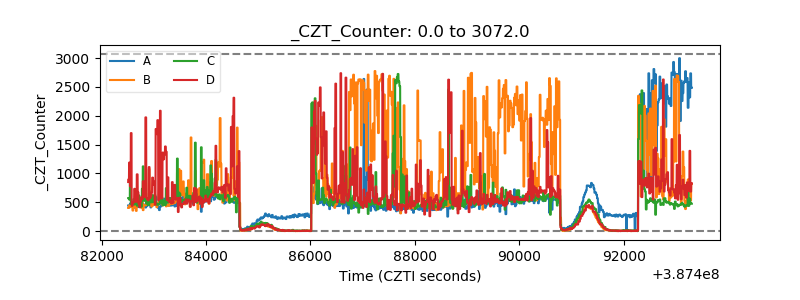

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

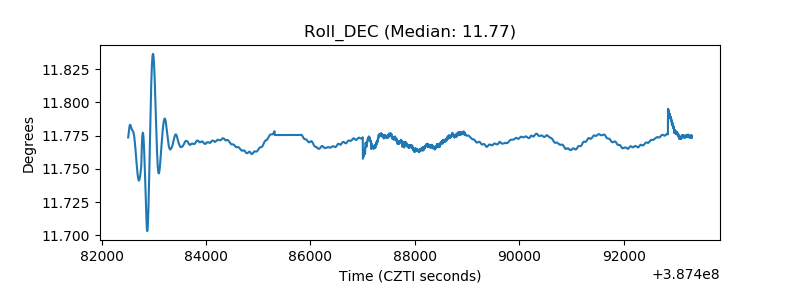

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
