| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_099T01_9000005068_35358cztM0_level2.evt | modeM0/AS1A11_099T01_9000005068_35358cztM0_level2_quad_clean.evt |
| Size (bytes) | 704,476,800 | 60,085,440 |
| Size | 671.8 MB | 57.3 MB |
| Events in quadrant A | 7,032,624 | 282,075 |
| Events in quadrant B | 6,482,635 | 362,104 |
| Events in quadrant C | 3,160,277 | 400,550 |
| Events in quadrant D | 4,282,049 | 382,291 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24502 | 3 |
| B | 0 | 23130 | 2 |
| C | 0 | 12666 | 2 |
| D | 0 | 16739 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5585 | 1971 | 35.290958% |
| B | 5585 | 1318 | 23.598926% |
| C | 5585 | 150 | 2.685765% |
| D | 5585 | 121 | 2.166517% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

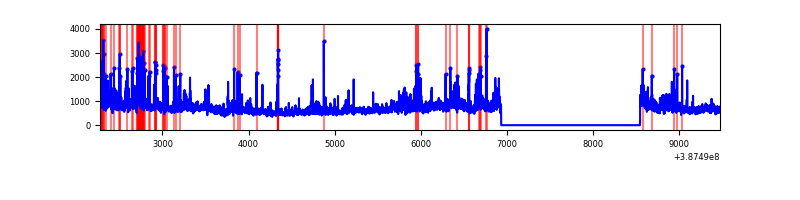

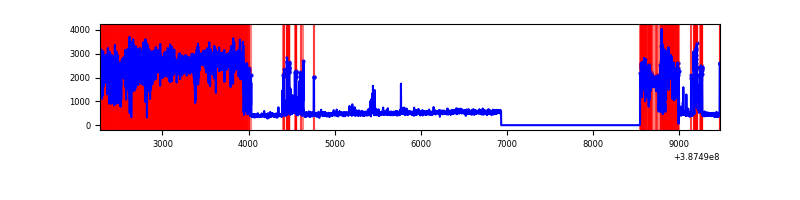

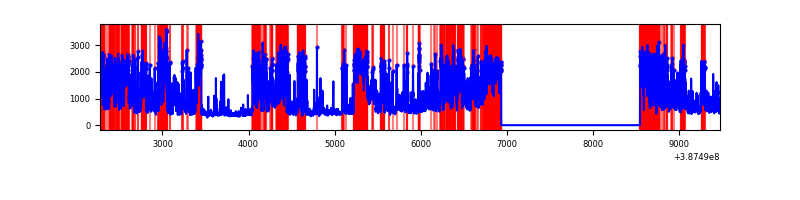

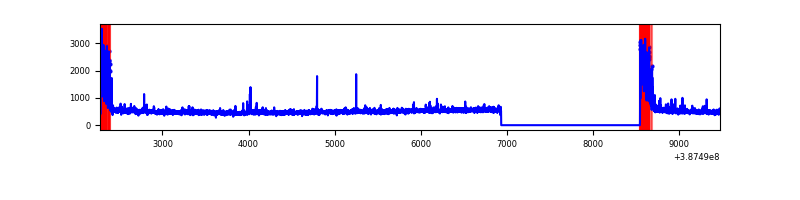

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7198 | 5586 | 1710 | 1710 | 23.76% | 30.61% |  |
| B | 7198 | 5586 | 1009 | 1009 | 14.02% | 18.06% |  |
| C | 7198 | 5586 | 117 | 117 | 1.63% | 2.09% |  |
| D | 7198 | 5586 | 99 | 99 | 1.38% | 1.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 4958563 | 47089.0 | 513 | 502 | 105.3 |
| A | 10 | 83 | 72570 | 684.46 | 513 | 502 | 105.3 |
| A | 13 | 6 | 8623 | 77.13 | 513 | 502 | 105.3 |
| B | 4 | 251 | 3275098 | 28325.18 | 594 | 578 | 115.6 |
| B | 5 | 172 | 340302 | 2938.67 | 594 | 578 | 115.6 |
| B | 5 | 236 | 116866 | 1005.91 | 594 | 578 | 115.6 |
| C | 0 | 10 | 470347 | 3207.44 | 627 | 632 | 146.4 |
| C | 15 | 214 | 228936 | 1558.97 | 627 | 632 | 146.4 |
| C | 14 | 67 | 6605 | 40.79 | 627 | 632 | 146.4 |
| D | 8 | 195 | 1077087 | 6999.25 | 626 | 608 | 153.8 |
| D | 11 | 192 | 144147 | 933.29 | 626 | 608 | 153.8 |
| D | 2 | 152 | 109858 | 710.34 | 626 | 608 | 153.8 |

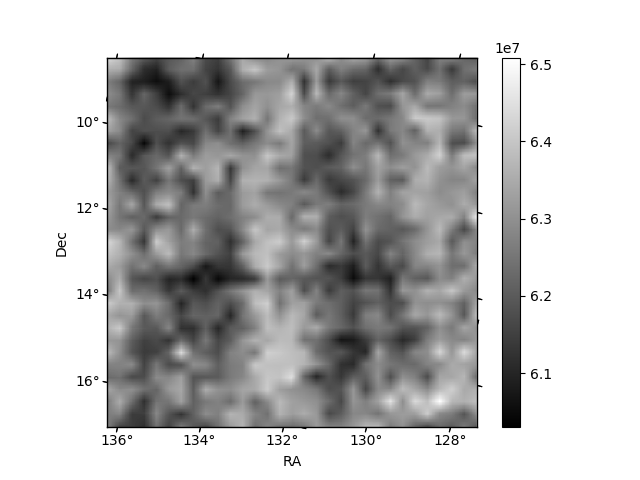

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

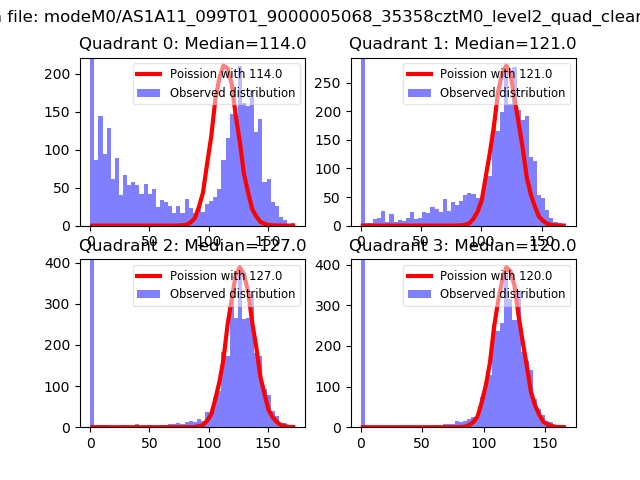

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

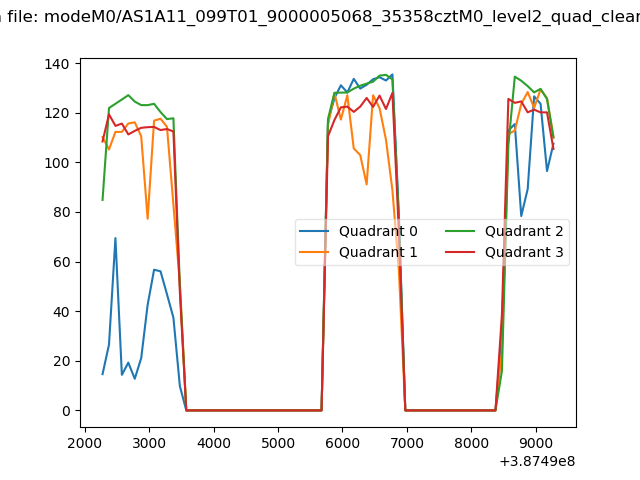

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

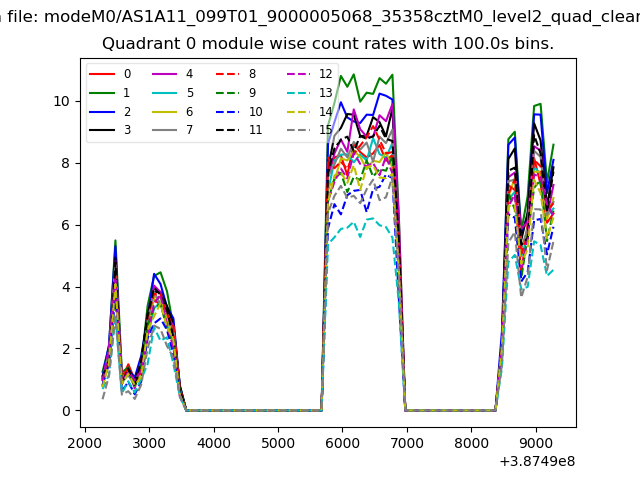

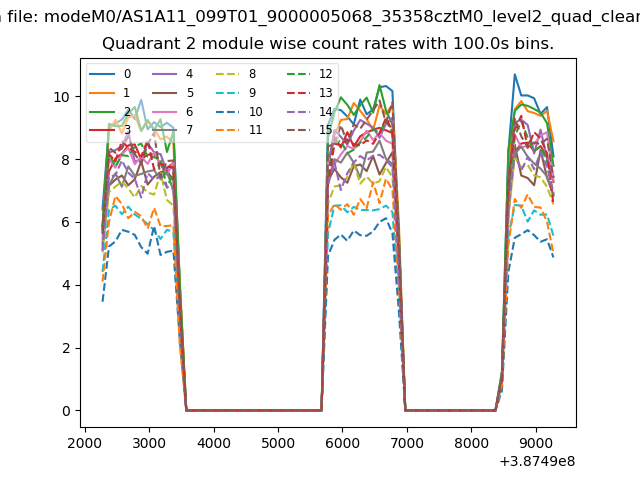

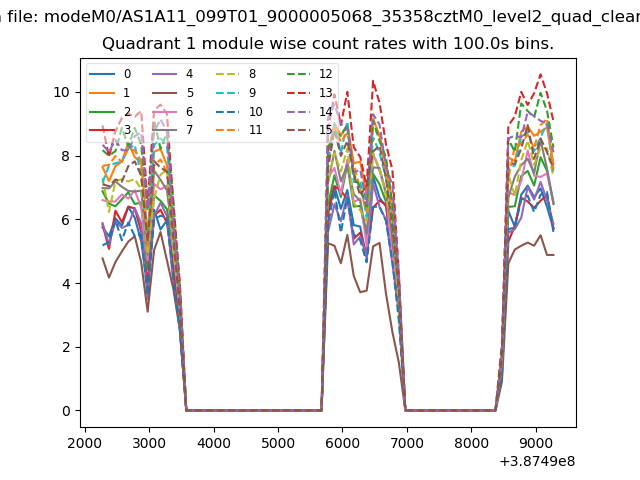

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

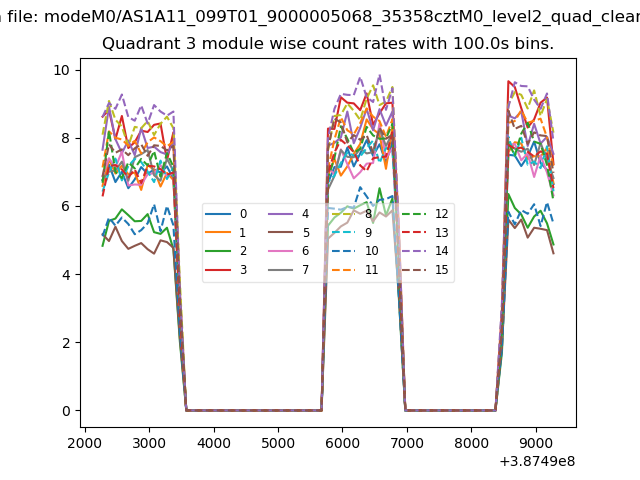

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

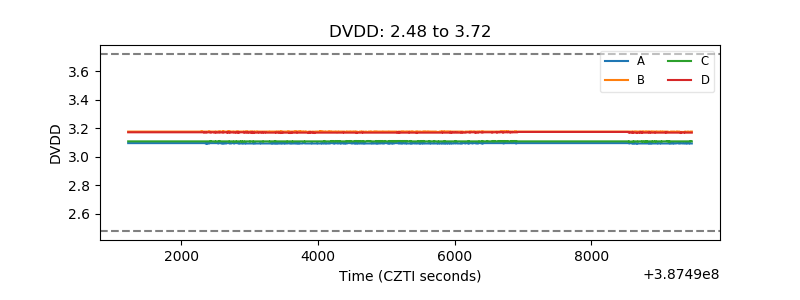

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

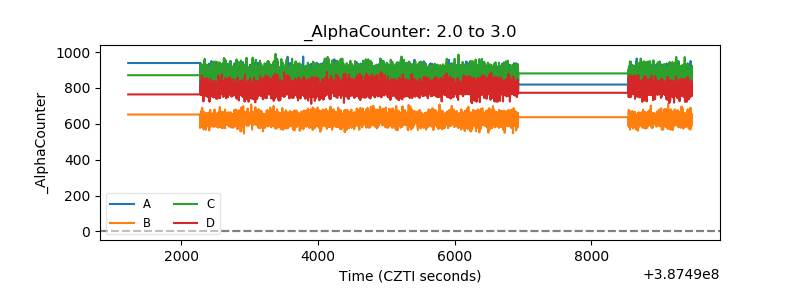

| Alpha Counter |  |

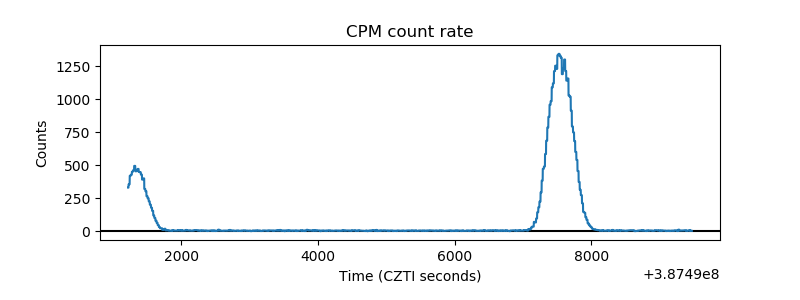

| _CPM_Rate |  |

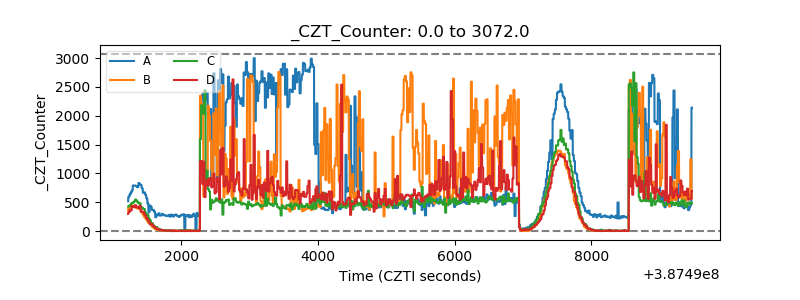

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

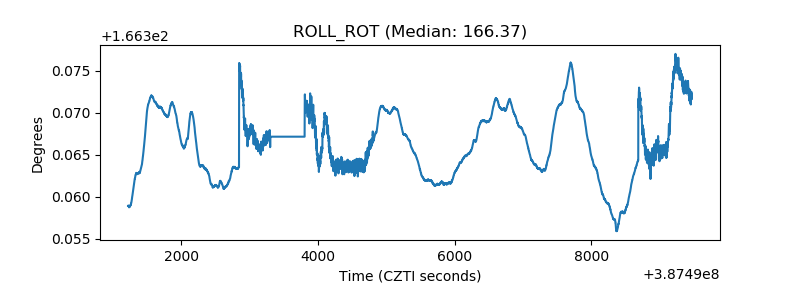

| _ROLL_ROT |  |

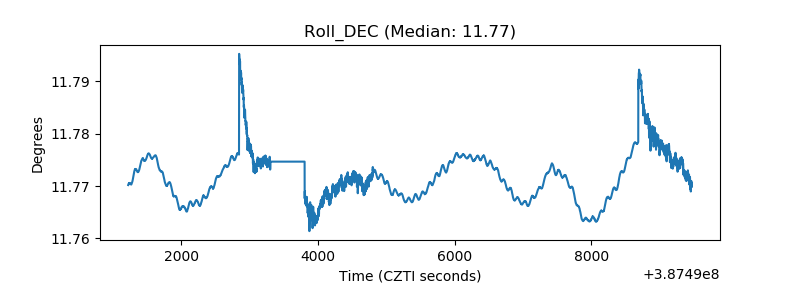

| _Roll_DEC |  |

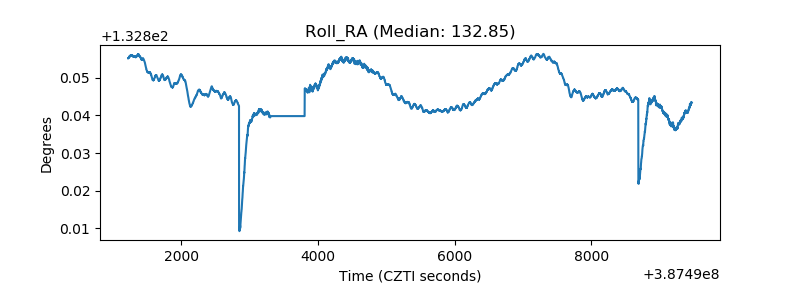

| _Roll_RA |  |

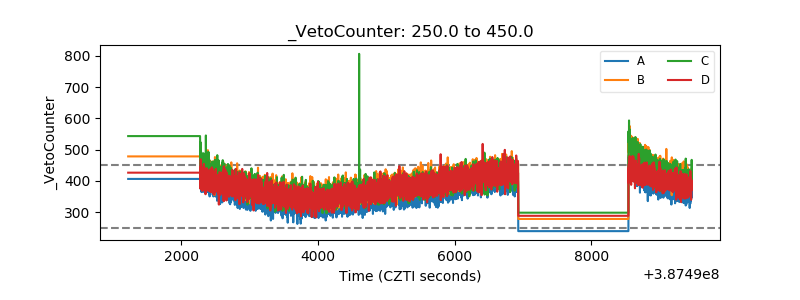

| Veto Counter |  |
