| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_099T01_9000005068_35360cztM0_level2.evt | modeM0/AS1A11_099T01_9000005068_35360cztM0_level2_quad_clean.evt |
| Size (bytes) | 655,848,000 | 57,447,360 |
| Size | 625.5 MB | 54.8 MB |
| Events in quadrant A | 4,677,420 | 354,514 |
| Events in quadrant B | 8,124,295 | 290,718 |
| Events in quadrant C | 3,180,975 | 360,200 |
| Events in quadrant D | 3,507,751 | 348,153 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 33 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17502 | 3 |
| B | 0 | 27938 | 2 |
| C | 0 | 12577 | 2 |
| D | 0 | 14067 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5491 | 1000 | 18.211619% |
| B | 5491 | 2008 | 36.568931% |
| C | 5491 | 142 | 2.586050% |
| D | 5491 | 88 | 1.602622% |

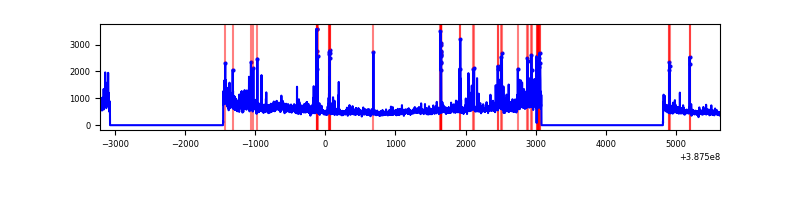

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8837 | 5493 | 480 | 480 | 5.43% | 8.74% |  |
| B | 8837 | 5493 | 1692 | 1692 | 19.15% | 30.80% |  |
| C | 8837 | 5493 | 127 | 127 | 1.44% | 2.31% |  |
| D | 8837 | 5493 | 55 | 55 | 0.62% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2255217 | 18827.69 | 593 | 582 | 119.8 |
| A | 10 | 83 | 100244 | 832.24 | 593 | 582 | 119.8 |
| A | 13 | 6 | 14208 | 113.79 | 593 | 582 | 119.8 |
| B | 4 | 251 | 5306925 | 49682.62 | 553 | 539 | 106.8 |
| B | 5 | 172 | 276092 | 2579.95 | 553 | 539 | 106.8 |
| B | 5 | 236 | 81663 | 759.55 | 553 | 539 | 106.8 |
| C | 0 | 10 | 453810 | 3065.41 | 630 | 636 | 147.8 |
| C | 15 | 214 | 227212 | 1532.63 | 630 | 636 | 147.8 |
| C | 3 | 233 | 33883 | 224.89 | 630 | 636 | 147.8 |
| D | 8 | 195 | 584427 | 3724.77 | 632 | 614 | 156.7 |
| D | 2 | 152 | 104004 | 659.64 | 632 | 614 | 156.7 |
| D | 2 | 250 | 58736 | 370.82 | 632 | 614 | 156.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

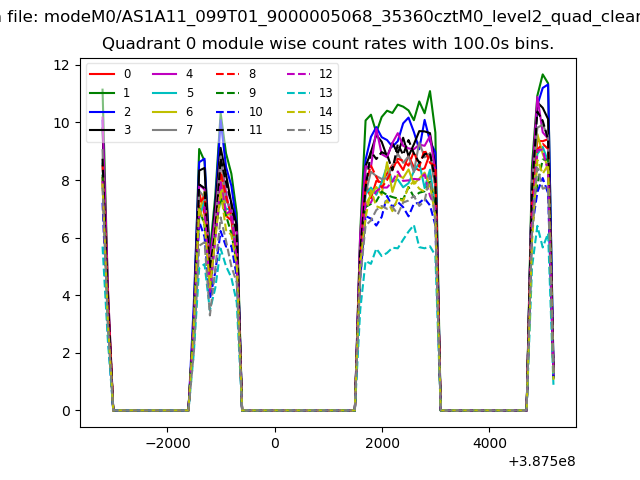

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

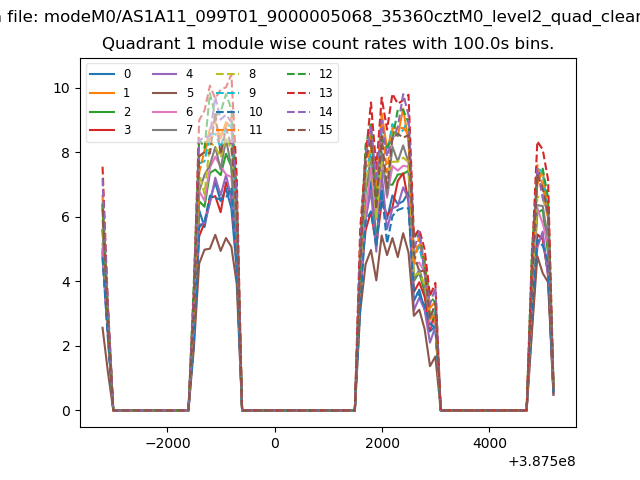

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

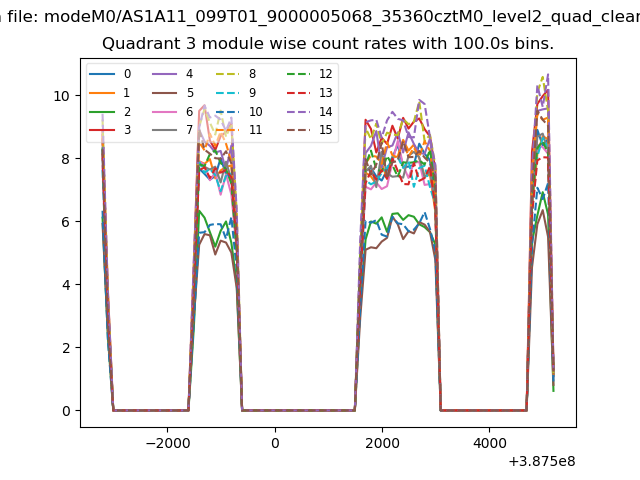

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

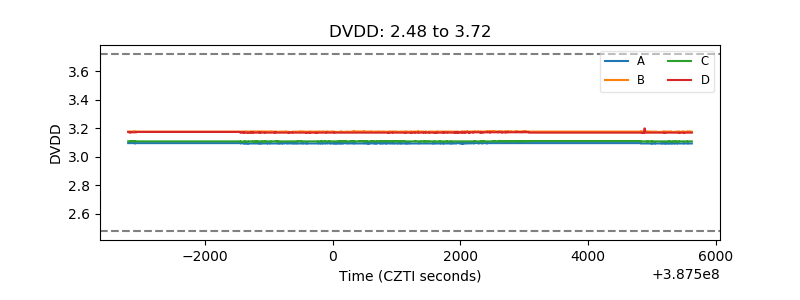

| D_VDD |  |

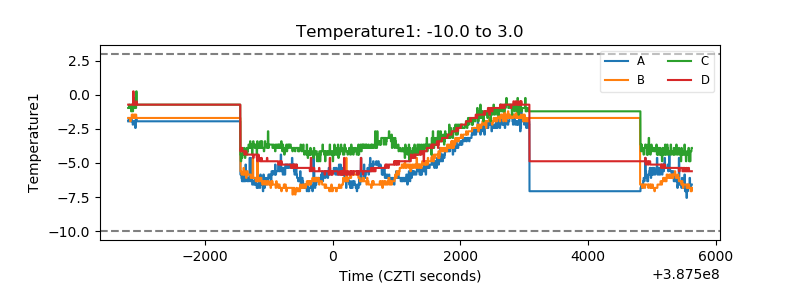

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

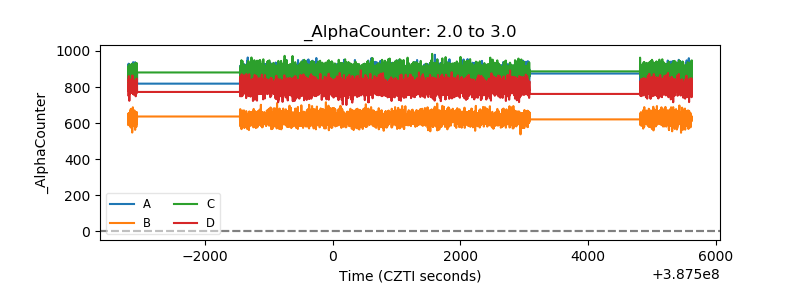

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

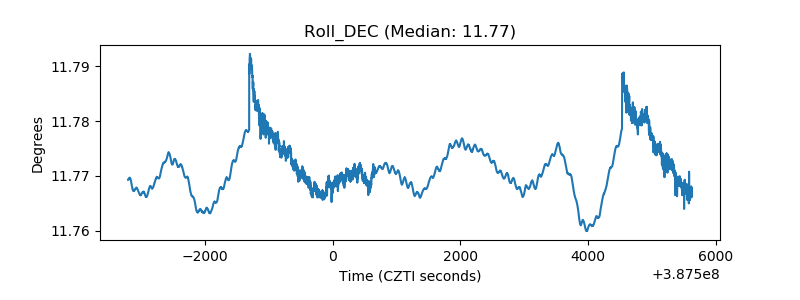

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
