| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_099T01_9000005068_35372cztM0_level2.evt | modeM0/AS1A11_099T01_9000005068_35372cztM0_level2_quad_clean.evt |
| Size (bytes) | 775,005,120 | 88,747,200 |
| Size | 739.1 MB | 84.6 MB |
| Events in quadrant A | 4,202,227 | 538,592 |
| Events in quadrant B | 7,034,819 | 509,074 |
| Events in quadrant C | 4,750,403 | 533,103 |
| Events in quadrant D | 6,890,045 | 496,577 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18204 | 3 |
| B | 0 | 26713 | 2 |
| C | 0 | 19438 | 2 |
| D | 0 | 26485 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 178 | 0 |
| B | 0 | 178 | 0 |
| C | 0 | 178 | 0 |
| D | 0 | 178 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8788 | 14 | 0.159308% |
| B | 8788 | 978 | 11.128812% |
| C | 8788 | 96 | 1.092399% |
| D | 8788 | 319 | 3.629950% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11775 | 8790 | 0 | 0 | 0.00% | 0.00% |  |
| B | 11775 | 8790 | 783 | 783 | 6.65% | 8.91% |  |
| C | 11775 | 8790 | 75 | 75 | 0.64% | 0.85% |  |
| D | 11775 | 8790 | 270 | 270 | 2.29% | 3.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 145610 | 690.76 | 1031 | 1011 | 209.3 |
| A | 9 | 143 | 31283 | 144.61 | 1031 | 1011 | 209.3 |
| A | 13 | 254 | 14393 | 63.93 | 1031 | 1011 | 209.3 |
| B | 4 | 251 | 2337676 | 12231.34 | 984 | 957 | 191.0 |
| B | 5 | 172 | 487774 | 2548.2 | 984 | 957 | 191.0 |
| B | 5 | 200 | 112704 | 584.93 | 984 | 957 | 191.0 |
| C | 15 | 214 | 356300 | 1521.72 | 998 | 1004 | 233.5 |
| C | 0 | 10 | 336712 | 1437.82 | 998 | 1004 | 233.5 |
| C | 3 | 233 | 68541 | 289.26 | 998 | 1004 | 233.5 |
| D | 8 | 195 | 1382744 | 5761.32 | 985 | 959 | 239.8 |
| D | 13 | 249 | 544373 | 2265.75 | 985 | 959 | 239.8 |
| D | 12 | 235 | 376606 | 1566.25 | 985 | 959 | 239.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

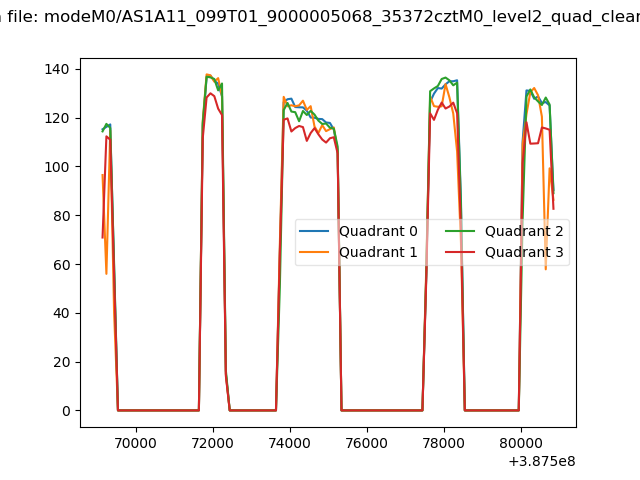

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

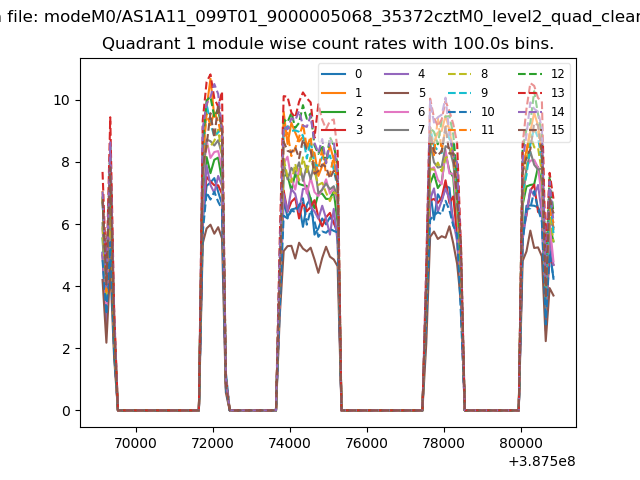

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

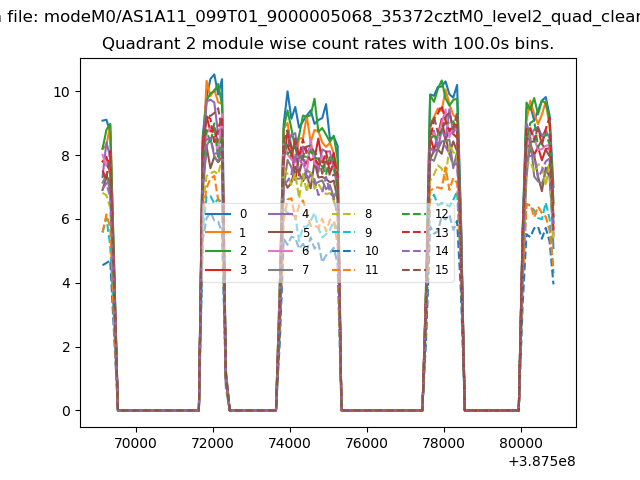

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

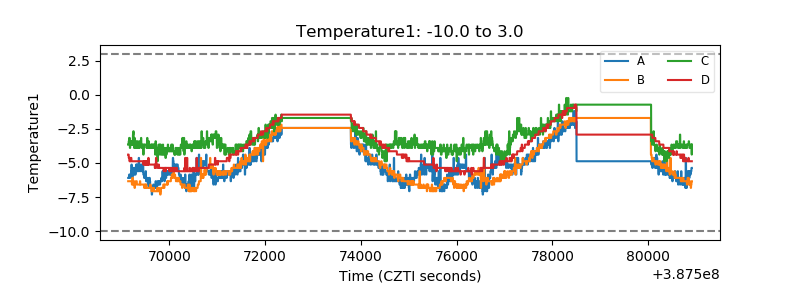

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

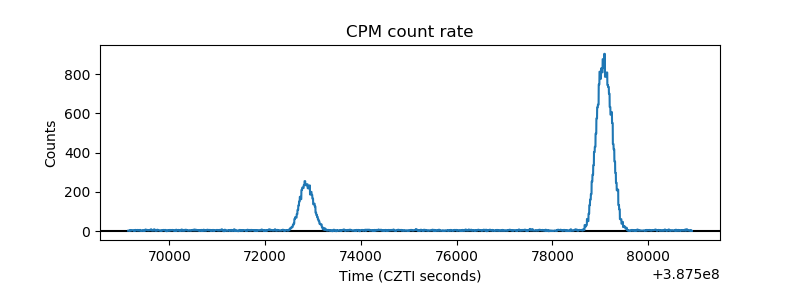

| _CPM_Rate |  |

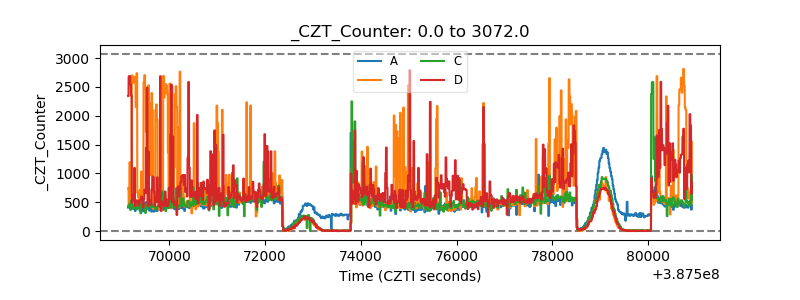

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

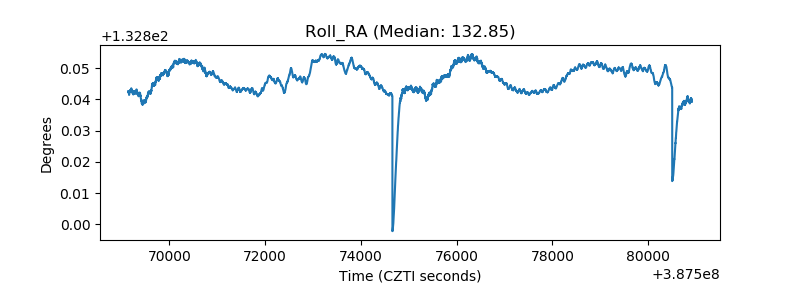

| _Roll_RA |  |

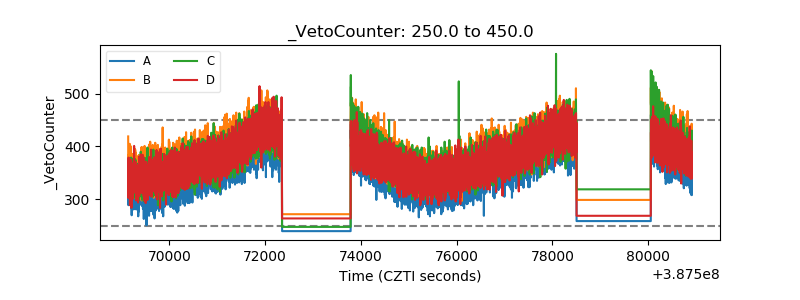

| Veto Counter |  |
