| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_099T01_9000005068_35396cztM0_level2.evt | modeM0/AS1A11_099T01_9000005068_35396cztM0_level2_quad_clean.evt |
| Size (bytes) | 816,243,840 | 73,952,640 |
| Size | 778.4 MB | 70.5 MB |
| Events in quadrant A | 2,759,275 | 557,458 |
| Events in quadrant B | 12,289,408 | 272,835 |
| Events in quadrant C | 3,332,969 | 544,181 |
| Events in quadrant D | 5,961,162 | 472,092 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11662 | 3 |
| B | 0 | 40233 | 2 |
| C | 0 | 13176 | 2 |
| D | 0 | 21418 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5581 | 12 | 0.215015% |
| B | 5581 | 4539 | 81.329511% |
| C | 5581 | 178 | 3.189393% |
| D | 5581 | 1018 | 18.240459% |

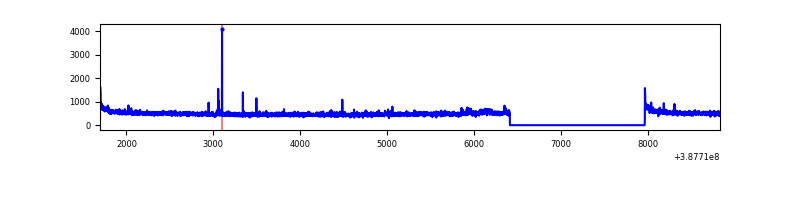

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7134 | 5582 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7134 | 5582 | 3975 | 3975 | 55.72% | 71.21% |  |
| C | 7134 | 5582 | 133 | 133 | 1.86% | 2.38% |  |
| D | 7134 | 5582 | 807 | 807 | 11.31% | 14.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 131943 | 979.32 | 661 | 647 | 134.1 |
| A | 7 | 48 | 31470 | 229.91 | 661 | 647 | 134.1 |
| A | 13 | 6 | 15631 | 111.76 | 661 | 647 | 134.1 |
| B | 4 | 251 | 3749393 | 53058.94 | 356 | 346 | 70.7 |
| B | 5 | 14 | 2127424 | 30103.78 | 356 | 346 | 70.7 |
| B | 5 | 31 | 2053055 | 29051.27 | 356 | 346 | 70.7 |
| C | 0 | 207 | 334888 | 2262.14 | 631 | 636 | 147.8 |
| C | 0 | 10 | 257379 | 1737.57 | 631 | 636 | 147.8 |
| C | 15 | 214 | 232814 | 1571.32 | 631 | 636 | 147.8 |
| D | 7 | 80 | 1623048 | 11045.33 | 594 | 578 | 146.9 |
| D | 1 | 52 | 1029465 | 7004.38 | 594 | 578 | 146.9 |
| D | 2 | 152 | 175136 | 1188.34 | 594 | 578 | 146.9 |

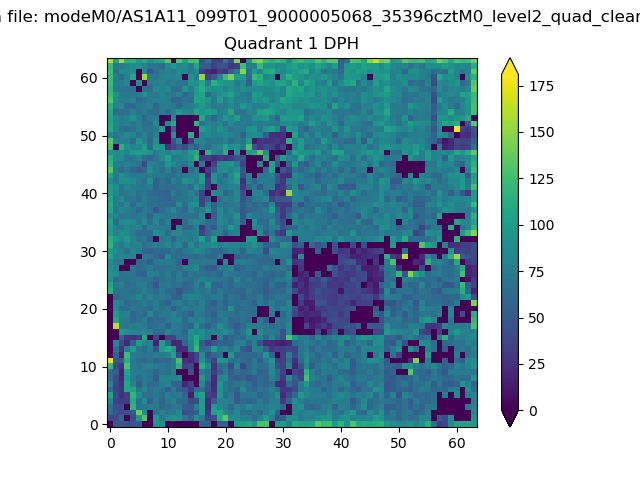

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

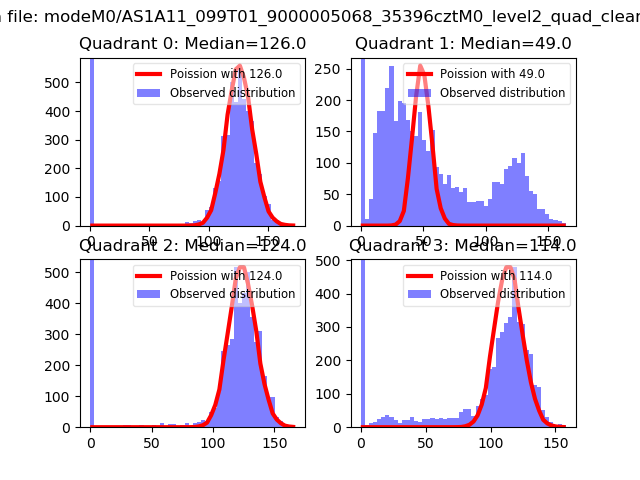

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

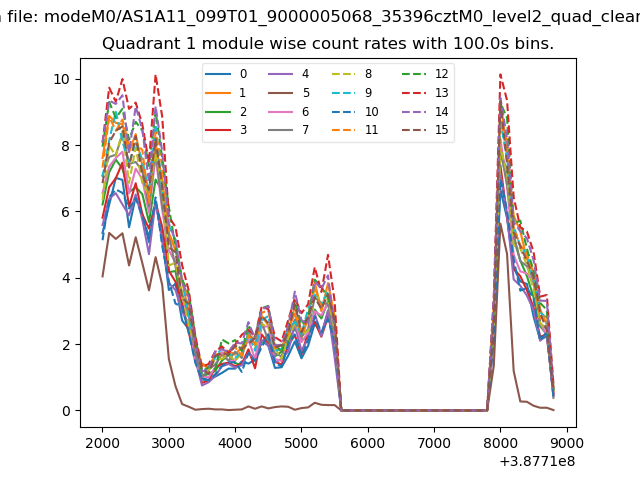

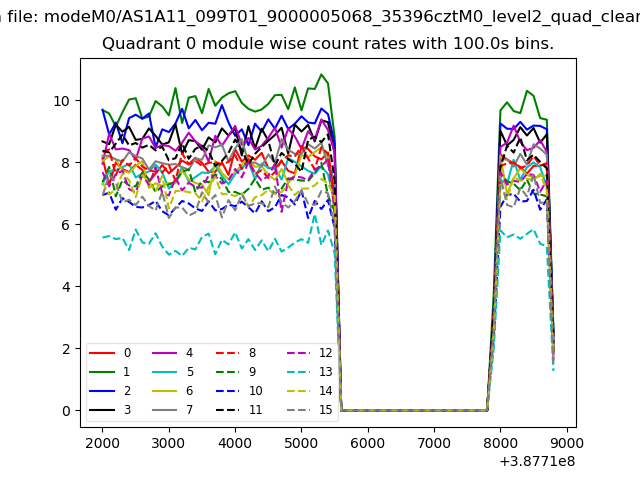

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

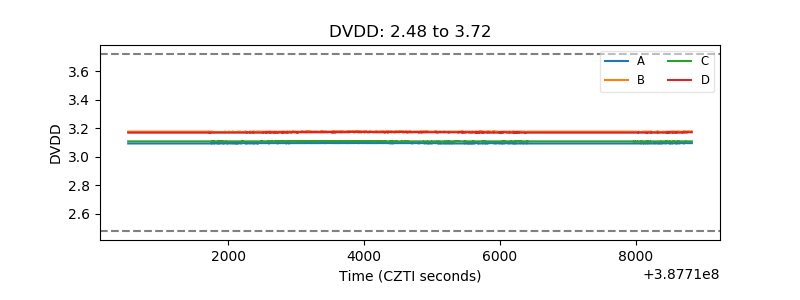

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

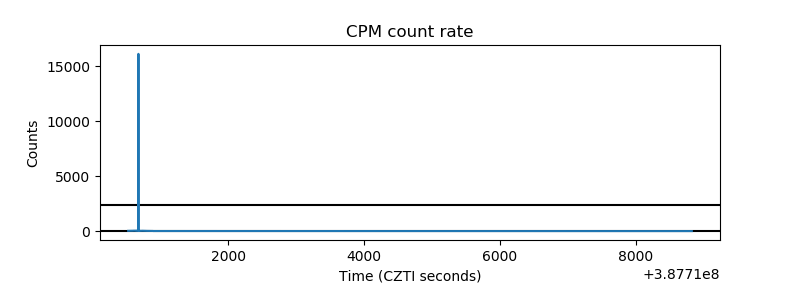

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

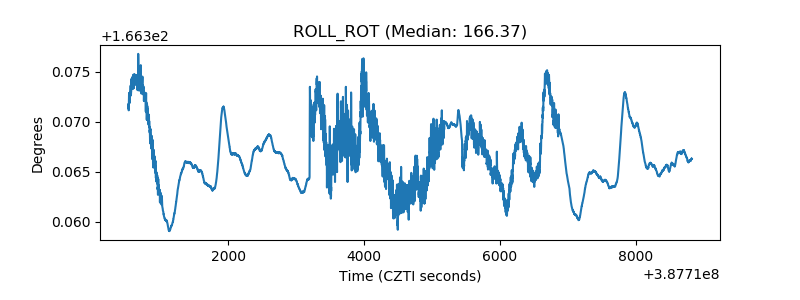

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
