| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_022T01_9000005070_35410cztM0_level2.evt | modeM0/AS1T05_022T01_9000005070_35410cztM0_level2_quad_clean.evt |
| Size (bytes) | 683,233,920 | 54,167,040 |
| Size | 651.6 MB | 51.7 MB |
| Events in quadrant A | 2,681,541 | 337,382 |
| Events in quadrant B | 10,250,502 | 260,896 |
| Events in quadrant C | 3,420,591 | 333,664 |
| Events in quadrant D | 3,960,606 | 315,918 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11395 | 2 |
| B | 0 | 34287 | 1 |
| C | 0 | 13516 | 1 |
| D | 0 | 15348 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5594 | 12 | 0.214516% |
| B | 5594 | 3259 | 58.258849% |
| C | 5594 | 64 | 1.144083% |
| D | 5594 | 291 | 5.202002% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7296 | 5595 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7296 | 5595 | 2842 | 2842 | 38.95% | 50.80% |  |
| C | 7296 | 5595 | 52 | 52 | 0.71% | 0.93% |  |
| D | 7296 | 5595 | 211 | 211 | 2.89% | 3.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 110586 | 833.68 | 654 | 641 | 131.9 |
| A | 7 | 16 | 20044 | 147.13 | 654 | 641 | 131.9 |
| A | 13 | 6 | 17279 | 126.16 | 654 | 641 | 131.9 |
| B | 4 | 251 | 3598804 | 39591.77 | 474 | 462 | 90.9 |
| B | 5 | 14 | 1249891 | 13747.19 | 474 | 462 | 90.9 |
| B | 5 | 31 | 1216561 | 13380.47 | 474 | 462 | 90.9 |
| C | 0 | 10 | 410799 | 2748.17 | 637 | 640 | 149.2 |
| C | 0 | 207 | 253768 | 1696.02 | 637 | 640 | 149.2 |
| C | 15 | 214 | 231006 | 1543.51 | 637 | 640 | 149.2 |
| D | 13 | 249 | 511311 | 3336.53 | 627 | 609 | 153.1 |
| D | 2 | 152 | 190466 | 1240.37 | 627 | 609 | 153.1 |
| D | 2 | 31 | 177403 | 1155.03 | 627 | 609 | 153.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

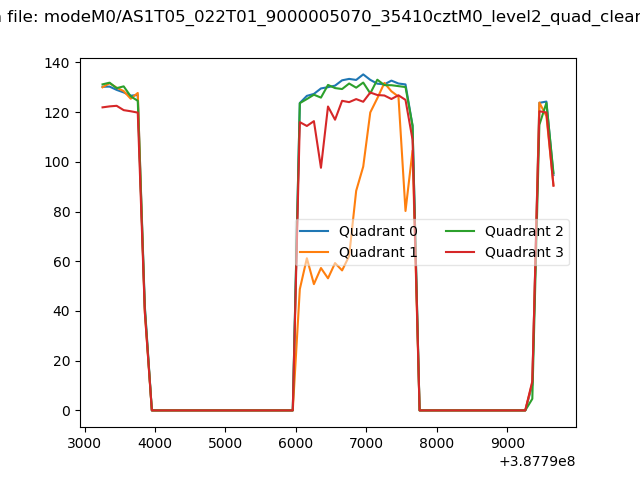

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

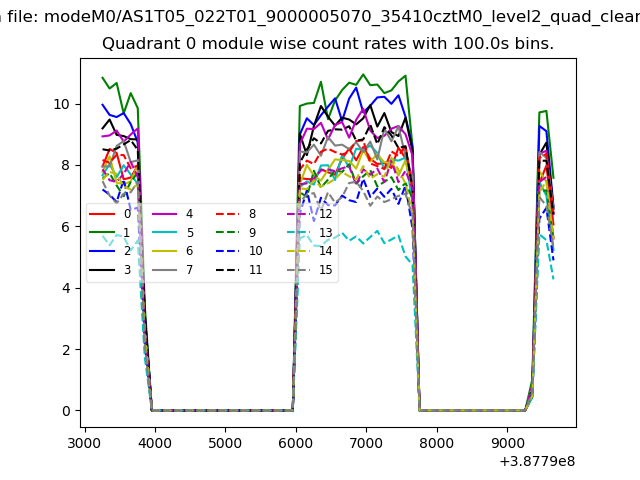

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

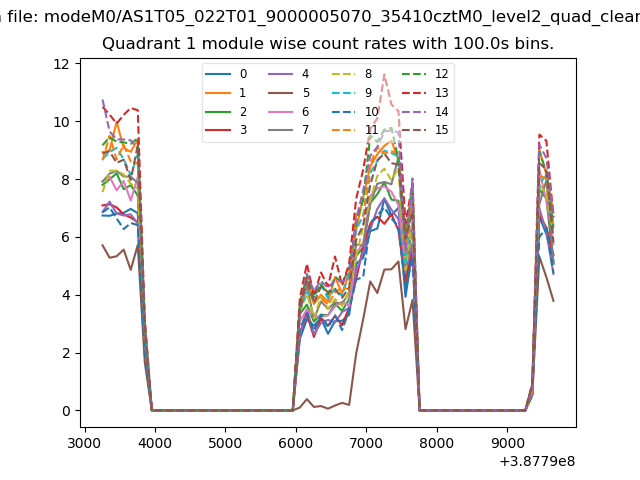

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
