| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_022T01_9000005070_35419cztM0_level2.evt | modeM0/AS1T05_022T01_9000005070_35419cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,887,360 | 84,386,880 |
| Size | 545.4 MB | 80.5 MB |
| Events in quadrant A | 2,572,408 | 571,650 |
| Events in quadrant B | 7,955,298 | 515,441 |
| Events in quadrant C | 3,013,695 | 563,242 |
| Events in quadrant D | 3,418,284 | 532,583 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11069 | 2 |
| B | 0 | 27342 | 2 |
| C | 0 | 12019 | 2 |
| D | 0 | 13592 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5311 | 5 | 0.094144% |
| B | 5311 | 2084 | 39.239315% |
| C | 5311 | 138 | 2.598381% |
| D | 5311 | 191 | 3.596310% |

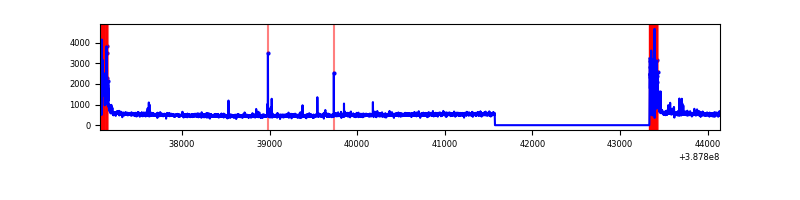

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7075 | 5312 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7075 | 5312 | 1776 | 1776 | 25.10% | 33.43% |  |
| C | 7075 | 5312 | 101 | 101 | 1.43% | 1.90% |  |
| D | 7075 | 5312 | 146 | 146 | 2.06% | 2.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 126534 | 990.08 | 626 | 614 | 127.2 |
| A | 13 | 6 | 17390 | 131.91 | 626 | 614 | 127.2 |
| A | 9 | 143 | 8149 | 59.25 | 626 | 614 | 127.2 |
| B | 4 | 251 | 1538720 | 15362.86 | 524 | 511 | 100.1 |
| B | 5 | 31 | 1104765 | 11028.73 | 524 | 511 | 100.1 |
| B | 5 | 15 | 1097194 | 10953.12 | 524 | 511 | 100.1 |
| C | 0 | 10 | 394530 | 2731.45 | 613 | 618 | 144.2 |
| C | 15 | 214 | 215973 | 1493.31 | 613 | 618 | 144.2 |
| C | 0 | 207 | 8846 | 57.05 | 613 | 618 | 144.2 |
| D | 7 | 80 | 268705 | 1798.23 | 606 | 592 | 149.1 |
| D | 13 | 249 | 215444 | 1441.01 | 606 | 592 | 149.1 |
| D | 2 | 153 | 163667 | 1093.74 | 606 | 592 | 149.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

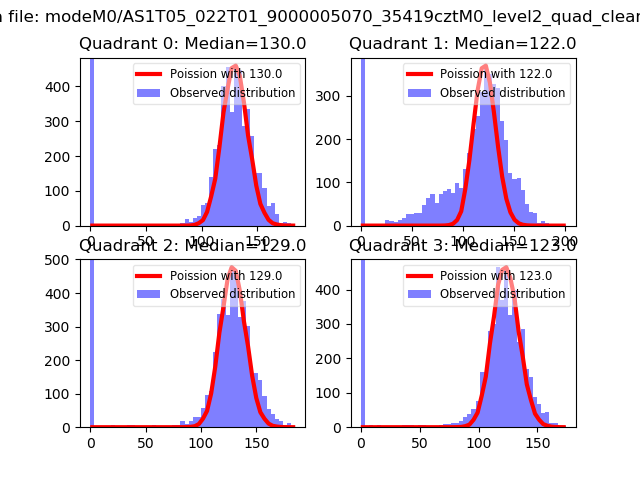

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

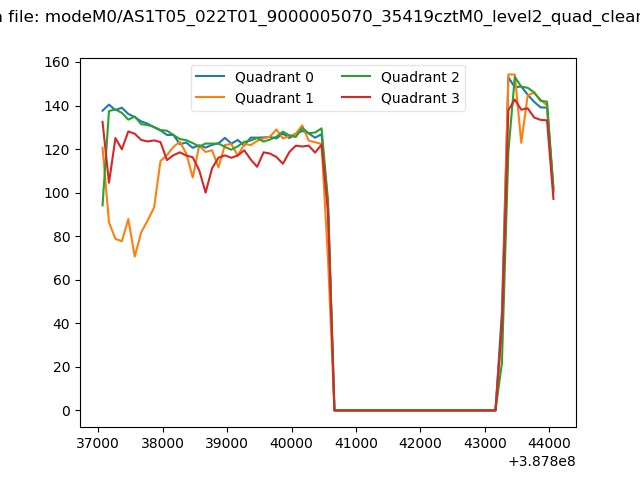

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

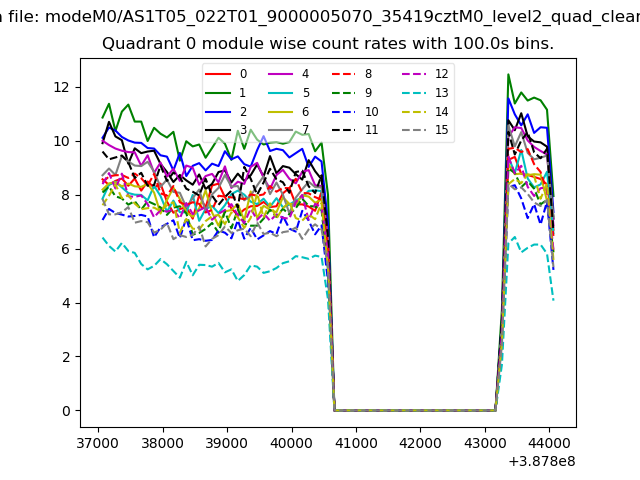

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

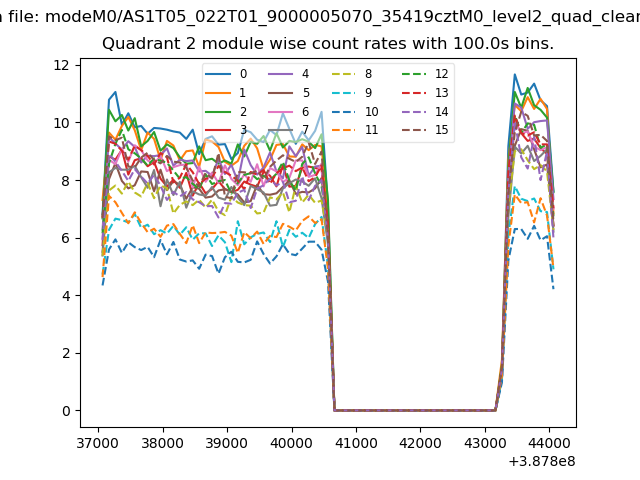

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

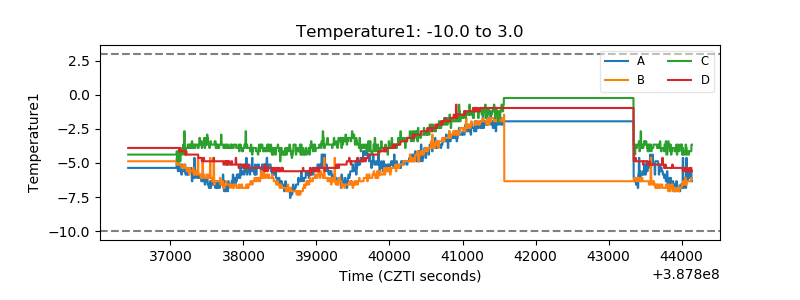

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

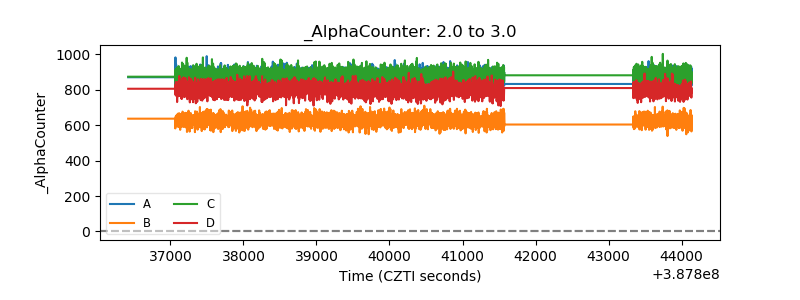

| Alpha Counter |  |
| _CPM_Rate |  |

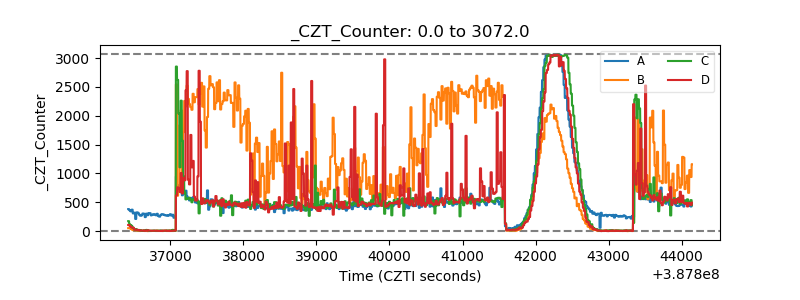

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
