| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T07_9000005072_35425cztM0_level2.evt | modeM0/AS1A11_097T07_9000005072_35425cztM0_level2_quad_clean.evt |
| Size (bytes) | 712,840,320 | 77,748,480 |
| Size | 679.8 MB | 74.1 MB |
| Events in quadrant A | 2,866,890 | 531,516 |
| Events in quadrant B | 10,804,054 | 386,079 |
| Events in quadrant C | 3,747,853 | 522,291 |
| Events in quadrant D | 3,766,086 | 496,436 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12201 | 3 |
| B | 0 | 36200 | 2 |
| C | 0 | 14742 | 2 |
| D | 0 | 14874 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 35 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5970 | 6 | 0.100503% |
| B | 5970 | 3239 | 54.254606% |
| C | 5970 | 104 | 1.742044% |
| D | 5970 | 145 | 2.428811% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9407 | 5972 | 1 | 1 | 0.01% | 0.02% |  |
| B | 9407 | 5972 | 2656 | 2656 | 28.23% | 44.47% |  |
| C | 9407 | 5972 | 78 | 78 | 0.83% | 1.31% |  |
| D | 9407 | 5972 | 106 | 106 | 1.13% | 1.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 134350 | 940.81 | 703 | 689 | 142.1 |
| A | 13 | 6 | 11077 | 73.12 | 703 | 689 | 142.1 |
| A | 13 | 254 | 9405 | 61.35 | 703 | 689 | 142.1 |
| B | 4 | 251 | 3785205 | 34695.74 | 562 | 548 | 109.1 |
| B | 5 | 31 | 1237177 | 11336.76 | 562 | 548 | 109.1 |
| B | 5 | 15 | 1223549 | 11211.83 | 562 | 548 | 109.1 |
| C | 0 | 207 | 474260 | 2994.3 | 679 | 685 | 158.2 |
| C | 0 | 10 | 352627 | 2225.25 | 679 | 685 | 158.2 |
| C | 15 | 214 | 246391 | 1553.54 | 679 | 685 | 158.2 |
| D | 7 | 80 | 236526 | 1428.42 | 676 | 659 | 165.1 |
| D | 2 | 250 | 168175 | 1014.48 | 676 | 659 | 165.1 |
| D | 8 | 195 | 163532 | 986.36 | 676 | 659 | 165.1 |

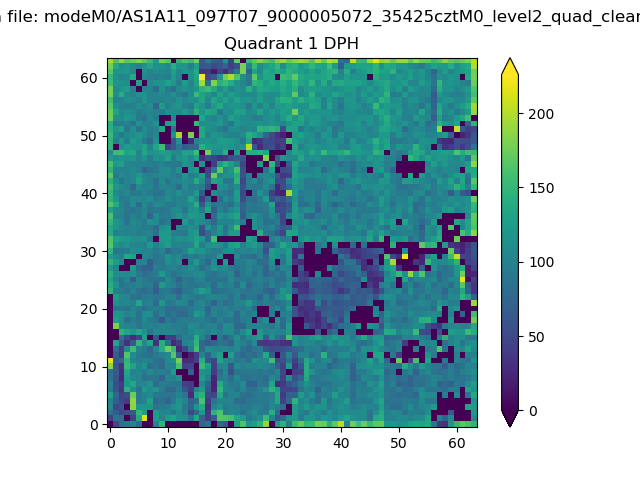

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

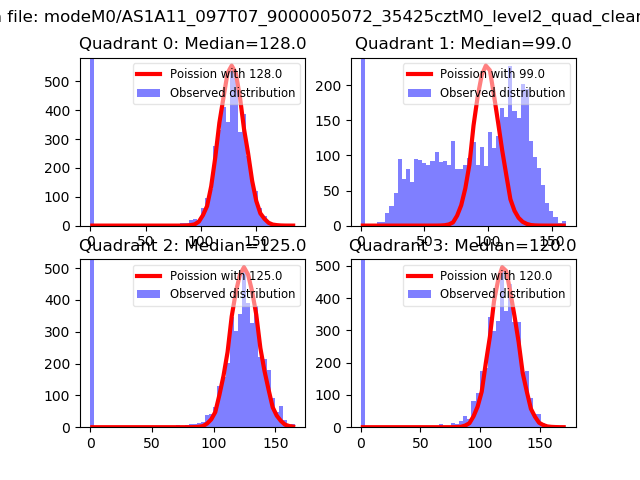

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

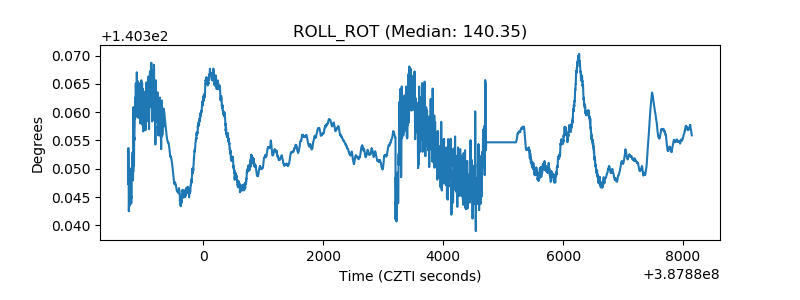

| _ROLL_ROT |  |
| _Roll_DEC |  |

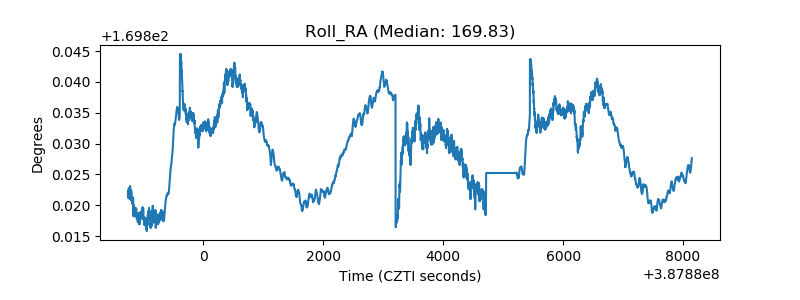

| _Roll_RA |  |
| Veto Counter |  |
