| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T17_9000005074_35434cztM0_level2.evt | modeM0/AS1A11_097T17_9000005074_35434cztM0_level2_quad_clean.evt |
| Size (bytes) | 316,500,480 | 29,252,160 |
| Size | 301.8 MB | 27.9 MB |
| Events in quadrant A | 1,581,284 | 166,086 |
| Events in quadrant B | 3,559,419 | 169,270 |
| Events in quadrant C | 2,030,342 | 164,385 |
| Events in quadrant D | 2,197,822 | 159,731 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6566 | 2 |
| B | 0 | 12790 | 1 |
| C | 0 | 7979 | 1 |
| D | 0 | 8602 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3177 | 2 | 0.062952% |
| B | 3177 | 531 | 16.713881% |
| C | 3177 | 78 | 2.455146% |
| D | 3177 | 89 | 2.801385% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5120 | 3178 | 0 | 0 | 0.00% | 0.00% |  |

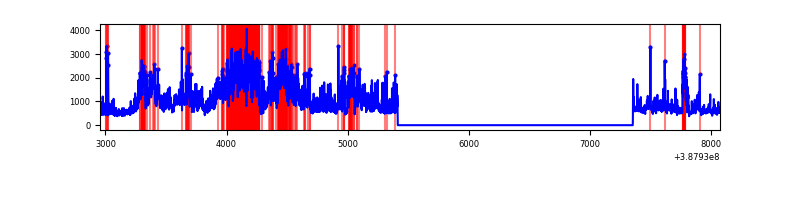

| B | 5120 | 3178 | 319 | 319 | 6.23% | 10.04% |  |
| C | 5120 | 3178 | 67 | 67 | 1.31% | 2.11% |  |
| D | 5120 | 3178 | 77 | 77 | 1.50% | 2.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 66214 | 834.2 | 390 | 383 | 78.9 |
| A | 13 | 254 | 5070 | 59.39 | 390 | 383 | 78.9 |
| A | 3 | 137 | 3996 | 45.78 | 390 | 383 | 78.9 |
| B | 5 | 236 | 1074607 | 14912.58 | 373 | 364 | 72.0 |
| B | 4 | 251 | 971444 | 13480.48 | 373 | 364 | 72.0 |
| B | 5 | 172 | 13379 | 180.67 | 373 | 364 | 72.0 |
| C | 0 | 10 | 265847 | 3037.2 | 373 | 375 | 87.4 |
| C | 15 | 214 | 128872 | 1470.1 | 373 | 375 | 87.4 |
| C | 4 | 254 | 92445 | 1053.35 | 373 | 375 | 87.4 |
| D | 7 | 80 | 444274 | 4824.89 | 372 | 360 | 92.0 |
| D | 1 | 52 | 90685 | 981.74 | 372 | 360 | 92.0 |
| D | 2 | 249 | 64480 | 696.92 | 372 | 360 | 92.0 |

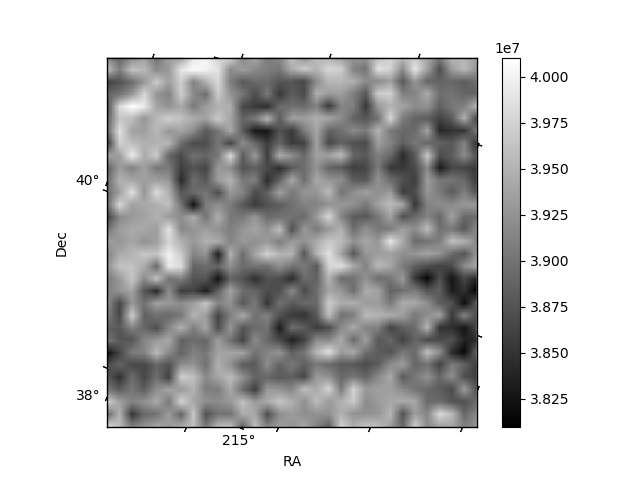

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

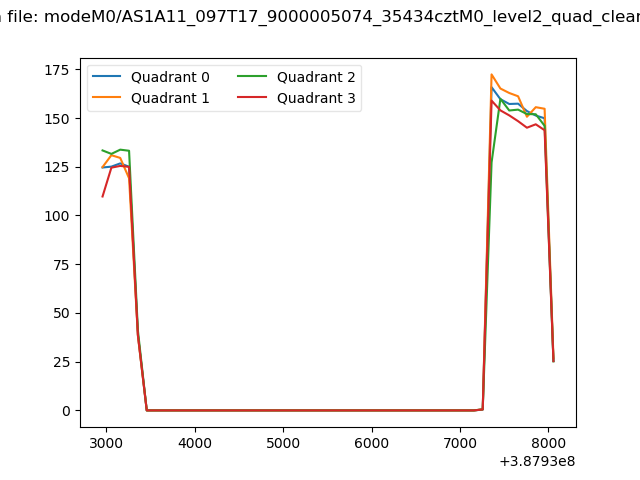

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

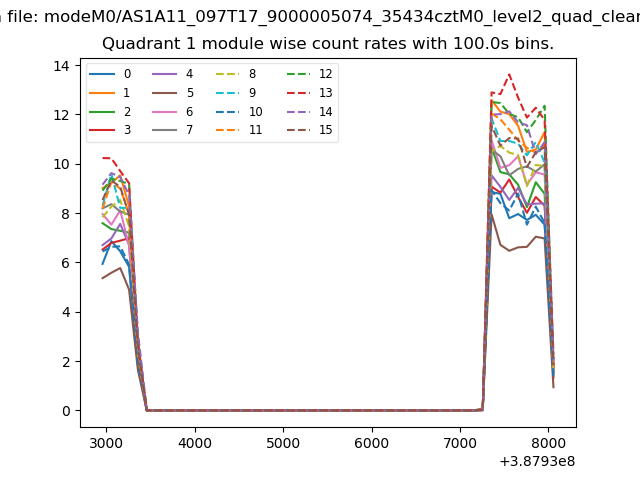

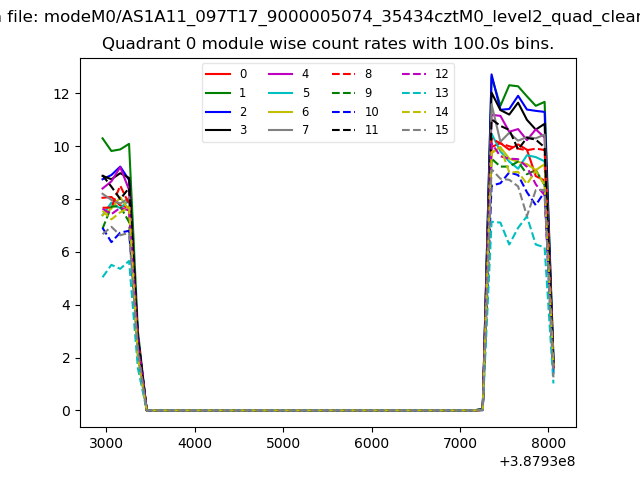

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

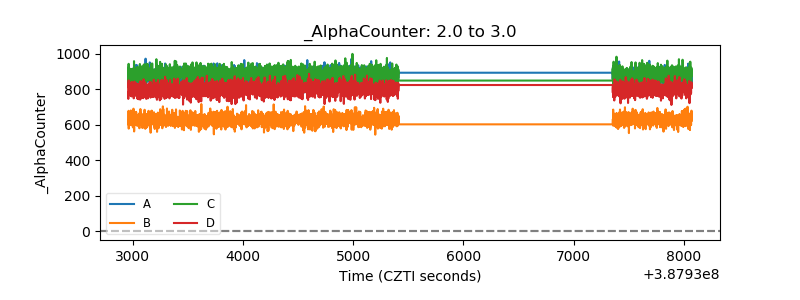

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

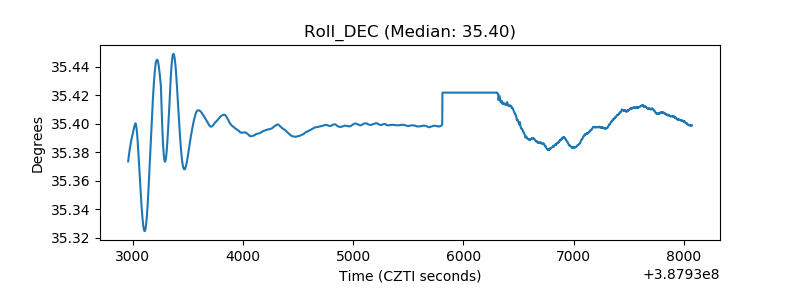

| _Roll_DEC |  |
| _Roll_RA |  |

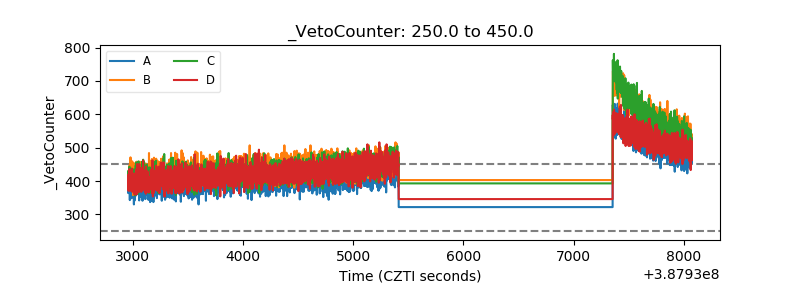

| Veto Counter |  |
