| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T17_9000005074_35437cztM0_level2.evt | modeM0/AS1A11_097T17_9000005074_35437cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,272,000 | 58,343,040 |
| Size | 453.3 MB | 55.6 MB |
| Events in quadrant A | 2,395,356 | 367,703 |
| Events in quadrant B | 5,383,080 | 357,522 |
| Events in quadrant C | 2,982,010 | 357,766 |
| Events in quadrant D | 3,306,994 | 345,239 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9938 | 3 |
| B | 0 | 19293 | 2 |
| C | 0 | 11659 | 2 |
| D | 0 | 13002 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4809 | 6 | 0.124766% |
| B | 4809 | 596 | 12.393429% |
| C | 4809 | 125 | 2.599293% |
| D | 4809 | 121 | 2.516116% |

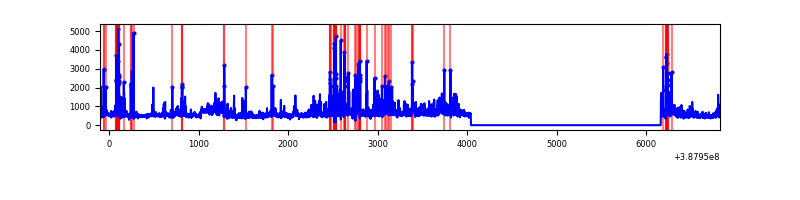

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6932 | 4810 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6932 | 4810 | 346 | 346 | 4.99% | 7.19% |  |
| C | 6932 | 4810 | 103 | 103 | 1.49% | 2.14% |  |
| D | 6932 | 4810 | 88 | 88 | 1.27% | 1.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 121327 | 1031.16 | 586 | 575 | 117.1 |
| A | 13 | 6 | 7840 | 62.04 | 586 | 575 | 117.1 |
| A | 13 | 254 | 7638 | 60.31 | 586 | 575 | 117.1 |
| B | 4 | 251 | 2874629 | 26538.0 | 565 | 552 | 108.3 |
| B | 5 | 172 | 108147 | 993.49 | 565 | 552 | 108.3 |
| B | 5 | 236 | 88972 | 816.43 | 565 | 552 | 108.3 |
| C | 0 | 10 | 370862 | 2882.82 | 554 | 559 | 128.5 |
| C | 0 | 207 | 202724 | 1573.86 | 554 | 559 | 128.5 |
| C | 15 | 214 | 198734 | 1542.8 | 554 | 559 | 128.5 |
| D | 13 | 249 | 410825 | 3054.91 | 557 | 541 | 134.3 |
| D | 1 | 52 | 345910 | 2571.57 | 557 | 541 | 134.3 |
| D | 7 | 80 | 109891 | 814.2 | 557 | 541 | 134.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

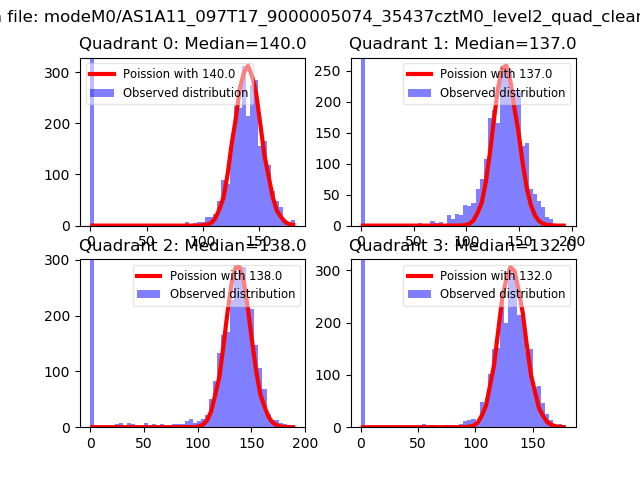

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

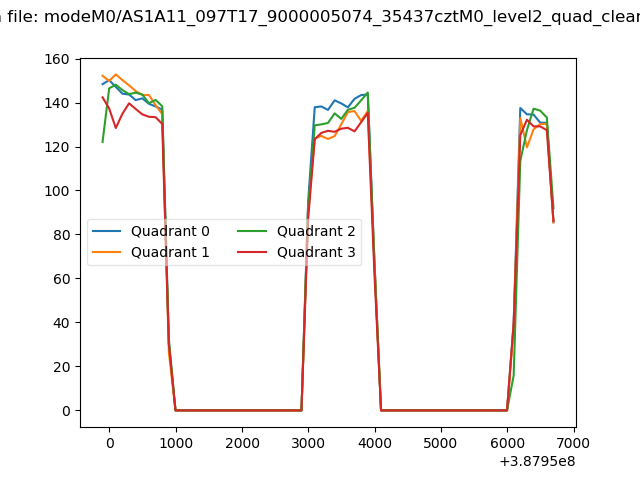

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

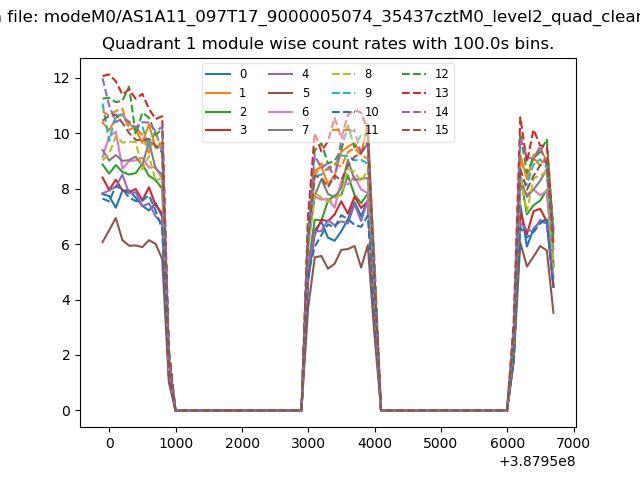

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

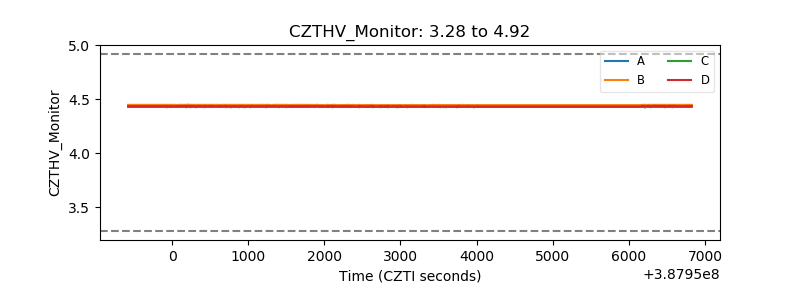

| CZT HV Monitor |  |
| D_VDD |  |

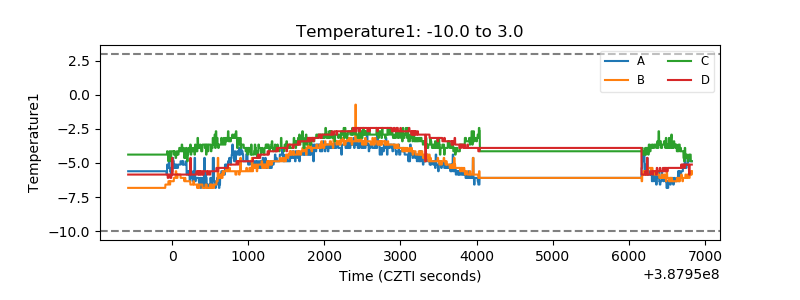

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

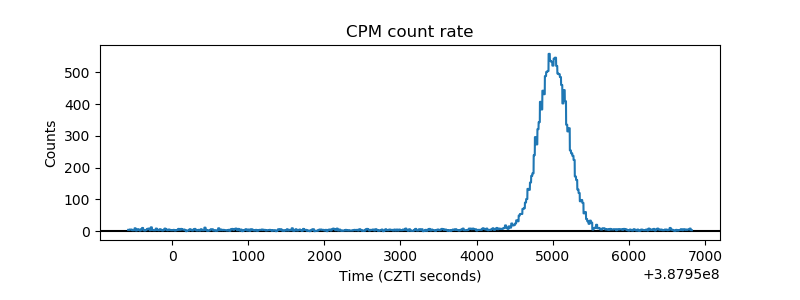

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

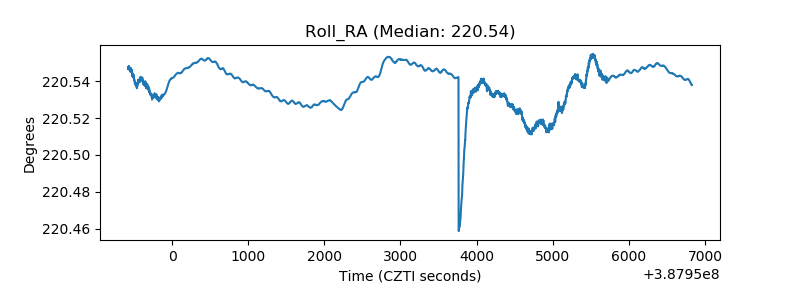

| _Roll_RA |  |
| Veto Counter |  |
