| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_095T06_9000005078_35460cztM0_level2.evt | modeM0/AS1A11_095T06_9000005078_35460cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,734,400 | 70,928,640 |
| Size | 386.9 MB | 67.6 MB |
| Events in quadrant A | 2,590,898 | 451,253 |
| Events in quadrant B | 2,954,516 | 454,082 |
| Events in quadrant C | 3,436,827 | 437,018 |
| Events in quadrant D | 2,938,204 | 427,101 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11251 | 3 |
| B | 0 | 12237 | 2 |
| C | 0 | 13638 | 2 |
| D | 0 | 12164 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5402 | 8 | 0.148093% |
| B | 5402 | 65 | 1.203258% |
| C | 5402 | 175 | 3.239541% |
| D | 5402 | 67 | 1.240281% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

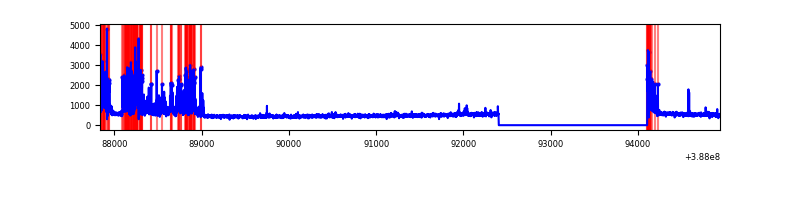

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7105 | 5403 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7105 | 5403 | 37 | 37 | 0.52% | 0.68% |  |
| C | 7105 | 5403 | 142 | 142 | 2.00% | 2.63% |  |
| D | 7105 | 5403 | 57 | 57 | 0.80% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 126116 | 983.59 | 630 | 618 | 127.6 |
| A | 15 | 169 | 15674 | 118.0 | 630 | 618 | 127.6 |
| A | 13 | 6 | 12377 | 92.16 | 630 | 618 | 127.6 |
| B | 5 | 236 | 296785 | 2445.34 | 625 | 608 | 121.1 |
| B | 5 | 200 | 111209 | 913.16 | 625 | 608 | 121.1 |
| B | 4 | 251 | 47979 | 391.11 | 625 | 608 | 121.1 |
| C | 0 | 10 | 790024 | 5569.53 | 610 | 615 | 141.7 |
| C | 15 | 214 | 221514 | 1558.51 | 610 | 615 | 141.7 |
| C | 0 | 207 | 42163 | 293.13 | 610 | 615 | 141.7 |
| D | 2 | 153 | 150829 | 1014.23 | 612 | 596 | 148.1 |
| D | 8 | 195 | 145811 | 980.35 | 612 | 596 | 148.1 |
| D | 13 | 249 | 137381 | 923.44 | 612 | 596 | 148.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

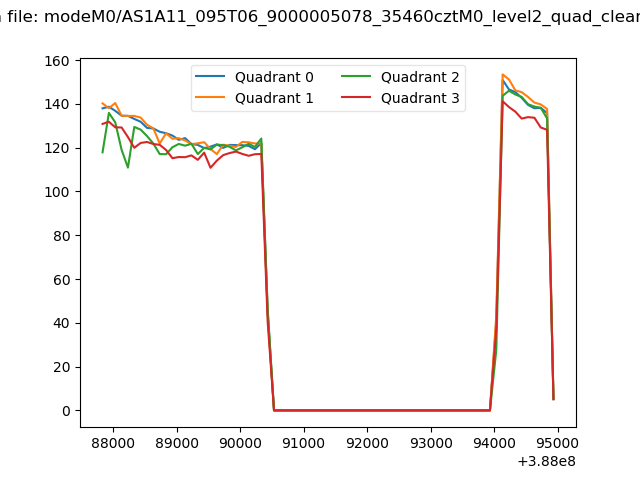

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

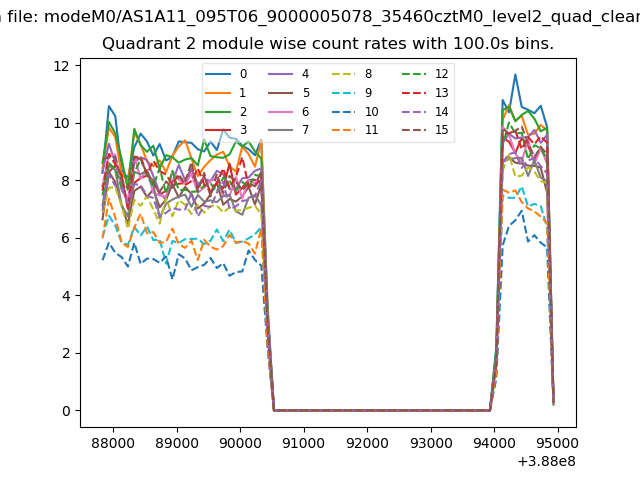

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

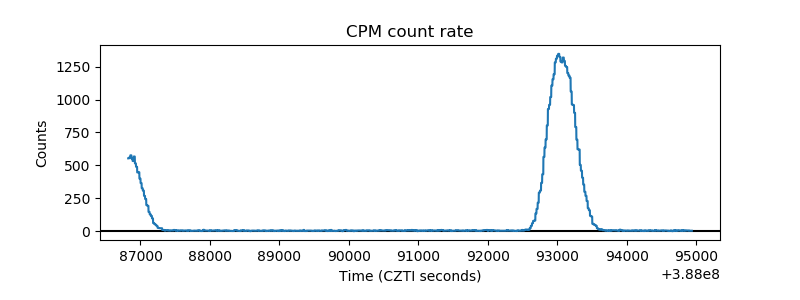

| _CPM_Rate |  |

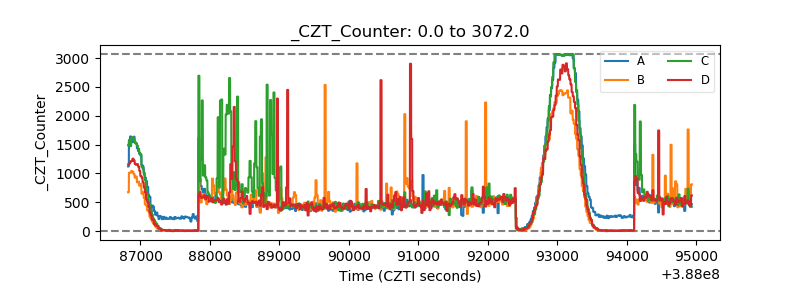

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

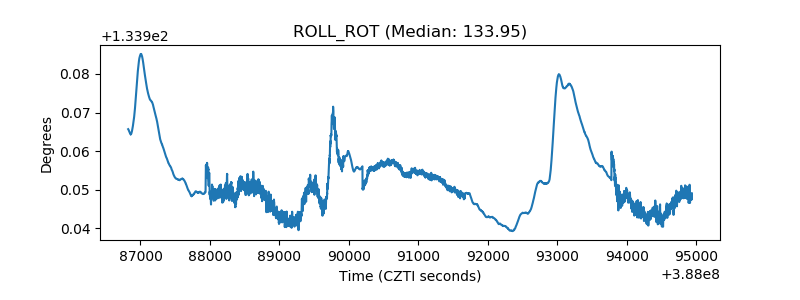

| _ROLL_ROT |  |

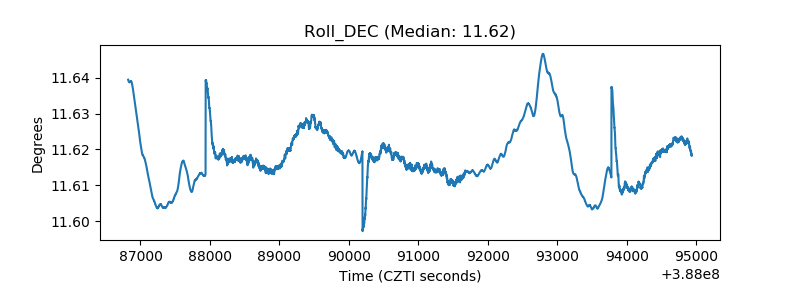

| _Roll_DEC |  |
| _Roll_RA |  |

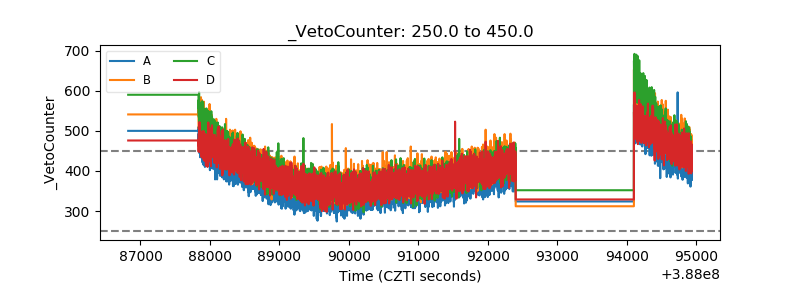

| Veto Counter |  |
