| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_095T06_9000005078_35466cztM0_level2.evt | modeM0/AS1A11_095T06_9000005078_35466cztM0_level2_quad_clean.evt |
| Size (bytes) | 680,875,200 | 89,153,280 |
| Size | 649.3 MB | 85.0 MB |
| Events in quadrant A | 4,462,715 | 533,996 |
| Events in quadrant B | 4,592,307 | 548,506 |
| Events in quadrant C | 5,476,629 | 514,227 |
| Events in quadrant D | 5,489,782 | 488,674 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43 | 0 |
| B | 0 | 43 | 0 |
| C | 0 | 43 | 0 |
| D | 0 | 43 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18361 | 3 |
| B | 0 | 18674 | 2 |
| C | 0 | 21491 | 2 |
| D | 0 | 22135 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 180 | 0 |
| B | 0 | 180 | 0 |
| C | 0 | 180 | 0 |
| D | 0 | 180 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8852 | 12 | 0.135563% |
| B | 8852 | 59 | 0.666516% |
| C | 8852 | 188 | 2.123814% |
| D | 8852 | 152 | 1.717126% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13128 | 8854 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13128 | 8854 | 22 | 22 | 0.17% | 0.25% |  |
| C | 13128 | 8854 | 145 | 145 | 1.10% | 1.64% |  |
| D | 13128 | 8854 | 135 | 135 | 1.03% | 1.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 169323 | 763.31 | 1103 | 1085 | 220.4 |
| A | 13 | 6 | 24775 | 107.48 | 1103 | 1085 | 220.4 |
| A | 13 | 254 | 13717 | 57.31 | 1103 | 1085 | 220.4 |
| B | 5 | 172 | 108597 | 515.34 | 1101 | 1076 | 208.6 |
| B | 5 | 236 | 72182 | 340.81 | 1101 | 1076 | 208.6 |
| B | 12 | 111 | 25886 | 118.91 | 1101 | 1076 | 208.6 |
| C | 0 | 10 | 494399 | 2022.5 | 1055 | 1063 | 243.9 |
| C | 0 | 207 | 491933 | 2012.39 | 1055 | 1063 | 243.9 |
| C | 15 | 214 | 362848 | 1483.19 | 1055 | 1063 | 243.9 |
| D | 7 | 80 | 631355 | 2484.11 | 1045 | 1020 | 253.7 |
| D | 8 | 195 | 329262 | 1293.58 | 1045 | 1020 | 253.7 |
| D | 13 | 249 | 154653 | 605.46 | 1045 | 1020 | 253.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

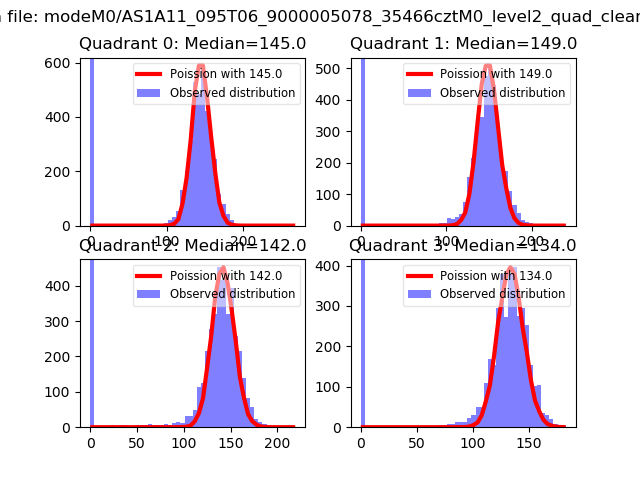

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

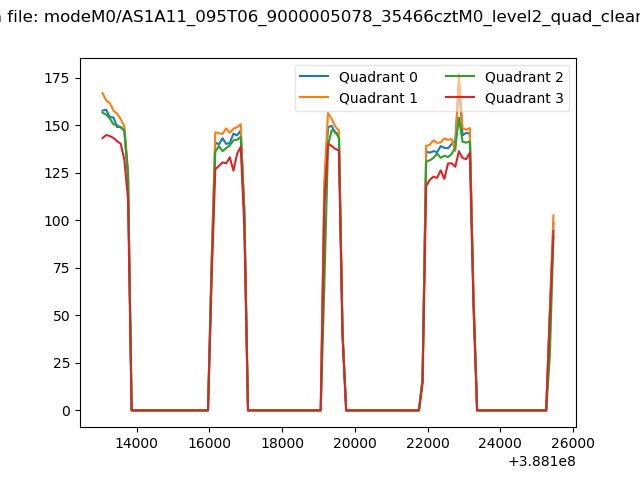

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
