| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T22_9000005082_35496cztM0_level2.evt | modeM0/AS1A11_097T22_9000005082_35496cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,949,440 | 68,840,640 |
| Size | 478.7 MB | 65.7 MB |
| Events in quadrant A | 5,934,018 | 403,683 |
| Events in quadrant B | 2,664,673 | 448,568 |
| Events in quadrant C | 3,253,871 | 441,569 |
| Events in quadrant D | 2,992,079 | 422,419 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21109 | 4 |
| B | 0 | 11352 | 2 |
| C | 0 | 12886 | 2 |
| D | 0 | 12532 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5253 | 1516 | 28.859699% |
| B | 5253 | 69 | 1.313535% |
| C | 5253 | 142 | 2.703217% |
| D | 5253 | 134 | 2.550923% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

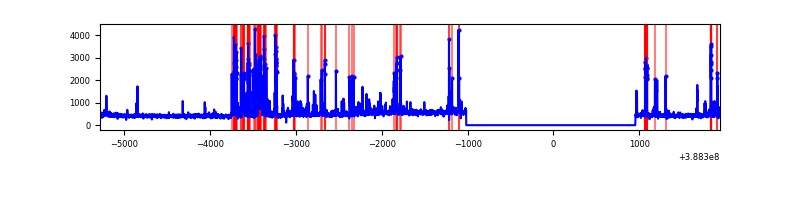

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7227 | 5255 | 1391 | 1391 | 19.25% | 26.47% |  |
| B | 7227 | 5255 | 36 | 36 | 0.50% | 0.69% |  |
| C | 7227 | 5255 | 125 | 125 | 1.73% | 2.38% |  |
| D | 7227 | 5255 | 128 | 128 | 1.77% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 3882584 | 38467.6 | 499 | 487 | 100.9 |
| A | 10 | 83 | 117434 | 1158.82 | 499 | 487 | 100.9 |
| A | 13 | 254 | 6251 | 57.12 | 499 | 487 | 100.9 |
| B | 5 | 236 | 123979 | 1083.96 | 595 | 579 | 113.8 |
| B | 5 | 172 | 123290 | 1077.9 | 595 | 579 | 113.8 |
| B | 4 | 232 | 36742 | 317.66 | 595 | 579 | 113.8 |
| C | 0 | 10 | 325074 | 2439.05 | 577 | 582 | 133.0 |
| C | 15 | 214 | 217562 | 1630.93 | 577 | 582 | 133.0 |
| C | 0 | 207 | 216780 | 1625.06 | 577 | 582 | 133.0 |
| D | 7 | 80 | 356145 | 2552.48 | 578 | 562 | 139.3 |
| D | 8 | 195 | 106441 | 760.03 | 578 | 562 | 139.3 |
| D | 7 | 223 | 73516 | 523.69 | 578 | 562 | 139.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

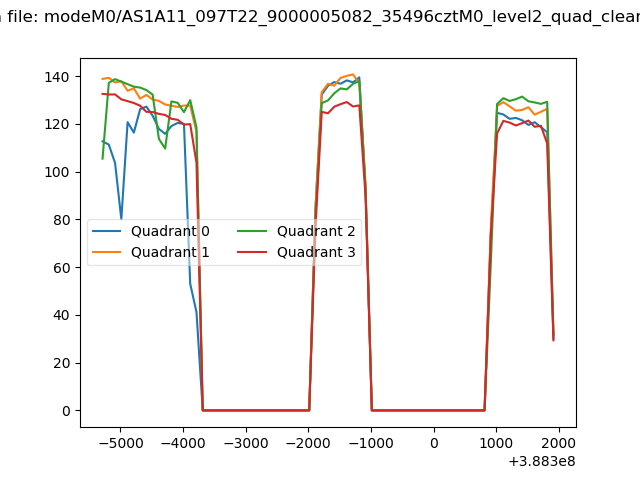

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

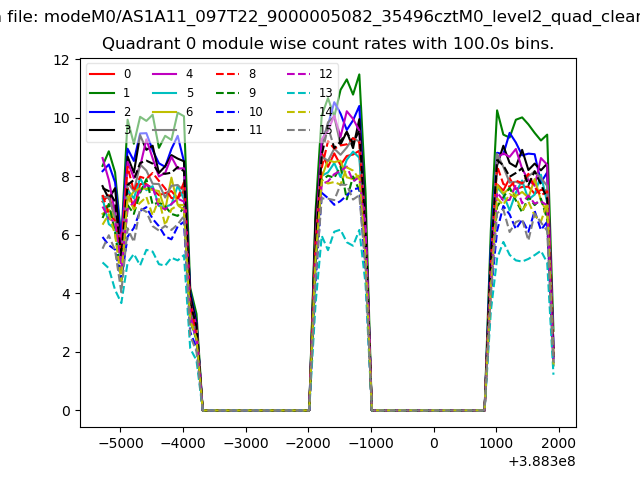

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

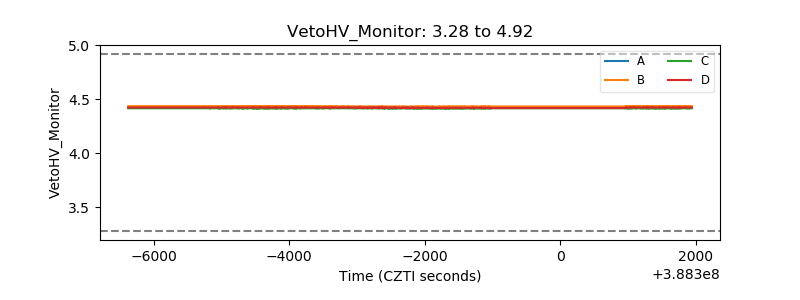

| Veto HV Monitor |  |
| Veto LLD |  |

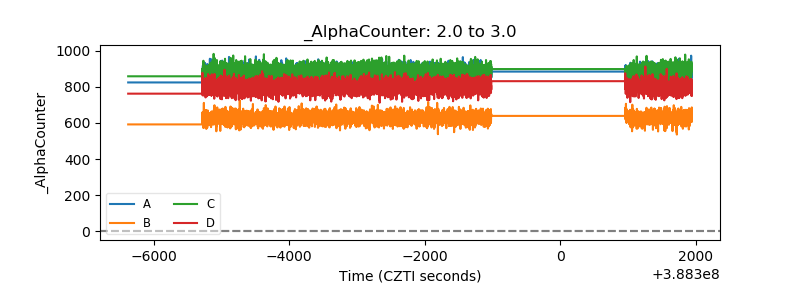

| Alpha Counter |  |
| _CPM_Rate |  |

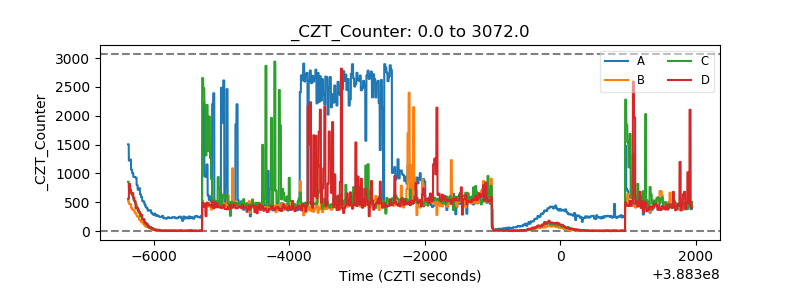

| CZT Counter |  |

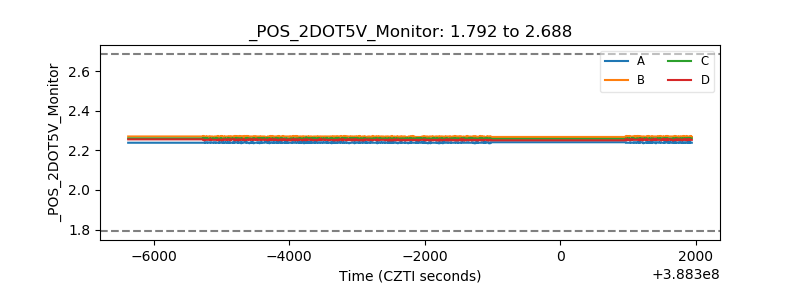

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

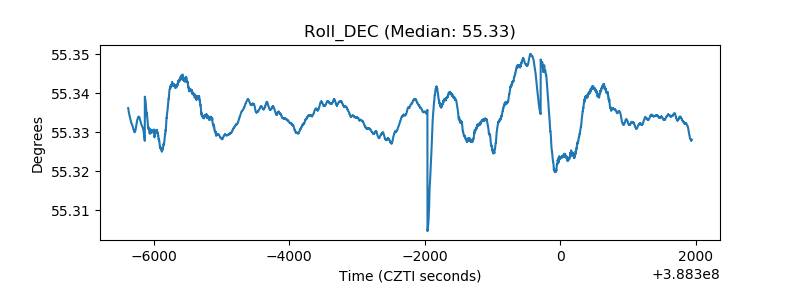

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
