| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T22_9000005082_35503cztM0_level2.evt | modeM0/AS1A11_097T22_9000005082_35503cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,749,120 | 93,306,240 |
| Size | 425.1 MB | 89.0 MB |
| Events in quadrant A | 2,785,783 | 609,144 |
| Events in quadrant B | 3,369,653 | 614,380 |
| Events in quadrant C | 3,070,921 | 628,373 |
| Events in quadrant D | 3,894,662 | 583,862 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12052 | 3 |
| B | 0 | 13759 | 2 |
| C | 0 | 12434 | 2 |
| D | 0 | 15399 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5577 | 10 | 0.179308% |
| B | 5577 | 198 | 3.550296% |
| C | 5577 | 106 | 1.900663% |
| D | 5577 | 248 | 4.446835% |

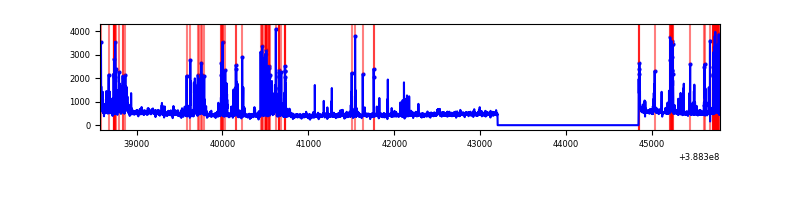

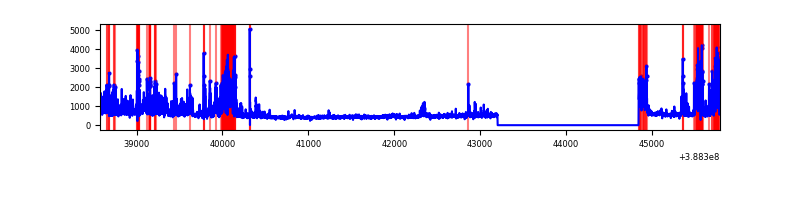

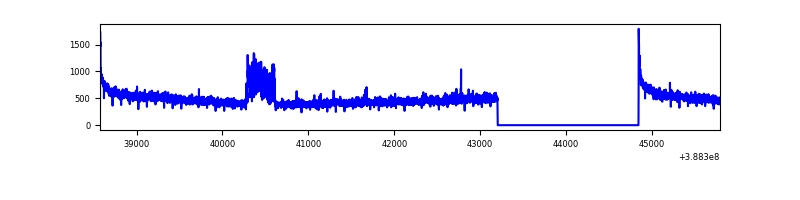

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7219 | 5578 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7219 | 5578 | 126 | 126 | 1.75% | 2.26% |  |
| C | 7219 | 5578 | 64 | 64 | 0.89% | 1.15% |  |
| D | 7219 | 5578 | 195 | 195 | 2.70% | 3.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 157934 | 1216.63 | 642 | 628 | 129.3 |
| A | 10 | 83 | 138937 | 1069.7 | 642 | 628 | 129.3 |
| A | 13 | 254 | 8029 | 57.24 | 642 | 628 | 129.3 |
| B | 5 | 172 | 767836 | 6315.76 | 635 | 617 | 121.5 |
| B | 0 | 219 | 32560 | 262.96 | 635 | 617 | 121.5 |
| B | 5 | 200 | 16792 | 133.15 | 635 | 617 | 121.5 |
| C | 0 | 10 | 281668 | 1909.31 | 635 | 638 | 147.2 |
| C | 15 | 214 | 230011 | 1558.35 | 635 | 638 | 147.2 |
| C | 14 | 67 | 48092 | 322.4 | 635 | 638 | 147.2 |
| D | 12 | 217 | 618781 | 4092.08 | 624 | 605 | 151.1 |
| D | 8 | 195 | 180030 | 1187.72 | 624 | 605 | 151.1 |
| D | 10 | 199 | 168234 | 1109.64 | 624 | 605 | 151.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

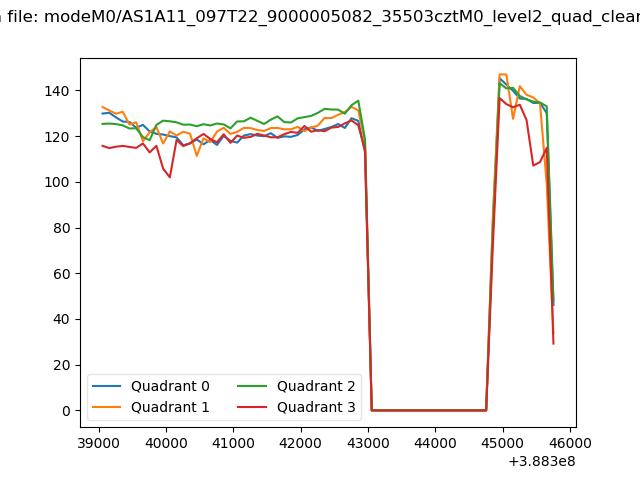

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

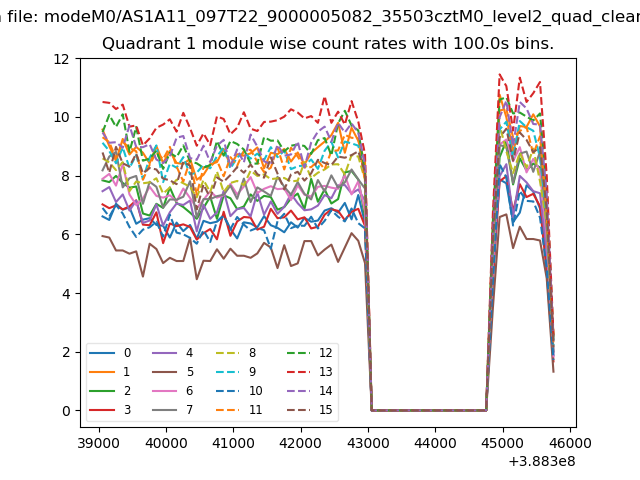

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

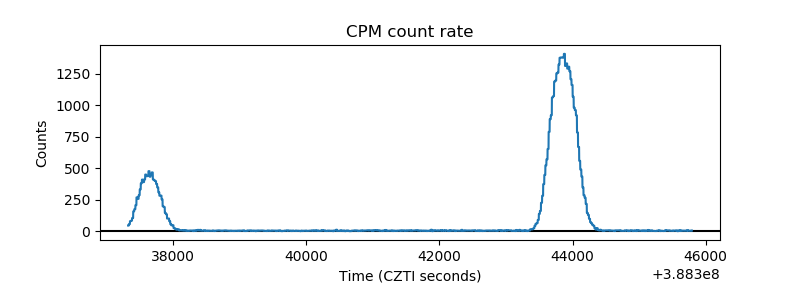

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

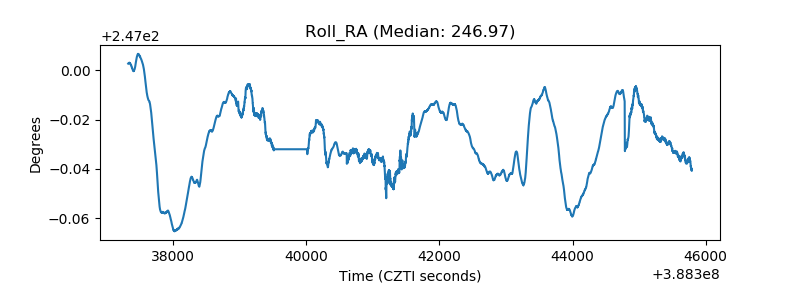

| _Roll_RA |  |

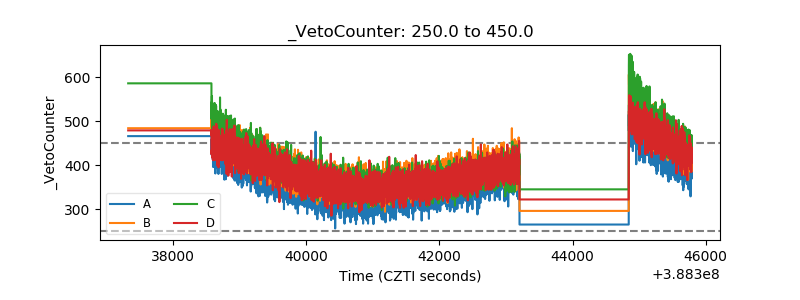

| Veto Counter |  |
