| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T07_9000005084_35506cztM0_level2.evt | modeM0/AS1A11_097T07_9000005084_35506cztM0_level2_quad_clean.evt |
| Size (bytes) | 309,012,480 | 40,711,680 |
| Size | 294.7 MB | 38.8 MB |
| Events in quadrant A | 2,219,367 | 232,911 |
| Events in quadrant B | 2,450,755 | 245,225 |
| Events in quadrant C | 2,214,073 | 243,700 |
| Events in quadrant D | 2,205,638 | 232,479 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 80 | 0 |
| B | 0 | 80 | 0 |
| C | 0 | 80 | 0 |
| D | 0 | 80 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9069 | 2 |
| B | 0 | 9773 | 1 |
| C | 0 | 8874 | 1 |
| D | 0 | 9151 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3939 | 177 | 4.493526% |
| B | 3939 | 119 | 3.021071% |
| C | 3939 | 39 | 0.990099% |
| D | 3939 | 53 | 1.345519% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5851 | 3940 | 162 | 162 | 2.77% | 4.11% |  |
| B | 5851 | 3940 | 64 | 64 | 1.09% | 1.62% |  |
| C | 5851 | 3940 | 23 | 23 | 0.39% | 0.58% |  |
| D | 5851 | 3940 | 51 | 51 | 0.87% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 366011 | 3945.15 | 460 | 451 | 92.7 |
| A | 10 | 83 | 73019 | 783.16 | 460 | 451 | 92.7 |
| A | 13 | 254 | 4990 | 48.99 | 460 | 451 | 92.7 |
| B | 5 | 172 | 347572 | 3901.65 | 465 | 454 | 89.0 |
| B | 5 | 200 | 246413 | 2764.61 | 465 | 454 | 89.0 |
| B | 4 | 232 | 12474 | 135.11 | 465 | 454 | 89.0 |
| C | 0 | 10 | 195476 | 1819.67 | 459 | 463 | 107.2 |
| C | 15 | 214 | 161082 | 1498.74 | 459 | 463 | 107.2 |
| C | 0 | 207 | 30793 | 283.01 | 459 | 463 | 107.2 |
| D | 2 | 249 | 265905 | 2433.15 | 452 | 442 | 109.1 |
| D | 8 | 195 | 50961 | 463.04 | 452 | 442 | 109.1 |
| D | 2 | 250 | 45726 | 415.06 | 452 | 442 | 109.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

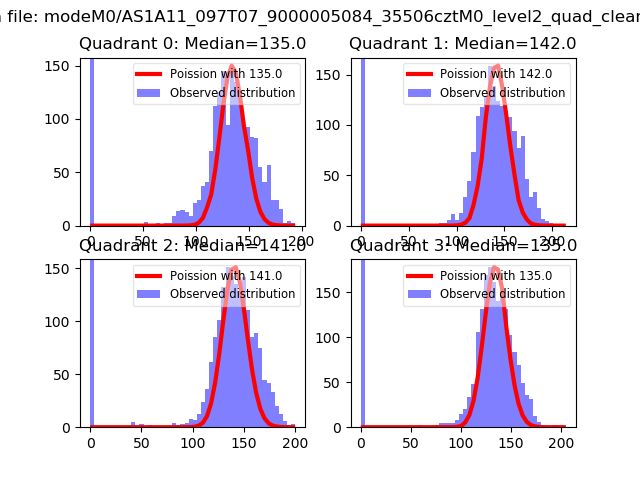

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

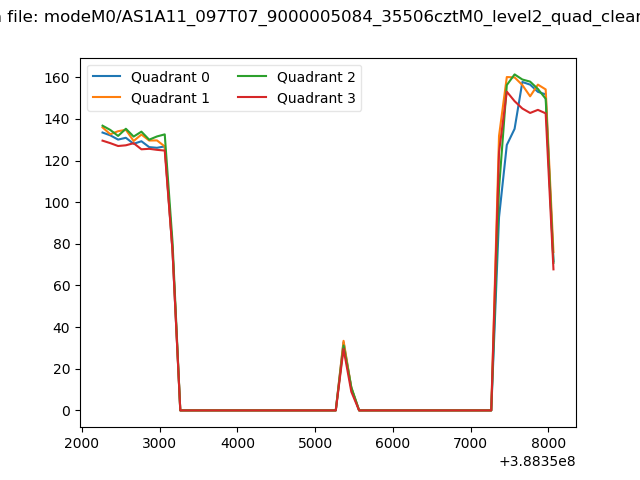

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

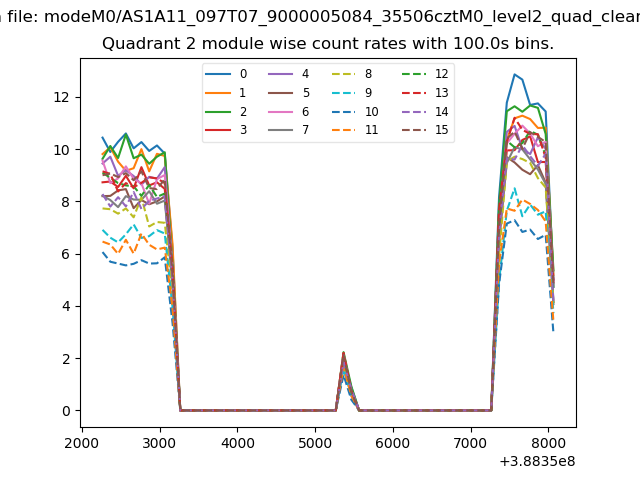

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

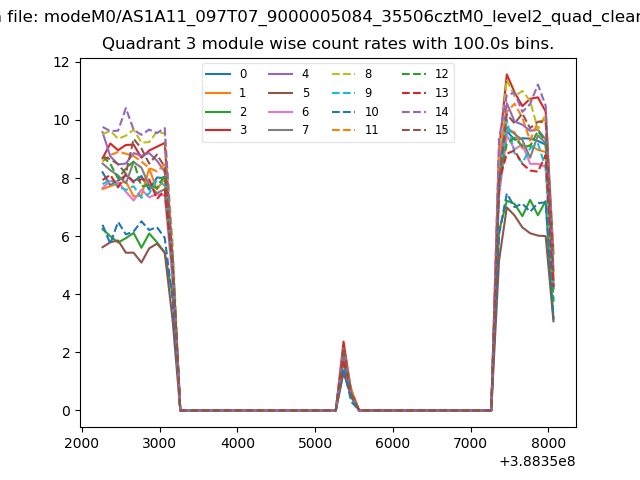

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

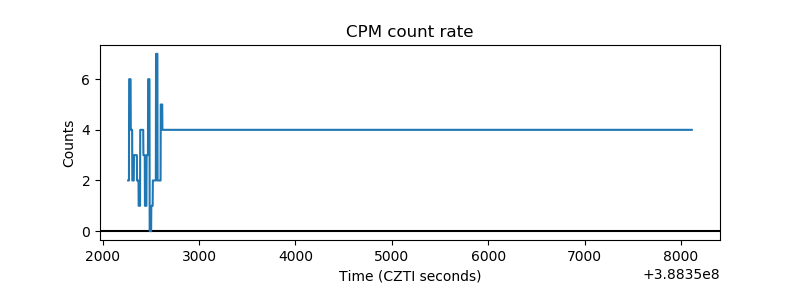

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

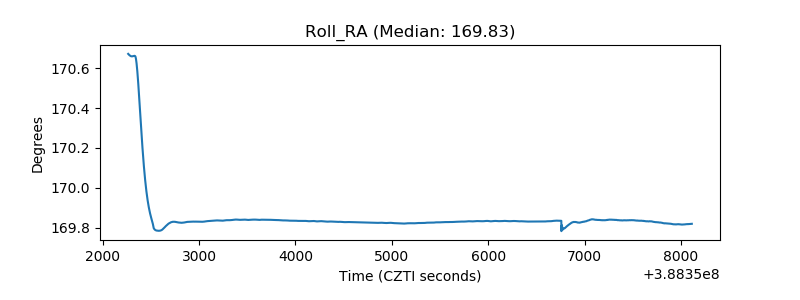

| _Roll_RA |  |
| Veto Counter |  |
