| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T07_9000005084_35507cztM0_level2.evt | modeM0/AS1A11_097T07_9000005084_35507cztM0_level2_quad_clean.evt |
| Size (bytes) | 421,848,000 | 66,453,120 |
| Size | 402.3 MB | 63.4 MB |
| Events in quadrant A | 2,925,643 | 416,154 |
| Events in quadrant B | 3,327,278 | 430,753 |
| Events in quadrant C | 3,268,093 | 415,290 |
| Events in quadrant D | 2,909,658 | 393,815 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11759 | 3 |
| B | 0 | 13056 | 2 |
| C | 0 | 12797 | 2 |
| D | 0 | 11899 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5077 | 180 | 3.545401% |
| B | 5077 | 153 | 3.013591% |
| C | 5077 | 138 | 2.718141% |
| D | 5077 | 94 | 1.851487% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

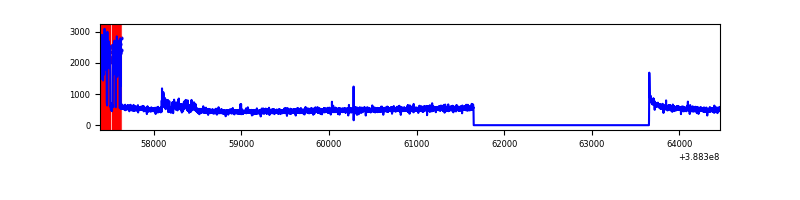

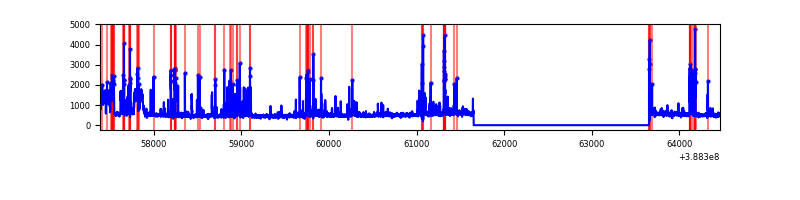

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7081 | 5078 | 162 | 162 | 2.29% | 3.19% |  |
| B | 7081 | 5078 | 96 | 96 | 1.36% | 1.89% |  |
| C | 7081 | 5078 | 93 | 93 | 1.31% | 1.83% |  |
| D | 7081 | 5078 | 84 | 84 | 1.19% | 1.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 410788 | 3305.84 | 617 | 606 | 124.1 |
| A | 10 | 83 | 121130 | 971.36 | 617 | 606 | 124.1 |
| A | 13 | 6 | 9200 | 69.26 | 617 | 606 | 124.1 |
| B | 5 | 172 | 444086 | 3755.57 | 621 | 606 | 118.1 |
| B | 5 | 200 | 303562 | 2565.55 | 621 | 606 | 118.1 |
| B | 4 | 232 | 73375 | 616.24 | 621 | 606 | 118.1 |
| C | 0 | 10 | 474449 | 3407.49 | 602 | 609 | 139.1 |
| C | 15 | 214 | 208882 | 1497.74 | 602 | 609 | 139.1 |
| C | 0 | 207 | 128667 | 920.89 | 602 | 609 | 139.1 |
| D | 7 | 80 | 200441 | 1373.51 | 598 | 582 | 145.5 |
| D | 10 | 118 | 134099 | 917.58 | 598 | 582 | 145.5 |
| D | 13 | 249 | 62210 | 423.53 | 598 | 582 | 145.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

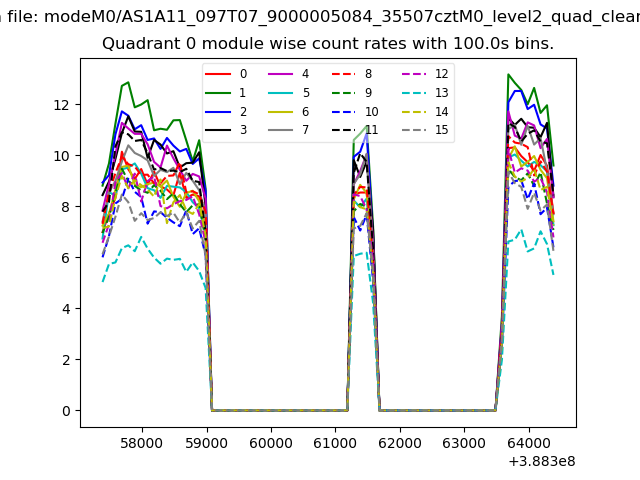

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

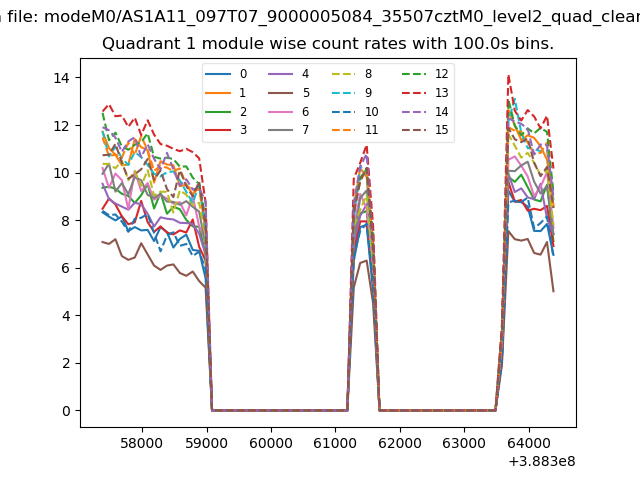

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

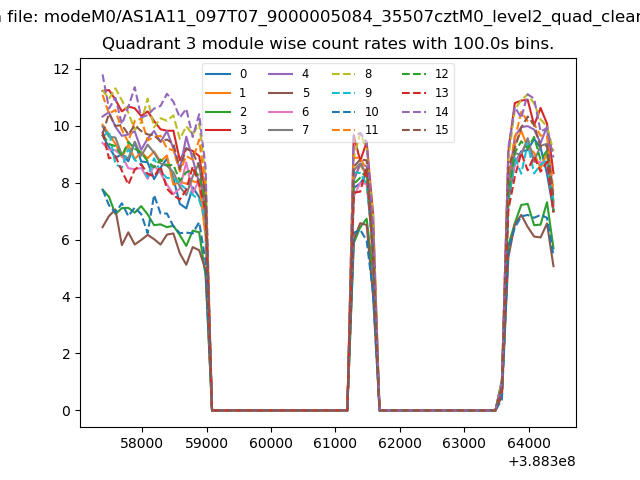

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

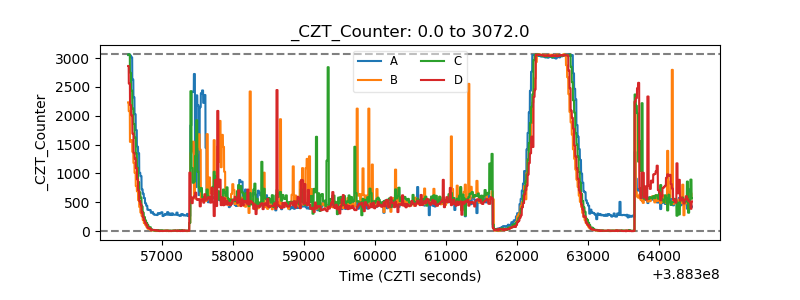

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

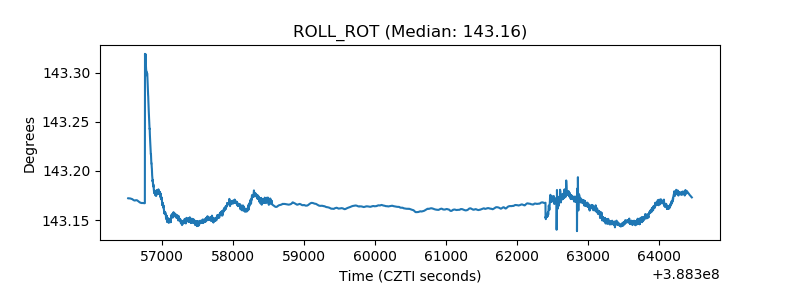

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

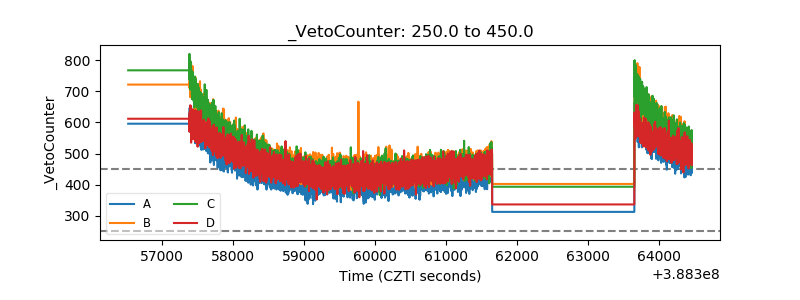

| Veto Counter |  |
