| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_093T01_9000005090_35551cztM0_level2.evt | modeM0/AS1A11_093T01_9000005090_35551cztM0_level2_quad_clean.evt |
| Size (bytes) | 697,392,000 | 74,517,120 |
| Size | 665.1 MB | 71.1 MB |
| Events in quadrant A | 11,798,254 | 46,760 |
| Events in quadrant B | 2,895,448 | 632,213 |
| Events in quadrant C | 2,993,229 | 638,947 |
| Events in quadrant D | 3,100,035 | 591,602 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38419 | 3 |
| B | 0 | 11648 | 2 |
| C | 0 | 11815 | 2 |
| D | 0 | 12455 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 38 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4917 | 4916 | 99.979662% |
| B | 4917 | 172 | 3.498068% |
| C | 4917 | 155 | 3.152329% |
| D | 4917 | 163 | 3.315029% |

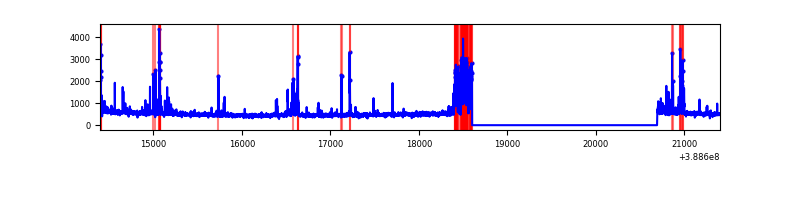

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7008 | 4916 | 4726 | 4726 | 67.44% | 96.14% |  |
| B | 7009 | 4918 | 90 | 90 | 1.28% | 1.83% |  |
| C | 7009 | 4918 | 114 | 114 | 1.63% | 2.32% |  |
| D | 7009 | 4918 | 118 | 118 | 1.68% | 2.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 11458005 | 654276.78 | 78 | 76 | 17.5 |
| A | 10 | 83 | 25700 | 1463.2 | 78 | 76 | 17.5 |
| A | 9 | 143 | 7262 | 410.34 | 78 | 76 | 17.5 |
| B | 5 | 172 | 455761 | 4089.53 | 600 | 585 | 111.3 |
| B | 15 | 85 | 32310 | 285.03 | 600 | 585 | 111.3 |
| B | 0 | 189 | 24522 | 215.06 | 600 | 585 | 111.3 |
| C | 0 | 10 | 356549 | 2597.28 | 601 | 607 | 137.0 |
| C | 15 | 214 | 216964 | 1578.74 | 601 | 607 | 137.0 |
| C | 9 | 187 | 60508 | 437.09 | 601 | 607 | 137.0 |
| D | 2 | 250 | 276085 | 1945.85 | 587 | 572 | 141.6 |
| D | 2 | 153 | 158712 | 1116.88 | 587 | 572 | 141.6 |
| D | 10 | 118 | 148765 | 1046.63 | 587 | 572 | 141.6 |

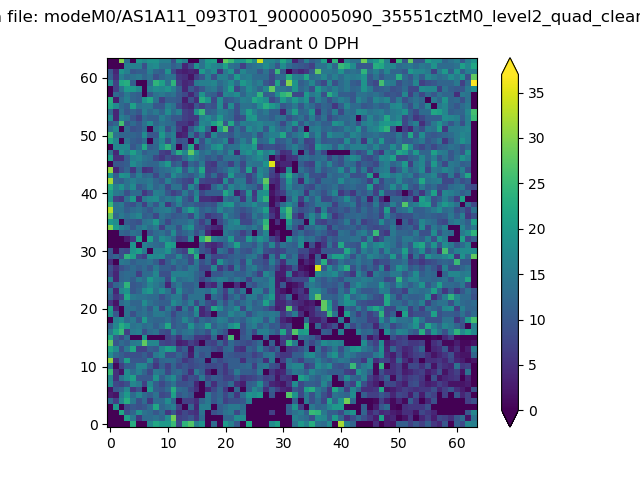

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

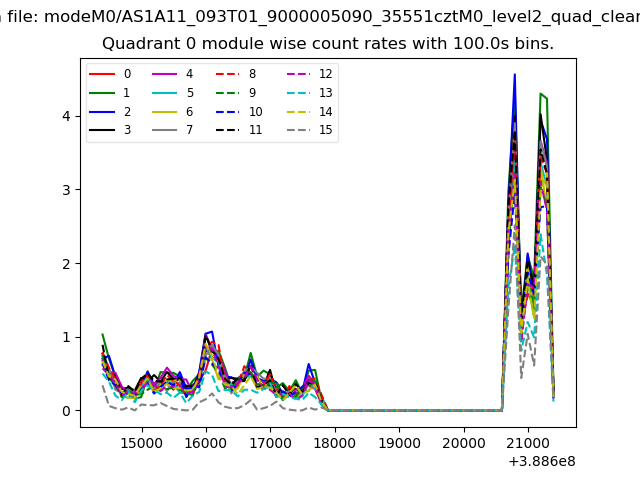

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

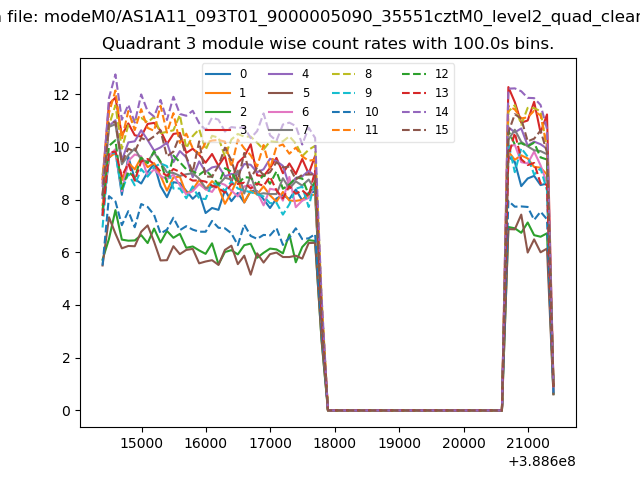

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

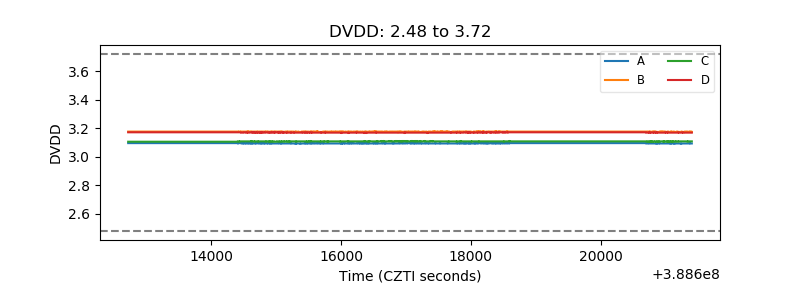

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

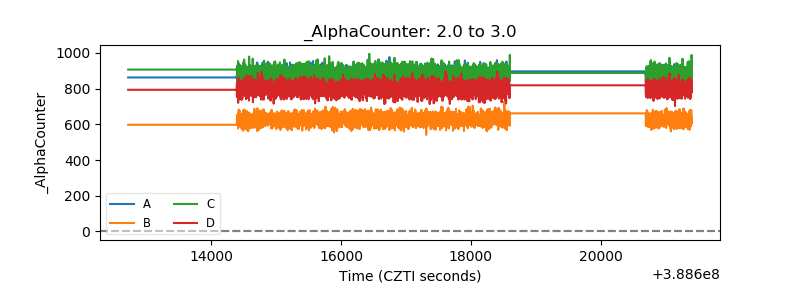

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

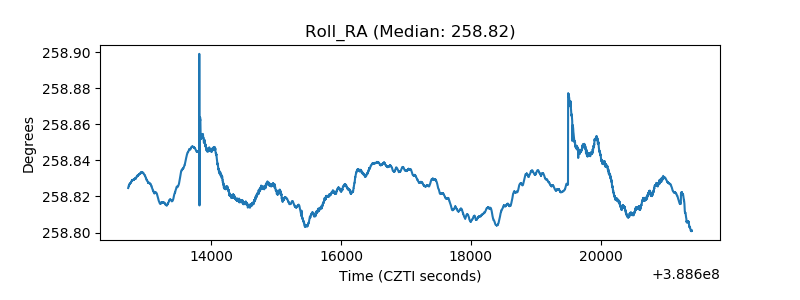

| _Roll_RA |  |

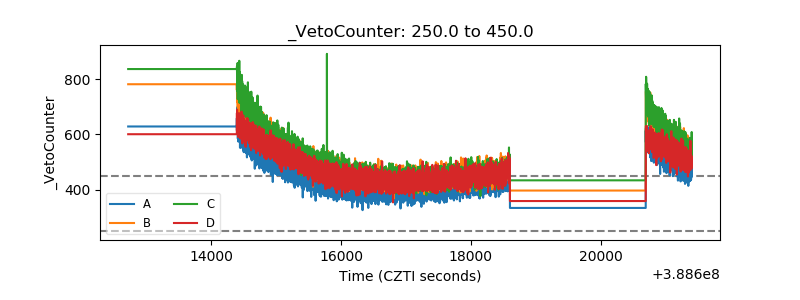

| Veto Counter |  |
