| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_093T01_9000005090_35555cztM0_level2.evt | modeM0/AS1A11_093T01_9000005090_35555cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,133,760 | 69,868,800 |
| Size | 470.3 MB | 66.6 MB |
| Events in quadrant A | 6,054,107 | 374,418 |
| Events in quadrant B | 2,950,443 | 453,887 |
| Events in quadrant C | 2,774,158 | 467,442 |
| Events in quadrant D | 2,786,279 | 438,611 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21675 | 2 |
| B | 0 | 12486 | 1 |
| C | 0 | 11480 | 1 |
| D | 0 | 12069 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5434 | 1481 | 27.254325% |
| B | 5434 | 96 | 1.766654% |
| C | 5434 | 27 | 0.496872% |
| D | 5434 | 56 | 1.030548% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

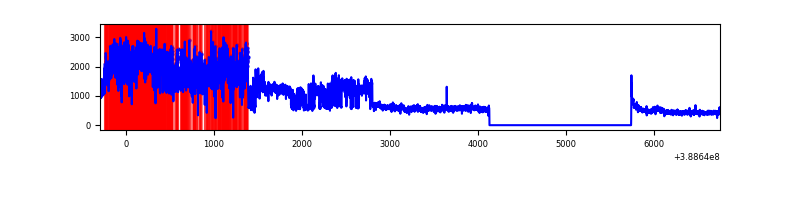

| A | 7046 | 5435 | 720 | 720 | 10.22% | 13.25% |  |
| B | 7046 | 5435 | 57 | 57 | 0.81% | 1.05% |  |

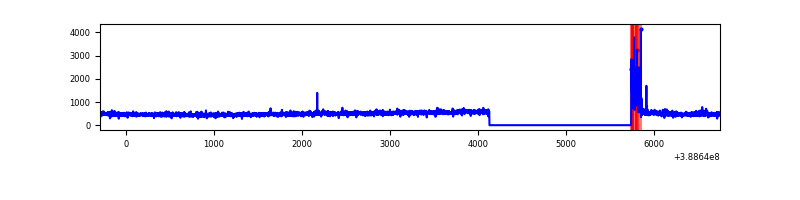

| C | 7046 | 5435 | 23 | 23 | 0.33% | 0.42% |  |

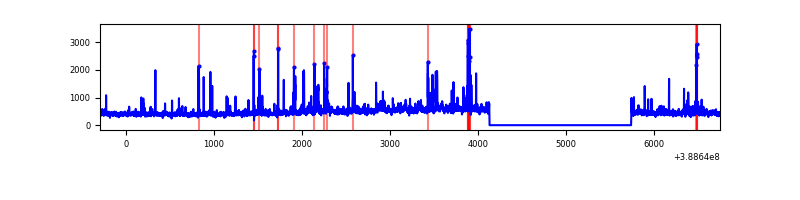

| D | 7046 | 5435 | 23 | 23 | 0.33% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 3803053 | 33895.15 | 552 | 540 | 112.2 |
| A | 10 | 83 | 100477 | 890.83 | 552 | 540 | 112.2 |
| A | 13 | 6 | 11508 | 97.77 | 552 | 540 | 112.2 |
| B | 5 | 172 | 397093 | 3400.2 | 609 | 592 | 116.6 |
| B | 4 | 81 | 71220 | 605.67 | 609 | 592 | 116.6 |
| B | 3 | 112 | 29515 | 248.03 | 609 | 592 | 116.6 |
| C | 15 | 214 | 242716 | 1739.58 | 603 | 607 | 139.2 |
| C | 0 | 10 | 146265 | 1046.57 | 603 | 607 | 139.2 |
| C | 14 | 67 | 24422 | 171.11 | 603 | 607 | 139.2 |
| D | 8 | 195 | 154819 | 1063.98 | 597 | 581 | 145.0 |
| D | 2 | 250 | 100056 | 686.21 | 597 | 581 | 145.0 |
| D | 13 | 249 | 44663 | 304.09 | 597 | 581 | 145.0 |

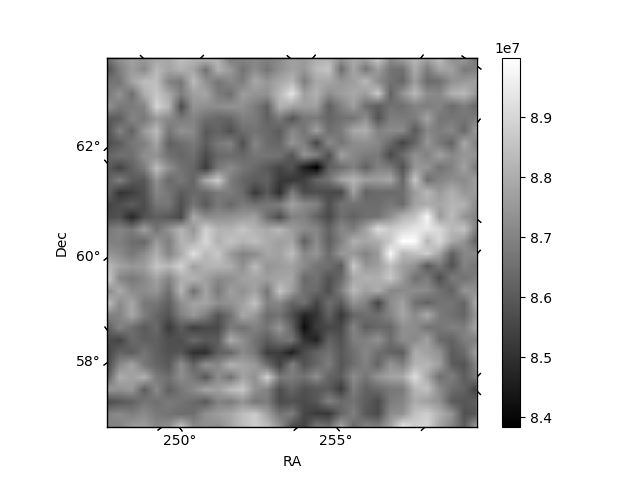

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

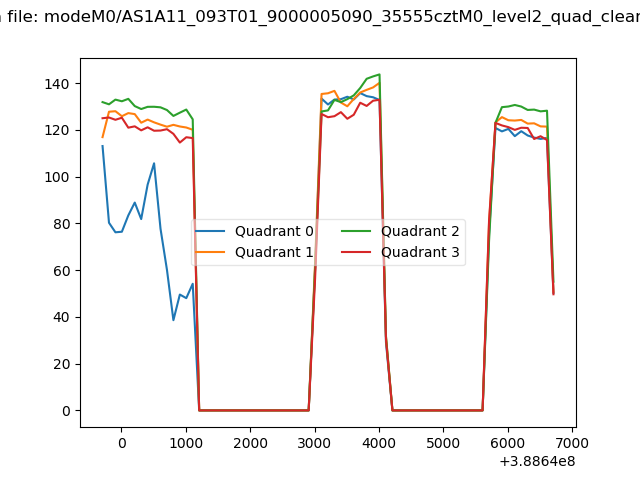

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

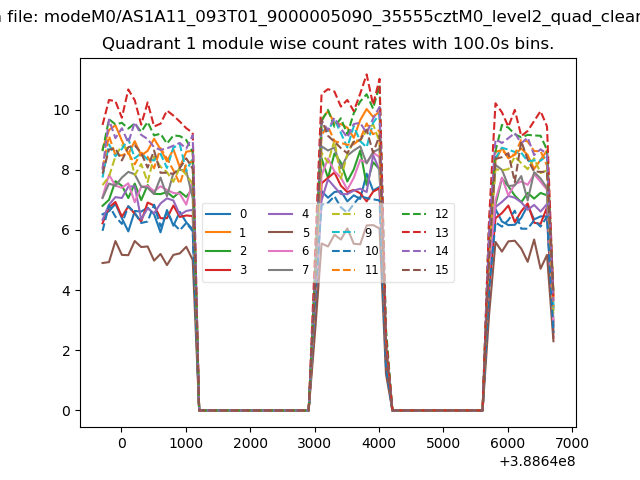

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

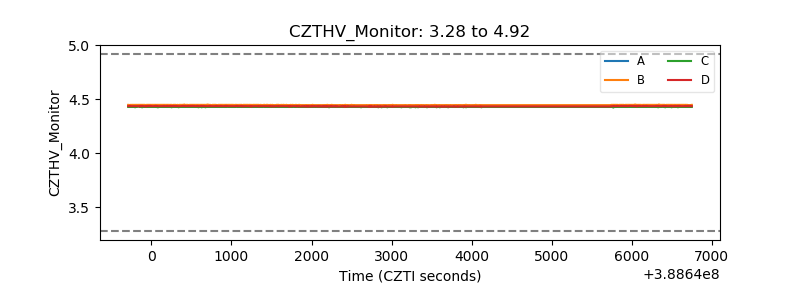

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

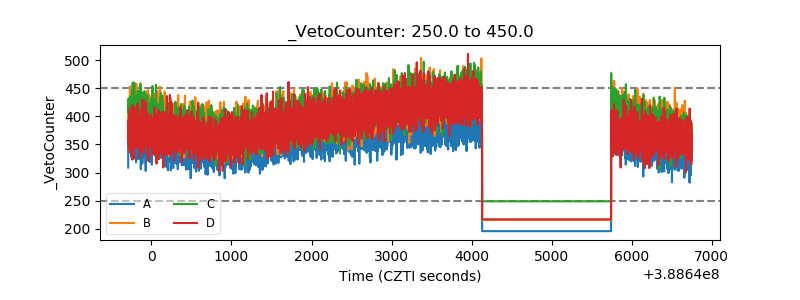

| Veto Counter |  |
