| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_026T01_9000005092_35566cztM0_level2.evt | modeM0/AS1T05_026T01_9000005092_35566cztM0_level2_quad_clean.evt |
| Size (bytes) | 395,547,840 | 78,736,320 |
| Size | 377.2 MB | 75.1 MB |
| Events in quadrant A | 2,918,937 | 497,501 |
| Events in quadrant B | 2,731,534 | 525,231 |
| Events in quadrant C | 3,276,032 | 520,834 |
| Events in quadrant D | 2,723,729 | 501,012 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11898 | 3 |
| B | 0 | 11136 | 2 |
| C | 0 | 12745 | 2 |
| D | 0 | 11111 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4836 | 13 | 0.268817% |
| B | 4836 | 66 | 1.364764% |
| C | 4836 | 209 | 4.321754% |
| D | 4836 | 35 | 0.723739% |

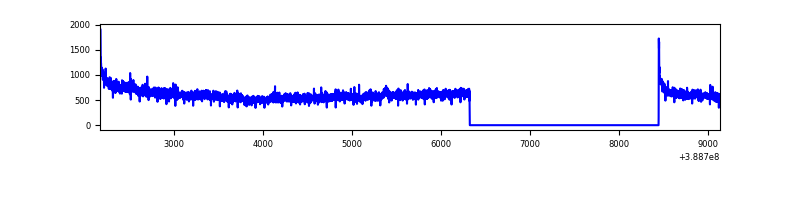

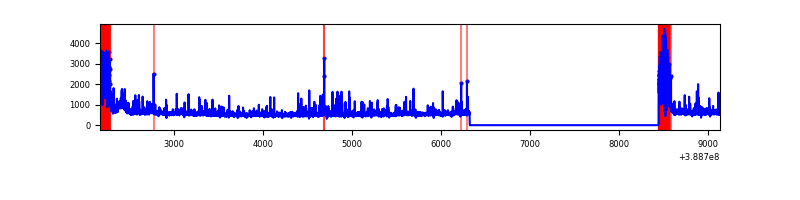

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6958 | 4837 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6958 | 4837 | 39 | 39 | 0.56% | 0.81% |  |
| C | 6958 | 4837 | 141 | 141 | 2.03% | 2.92% |  |
| D | 6958 | 4837 | 31 | 31 | 0.45% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 523024 | 4548.46 | 576 | 565 | 114.9 |
| A | 10 | 83 | 129548 | 1122.91 | 576 | 565 | 114.9 |
| A | 7 | 192 | 28877 | 246.48 | 576 | 565 | 114.9 |
| B | 5 | 172 | 304304 | 2802.49 | 586 | 571 | 108.4 |
| B | 4 | 81 | 41039 | 373.39 | 586 | 571 | 108.4 |
| B | 5 | 200 | 34858 | 316.36 | 586 | 571 | 108.4 |
| C | 0 | 10 | 736762 | 5637.1 | 574 | 582 | 130.6 |
| C | 15 | 214 | 212701 | 1624.24 | 574 | 582 | 130.6 |
| C | 9 | 187 | 33201 | 249.77 | 574 | 582 | 130.6 |
| D | 8 | 195 | 163271 | 1185.09 | 573 | 560 | 137.3 |
| D | 13 | 249 | 135193 | 980.59 | 573 | 560 | 137.3 |
| D | 2 | 250 | 51149 | 368.46 | 573 | 560 | 137.3 |

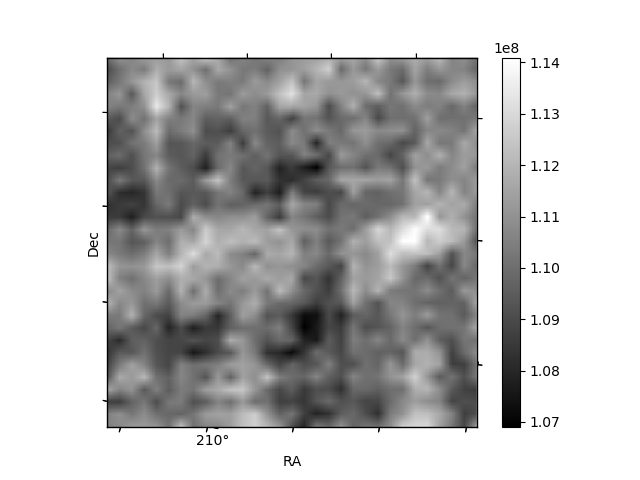

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

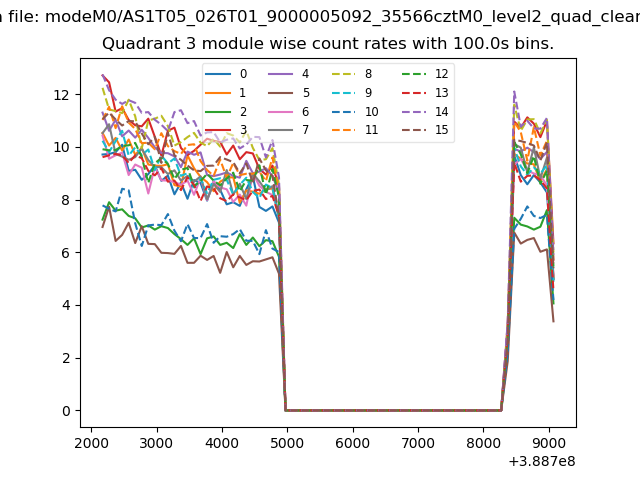

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

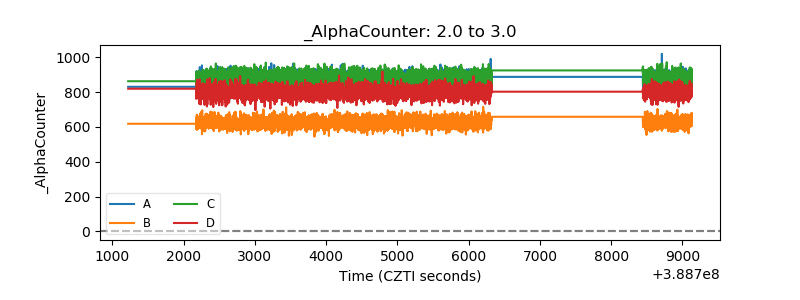

| Alpha Counter |  |
| _CPM_Rate |  |

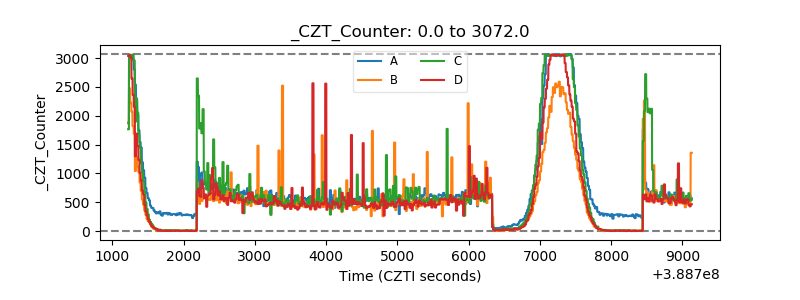

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

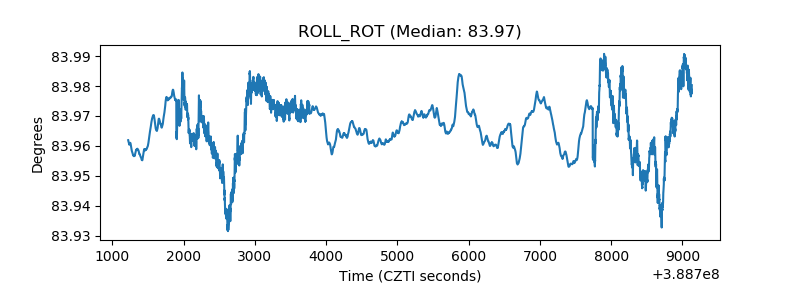

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

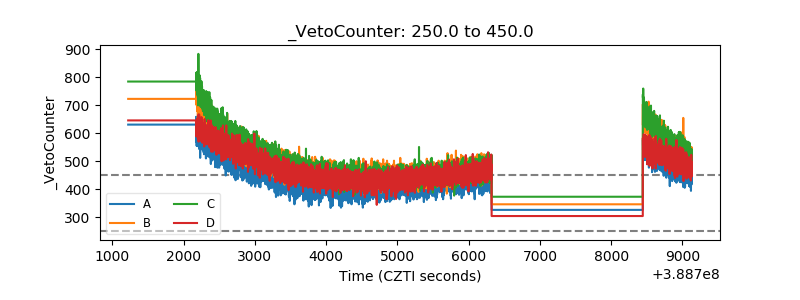

| Veto Counter |  |
