| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_026T01_9000005092_35570cztM0_level2.evt | modeM0/AS1T05_026T01_9000005092_35570cztM0_level2_quad_clean.evt |
| Size (bytes) | 898,367,040 | 115,822,080 |
| Size | 856.7 MB | 110.5 MB |
| Events in quadrant A | 8,408,608 | 668,305 |
| Events in quadrant B | 6,351,991 | 728,473 |
| Events in quadrant C | 5,766,395 | 743,243 |
| Events in quadrant D | 6,031,980 | 701,553 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 196 | 0 |
| B | 0 | 196 | 0 |
| C | 0 | 196 | 0 |
| D | 0 | 196 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 33 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31523 | 3 |
| B | 0 | 25398 | 2 |
| C | 0 | 23017 | 2 |
| D | 0 | 24543 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9593 | 1269 | 13.228396% |
| B | 9593 | 679 | 7.078078% |
| C | 9593 | 136 | 1.417700% |
| D | 9593 | 312 | 3.252372% |

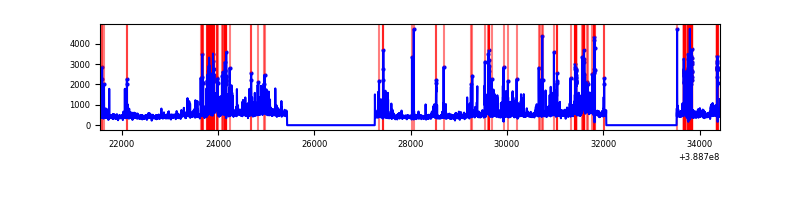

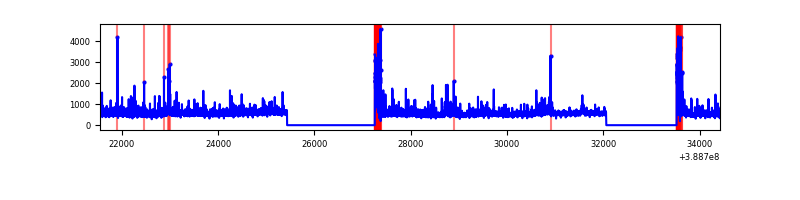

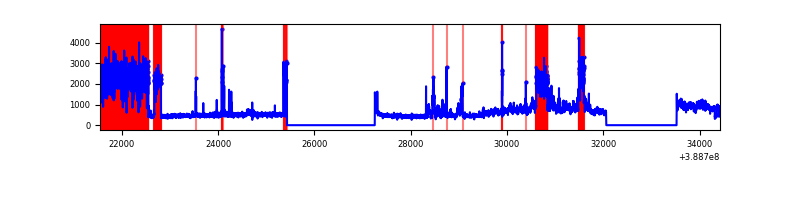

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12880 | 9595 | 1106 | 1106 | 8.59% | 11.53% |  |
| B | 12880 | 9595 | 435 | 435 | 3.38% | 4.53% |  |
| C | 12880 | 9595 | 100 | 100 | 0.78% | 1.04% |  |
| D | 12880 | 9595 | 243 | 243 | 1.89% | 2.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 4132887 | 19799.52 | 1044 | 1025 | 208.7 |
| A | 10 | 83 | 182609 | 870.13 | 1044 | 1025 | 208.7 |
| A | 7 | 16 | 27896 | 128.76 | 1044 | 1025 | 208.7 |
| B | 5 | 172 | 2063970 | 10247.7 | 1061 | 1033 | 201.3 |
| B | 4 | 81 | 39889 | 193.02 | 1061 | 1033 | 201.3 |
| B | 0 | 189 | 30059 | 144.18 | 1061 | 1033 | 201.3 |
| C | 0 | 10 | 638589 | 2591.51 | 1063 | 1068 | 246.0 |
| C | 9 | 187 | 473722 | 1921.33 | 1063 | 1068 | 246.0 |
| C | 15 | 214 | 421089 | 1707.37 | 1063 | 1068 | 246.0 |
| D | 1 | 52 | 586678 | 2316.13 | 1050 | 1023 | 252.9 |
| D | 7 | 80 | 424032 | 1672.9 | 1050 | 1023 | 252.9 |
| D | 8 | 195 | 262529 | 1034.19 | 1050 | 1023 | 252.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

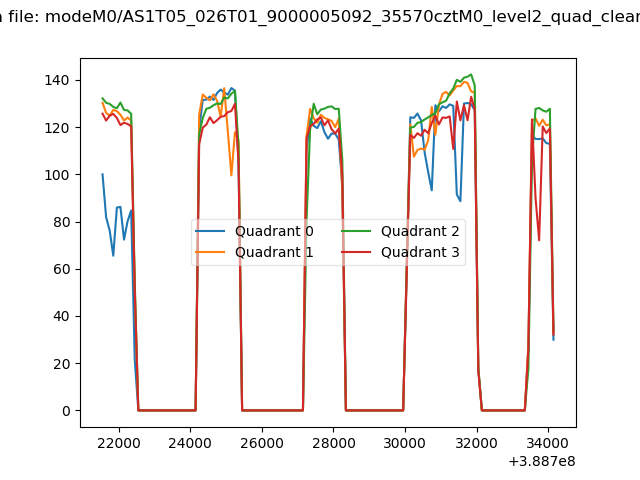

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

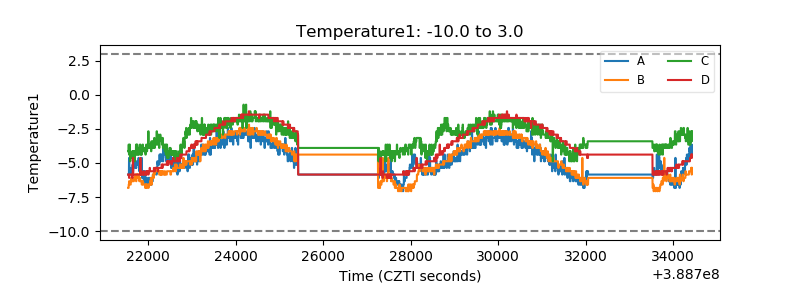

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

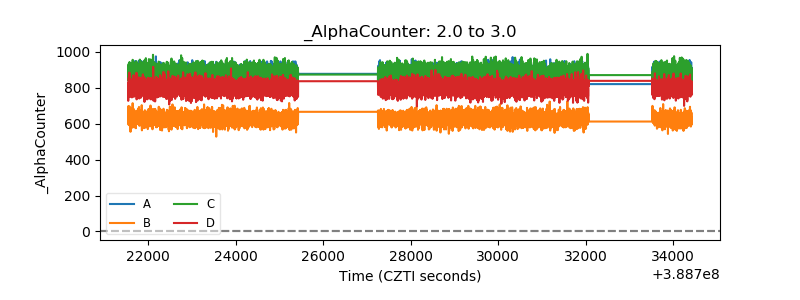

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

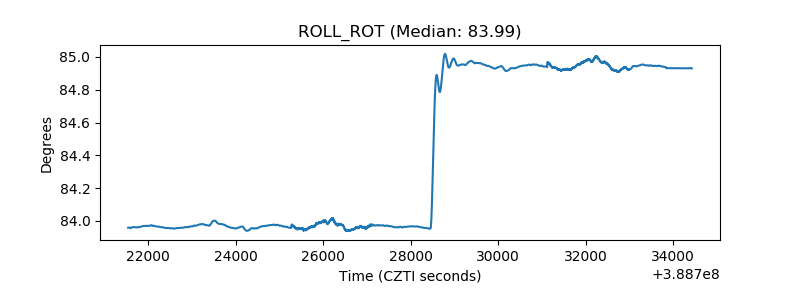

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

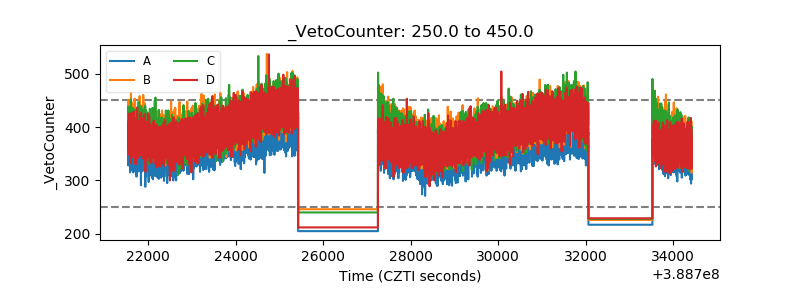

| Veto Counter |  |
