| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_026T01_9000005092_35574cztM0_level2.evt | modeM0/AS1T05_026T01_9000005092_35574cztM0_level2_quad_clean.evt |
| Size (bytes) | 735,517,440 | 115,084,800 |
| Size | 701.4 MB | 109.8 MB |
| Events in quadrant A | 4,515,156 | 720,302 |
| Events in quadrant B | 6,390,564 | 700,809 |
| Events in quadrant C | 5,335,776 | 729,705 |
| Events in quadrant D | 5,411,264 | 696,498 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 188 | 0 |
| B | 0 | 188 | 0 |
| C | 0 | 188 | 0 |
| D | 0 | 188 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19452 | 2 |
| B | 0 | 25059 | 2 |
| C | 0 | 21362 | 2 |
| D | 0 | 21884 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9192 | 84 | 0.913838% |
| B | 9192 | 819 | 8.909922% |
| C | 9192 | 91 | 0.989991% |
| D | 9192 | 134 | 1.457789% |

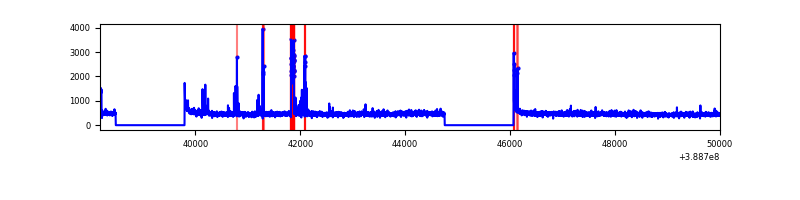

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

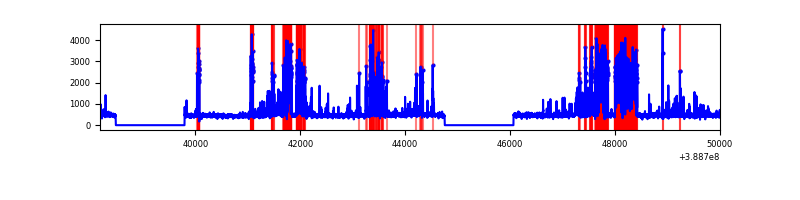

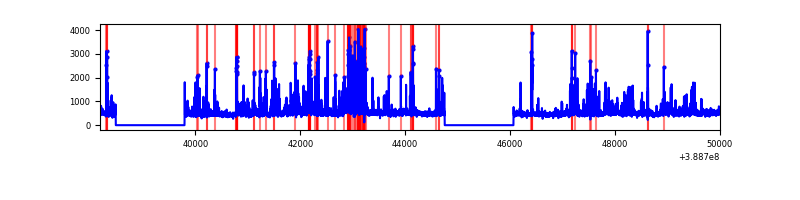

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11818 | 9194 | 68 | 68 | 0.58% | 0.74% |  |
| B | 11818 | 9194 | 577 | 577 | 4.88% | 6.28% |  |
| C | 11818 | 9194 | 69 | 69 | 0.58% | 0.75% |  |
| D | 11818 | 9194 | 109 | 109 | 0.92% | 1.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 318016 | 1512.44 | 1037 | 1013 | 209.6 |
| A | 10 | 83 | 175712 | 833.5 | 1037 | 1013 | 209.6 |
| A | 13 | 6 | 18166 | 81.84 | 1037 | 1013 | 209.6 |
| B | 5 | 172 | 2272777 | 11849.59 | 1000 | 970 | 191.7 |
| B | 5 | 200 | 136382 | 706.3 | 1000 | 970 | 191.7 |
| B | 12 | 111 | 24352 | 121.96 | 1000 | 970 | 191.7 |
| C | 0 | 10 | 624615 | 2640.36 | 1023 | 1033 | 236.2 |
| C | 15 | 214 | 386805 | 1633.43 | 1023 | 1033 | 236.2 |
| C | 9 | 187 | 216175 | 910.95 | 1023 | 1033 | 236.2 |
| D | 1 | 52 | 476105 | 1921.34 | 1020 | 990 | 247.3 |
| D | 8 | 195 | 311565 | 1255.95 | 1020 | 990 | 247.3 |
| D | 2 | 250 | 155214 | 623.67 | 1020 | 990 | 247.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

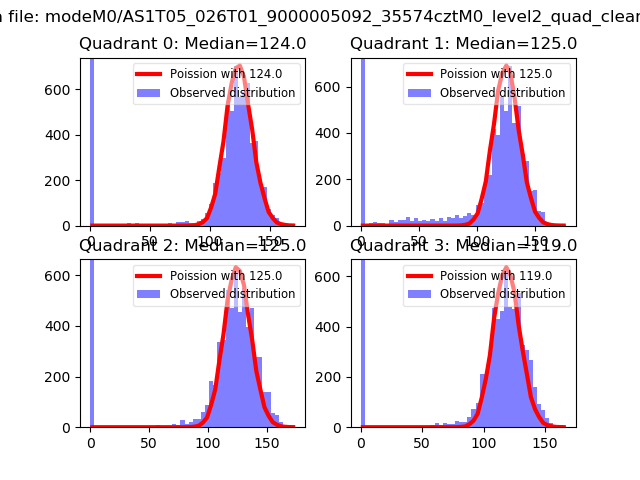

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

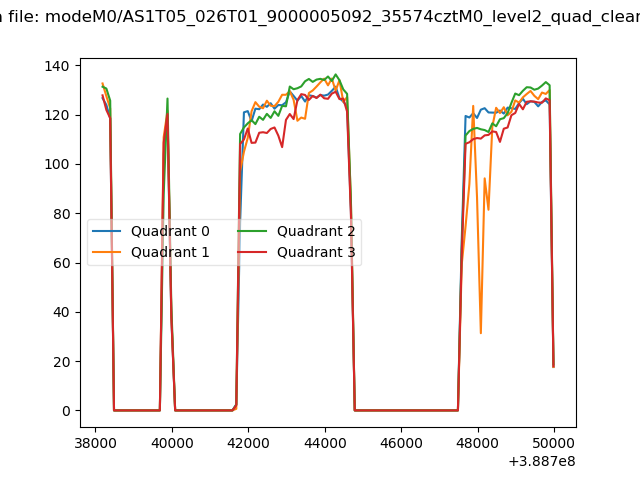

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

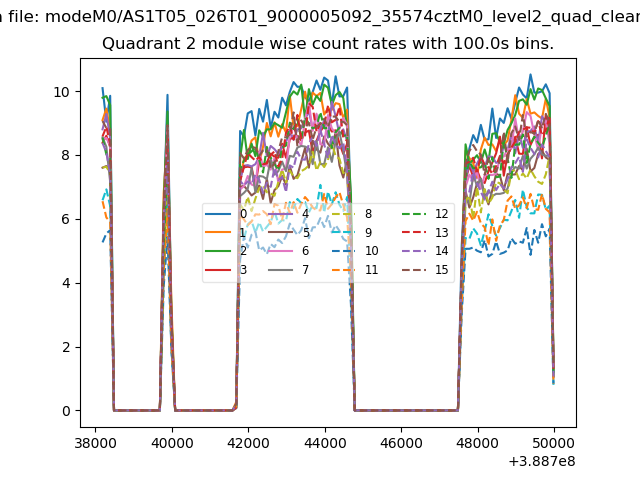

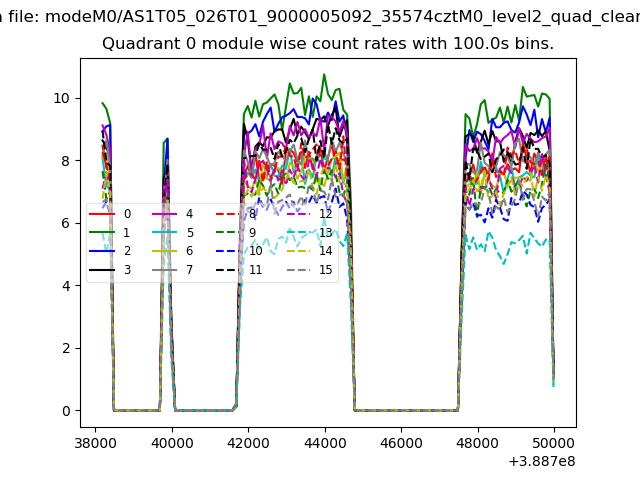

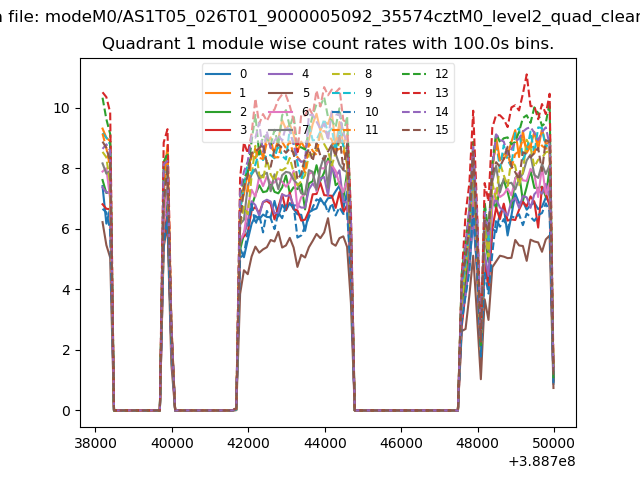

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

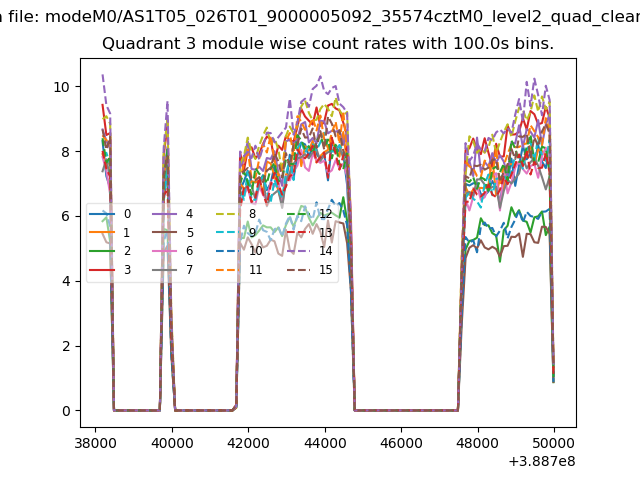

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

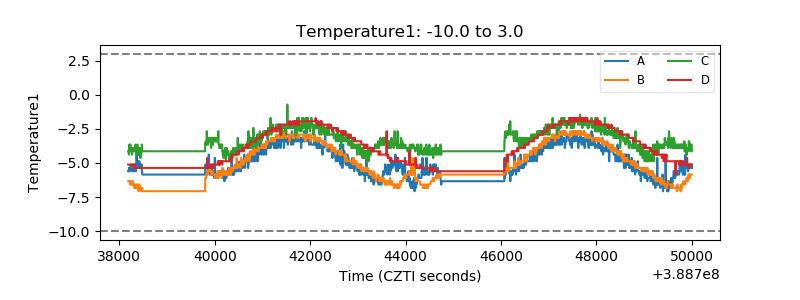

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

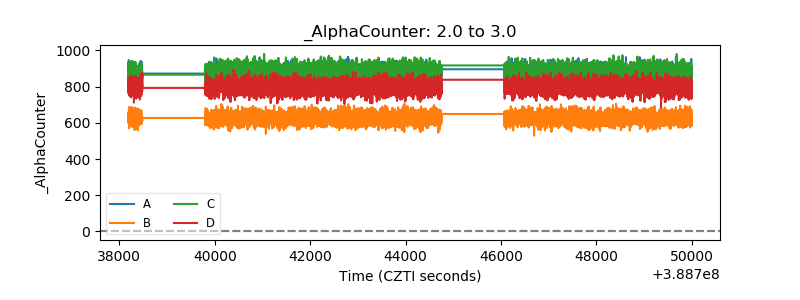

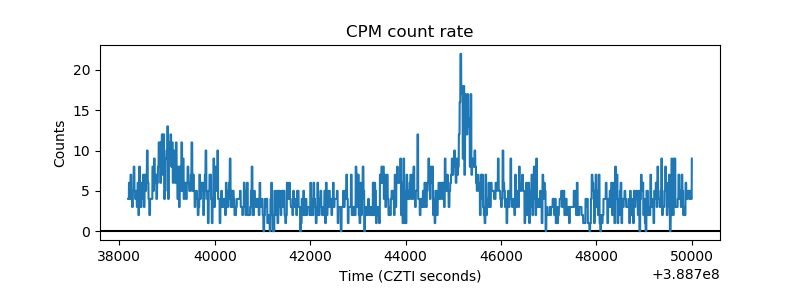

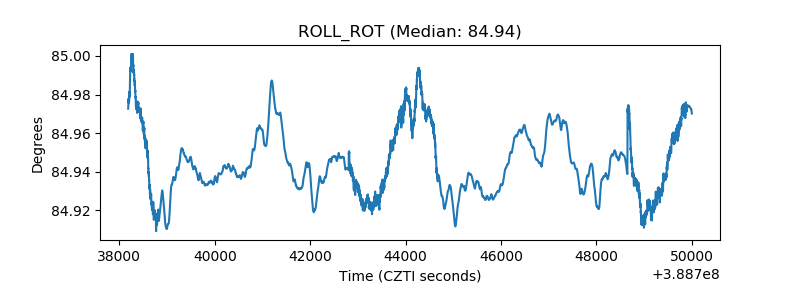

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

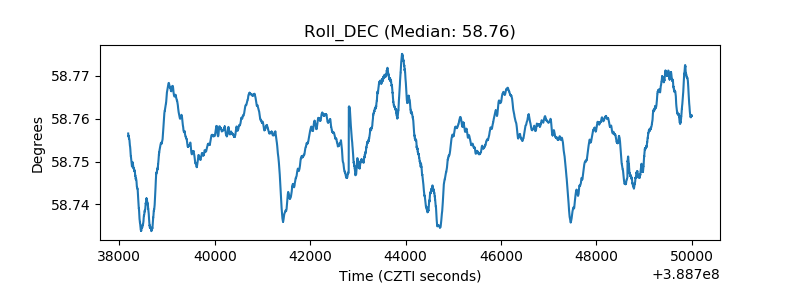

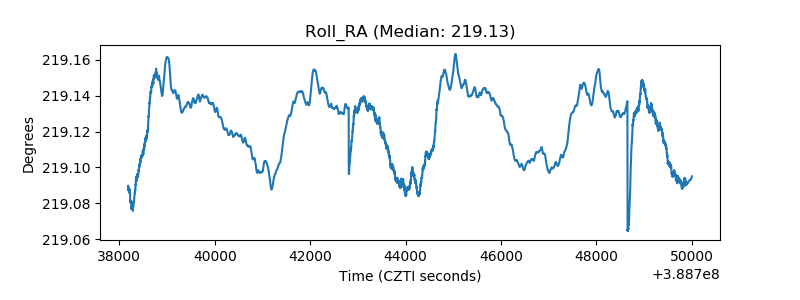

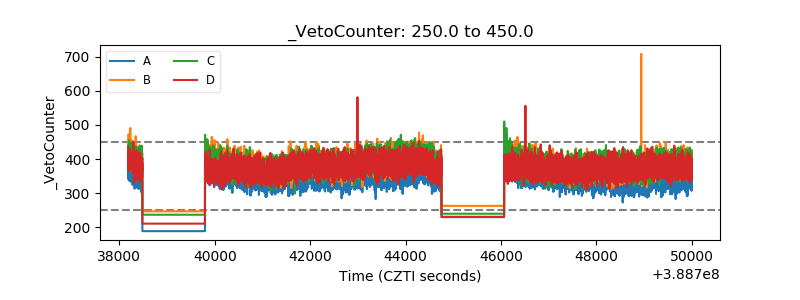

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
