| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_065T04_9000005098_35589cztM0_level2.evt | modeM0/AS1A10_065T04_9000005098_35589cztM0_level2_quad_clean.evt |
| Size (bytes) | 581,281,920 | 93,611,520 |
| Size | 554.4 MB | 89.3 MB |
| Events in quadrant A | 3,605,341 | 603,467 |
| Events in quadrant B | 4,712,275 | 600,245 |
| Events in quadrant C | 4,030,521 | 594,870 |
| Events in quadrant D | 4,796,533 | 563,936 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14857 | 3 |
| B | 0 | 18340 | 2 |
| C | 0 | 15959 | 2 |
| D | 0 | 18674 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6775 | 16 | 0.236162% |
| B | 6775 | 499 | 7.365314% |
| C | 6775 | 224 | 3.306273% |
| D | 6775 | 632 | 9.328413% |

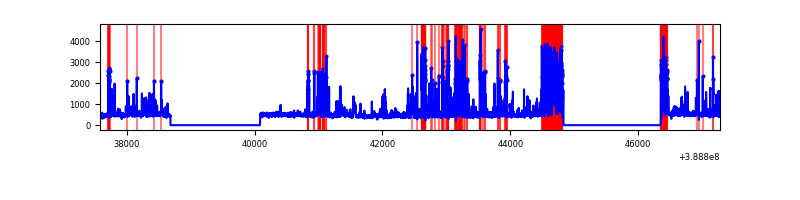

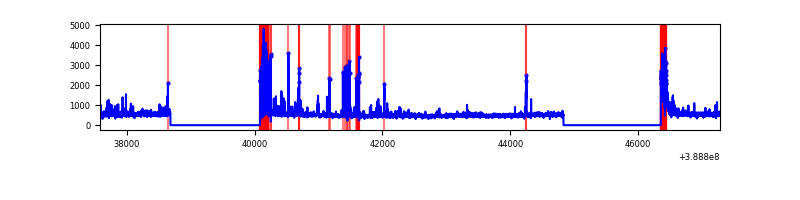

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9701 | 6777 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9701 | 6777 | 297 | 297 | 3.06% | 4.38% |  |
| C | 9701 | 6777 | 152 | 152 | 1.57% | 2.24% |  |
| D | 9701 | 6777 | 187 | 187 | 1.93% | 2.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 354355 | 2204.53 | 792 | 776 | 160.4 |
| A | 10 | 83 | 160633 | 996.69 | 792 | 776 | 160.4 |
| A | 13 | 6 | 22455 | 135.17 | 792 | 776 | 160.4 |
| B | 5 | 172 | 1517121 | 10200.62 | 763 | 744 | 148.7 |
| B | 4 | 81 | 88088 | 587.56 | 763 | 744 | 148.7 |
| B | 4 | 232 | 61108 | 406.07 | 763 | 744 | 148.7 |
| C | 0 | 10 | 575856 | 3240.59 | 758 | 764 | 177.5 |
| C | 15 | 214 | 275410 | 1547.61 | 758 | 764 | 177.5 |
| C | 10 | 49 | 187336 | 1051.32 | 758 | 764 | 177.5 |
| D | 7 | 80 | 539405 | 2978.27 | 733 | 713 | 180.9 |
| D | 10 | 203 | 525273 | 2900.14 | 733 | 713 | 180.9 |
| D | 10 | 118 | 237615 | 1309.76 | 733 | 713 | 180.9 |

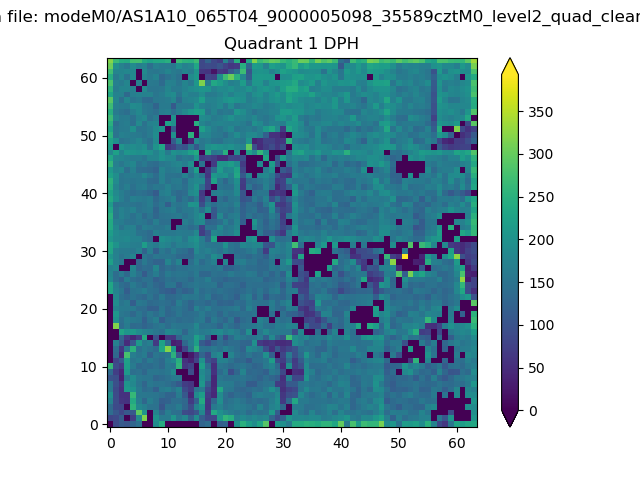

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

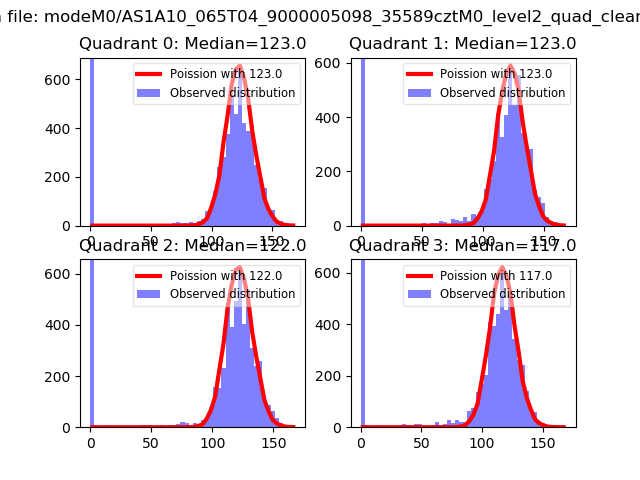

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

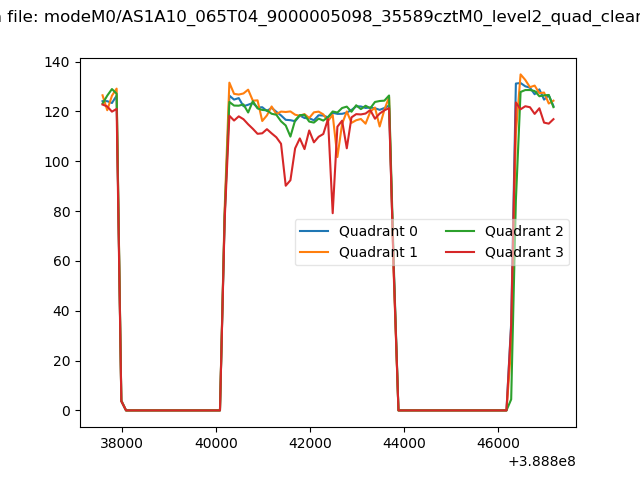

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

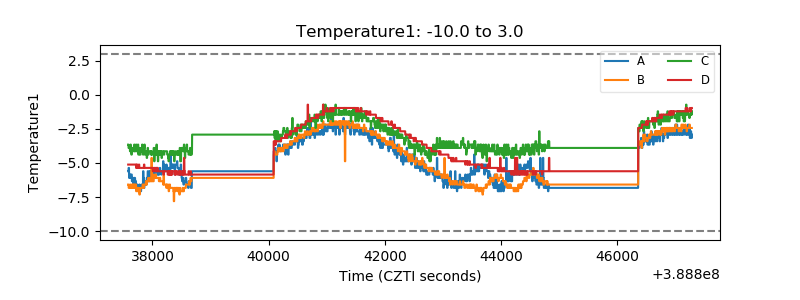

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

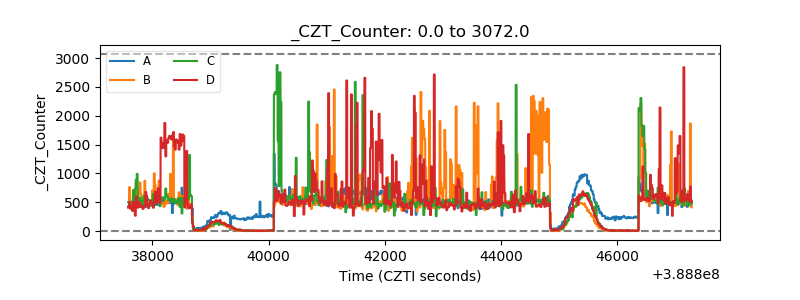

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
