| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_065T04_9000005098_35595cztM0_level2.evt | modeM0/AS1A10_065T04_9000005098_35595cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,600,000 | 62,006,400 |
| Size | 398.3 MB | 59.1 MB |
| Events in quadrant A | 2,551,242 | 393,625 |
| Events in quadrant B | 2,678,825 | 401,710 |
| Events in quadrant C | 3,265,745 | 369,924 |
| Events in quadrant D | 3,817,807 | 367,699 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10549 | 3 |
| B | 0 | 10876 | 2 |
| C | 0 | 12752 | 2 |
| D | 0 | 14558 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4908 | 9 | 0.183374% |
| B | 4908 | 69 | 1.405868% |
| C | 4908 | 193 | 3.932355% |
| D | 4908 | 384 | 7.823961% |

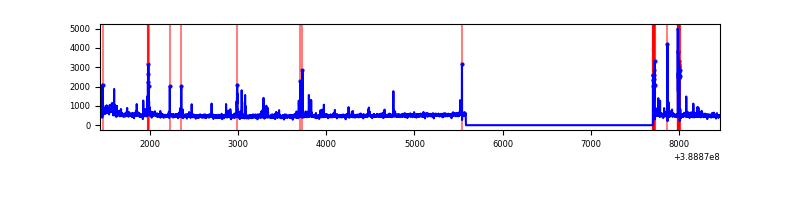

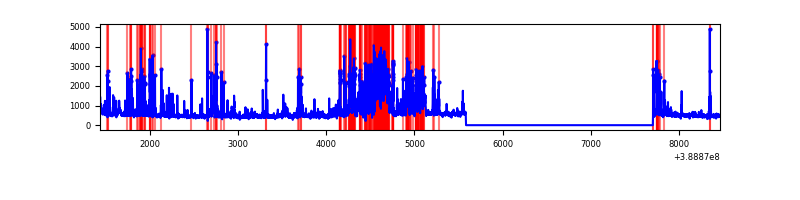

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7030 | 4909 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7030 | 4909 | 42 | 42 | 0.60% | 0.86% |  |
| C | 7030 | 4909 | 148 | 148 | 2.11% | 3.01% |  |
| D | 7030 | 4909 | 331 | 331 | 4.71% | 6.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 132043 | 1090.83 | 601 | 591 | 120.5 |
| A | 15 | 169 | 83920 | 691.49 | 601 | 591 | 120.5 |
| A | 7 | 3 | 8838 | 68.44 | 601 | 591 | 120.5 |
| B | 5 | 172 | 157938 | 1386.26 | 600 | 586 | 113.5 |
| B | 5 | 200 | 79383 | 694.19 | 600 | 586 | 113.5 |
| B | 4 | 81 | 33083 | 286.3 | 600 | 586 | 113.5 |
| C | 0 | 10 | 799303 | 6017.41 | 572 | 576 | 132.7 |
| C | 15 | 214 | 200258 | 1504.36 | 572 | 576 | 132.7 |
| C | 9 | 187 | 11206 | 80.08 | 572 | 576 | 132.7 |
| D | 13 | 249 | 1044682 | 7440.55 | 567 | 550 | 140.3 |
| D | 7 | 80 | 235789 | 1676.32 | 567 | 550 | 140.3 |
| D | 10 | 118 | 82568 | 584.46 | 567 | 550 | 140.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

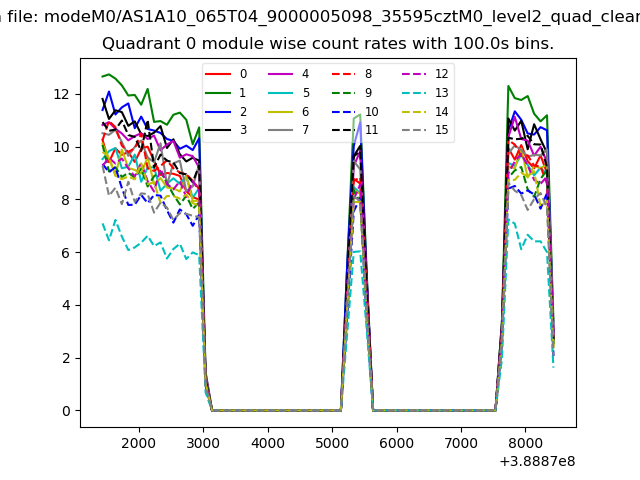

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

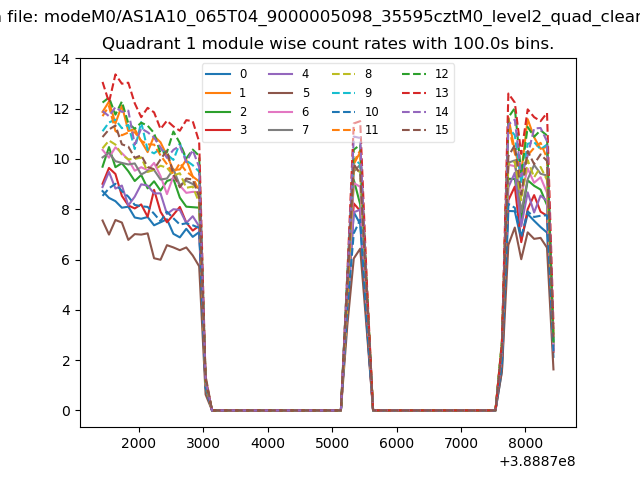

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

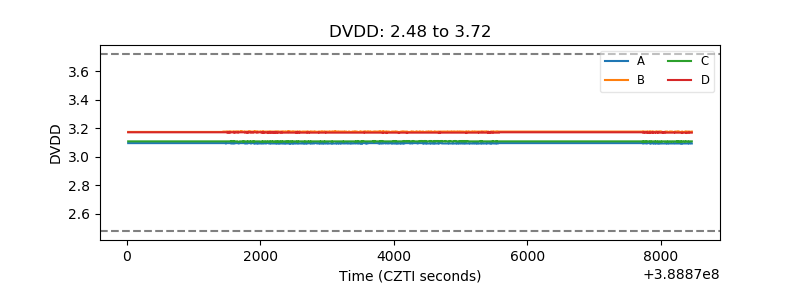

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

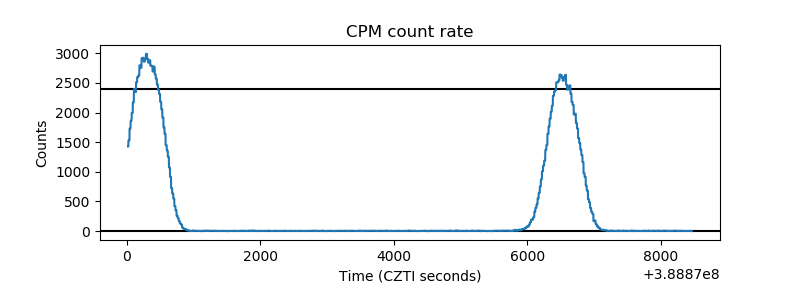

| _CPM_Rate |  |

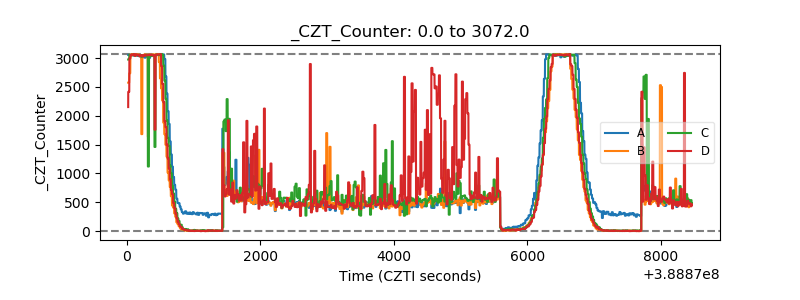

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

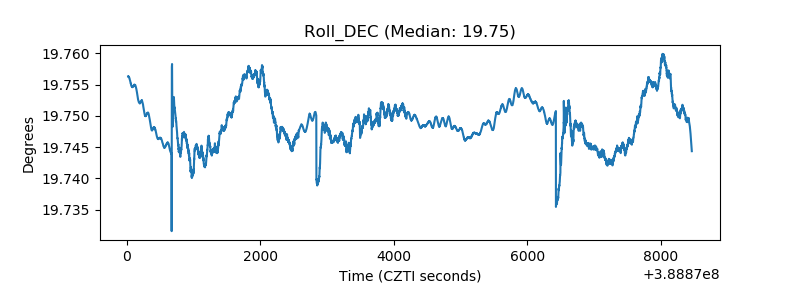

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
