| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_065T04_9000005098_35597cztM0_level2.evt | modeM0/AS1A10_065T04_9000005098_35597cztM0_level2_quad_clean.evt |
| Size (bytes) | 372,827,520 | 51,177,600 |
| Size | 355.6 MB | 48.8 MB |
| Events in quadrant A | 2,755,251 | 307,798 |
| Events in quadrant B | 2,493,389 | 317,020 |
| Events in quadrant C | 3,008,646 | 287,293 |
| Events in quadrant D | 2,696,837 | 289,924 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11309 | 3 |
| B | 0 | 10532 | 2 |
| C | 0 | 11767 | 2 |
| D | 0 | 11327 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4952 | 41 | 0.827948% |
| B | 4952 | 43 | 0.868336% |
| C | 4952 | 240 | 4.846527% |
| D | 4952 | 70 | 1.413570% |

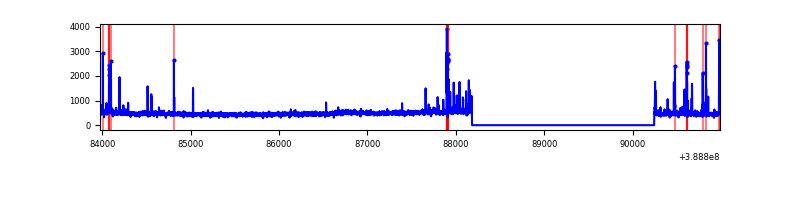

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7014 | 4953 | 36 | 36 | 0.51% | 0.73% |  |
| B | 7014 | 4953 | 26 | 26 | 0.37% | 0.52% |  |
| C | 7014 | 4953 | 163 | 163 | 2.32% | 3.29% |  |
| D | 7014 | 4953 | 59 | 59 | 0.84% | 1.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 318373 | 2687.65 | 581 | 568 | 118.2 |
| A | 10 | 83 | 129383 | 1089.38 | 581 | 568 | 118.2 |
| A | 7 | 3 | 48543 | 405.72 | 581 | 568 | 118.2 |
| B | 5 | 172 | 183123 | 1631.6 | 580 | 566 | 111.9 |
| B | 0 | 189 | 16201 | 139.74 | 580 | 566 | 111.9 |
| B | 12 | 111 | 13789 | 118.18 | 580 | 566 | 111.9 |
| C | 0 | 10 | 598958 | 4663.09 | 552 | 556 | 128.3 |
| C | 15 | 214 | 201097 | 1562.73 | 552 | 556 | 128.3 |
| C | 9 | 187 | 48873 | 376.51 | 552 | 556 | 128.3 |
| D | 7 | 80 | 254282 | 1856.87 | 559 | 544 | 136.6 |
| D | 13 | 249 | 104302 | 759.31 | 559 | 544 | 136.6 |
| D | 8 | 230 | 83418 | 606.48 | 559 | 544 | 136.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

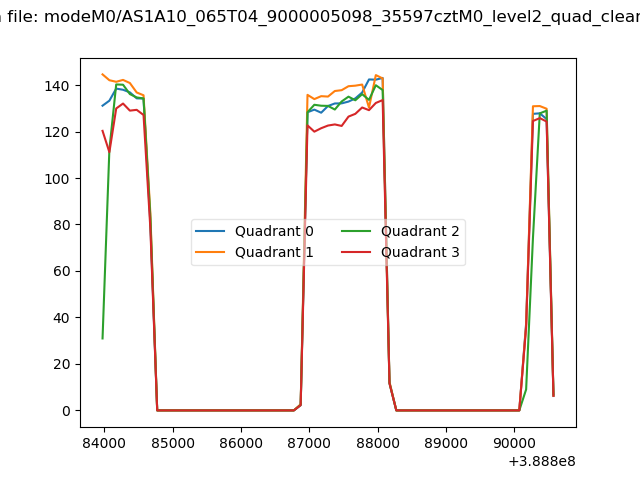

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

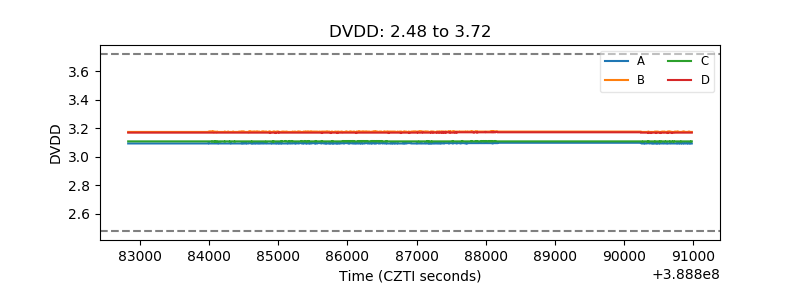

| D_VDD |  |

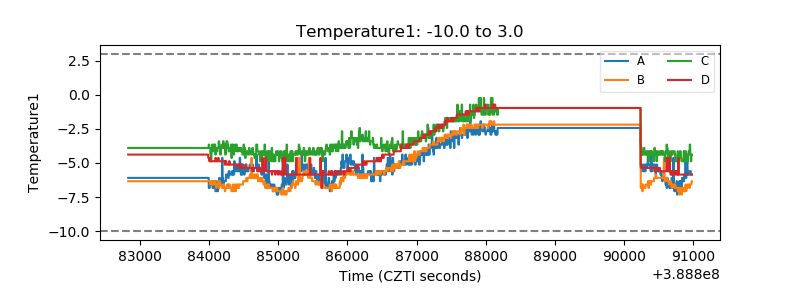

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

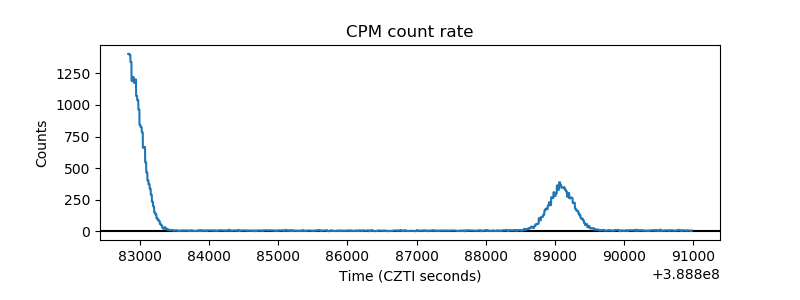

| _CPM_Rate |  |

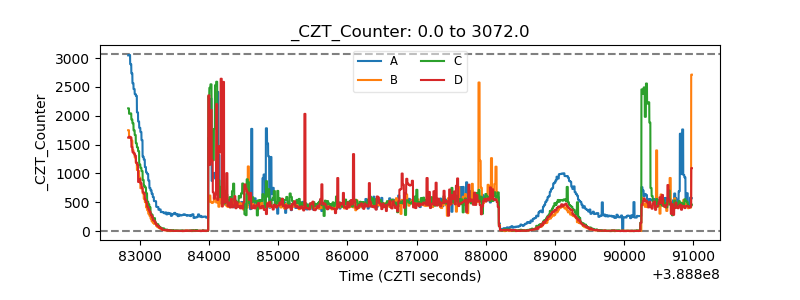

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

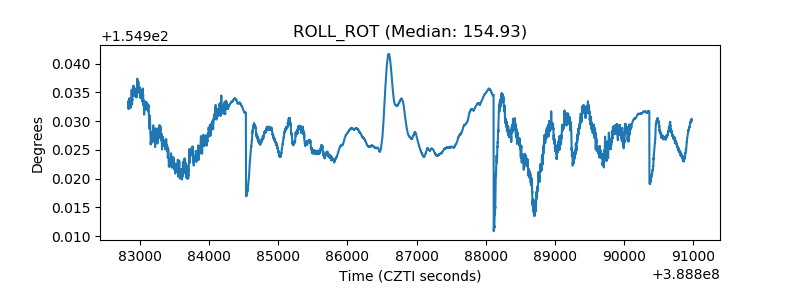

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

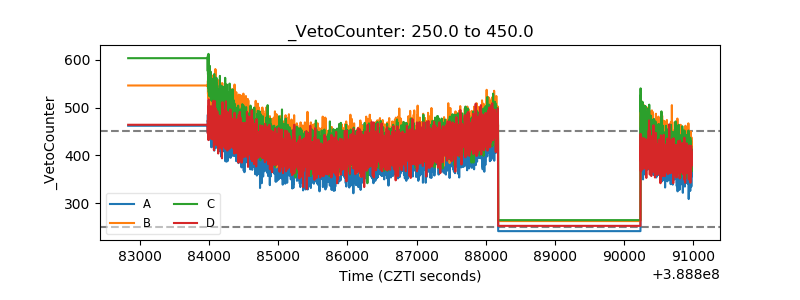

| Veto Counter |  |
