| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_065T04_9000005098_35612cztM0_level2.evt | modeM0/AS1A10_065T04_9000005098_35612cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,792,640 | 47,917,440 |
| Size | 523.4 MB | 45.7 MB |
| Events in quadrant A | 2,467,689 | 304,667 |
| Events in quadrant B | 2,757,880 | 305,449 |
| Events in quadrant C | 3,110,253 | 291,362 |
| Events in quadrant D | 7,936,980 | 189,478 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10533 | 3 |
| B | 0 | 11524 | 2 |
| C | 0 | 12239 | 2 |
| D | 0 | 27050 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5122 | 5 | 0.097618% |
| B | 5122 | 104 | 2.030457% |
| C | 5122 | 161 | 3.143303% |
| D | 5122 | 2171 | 42.385787% |

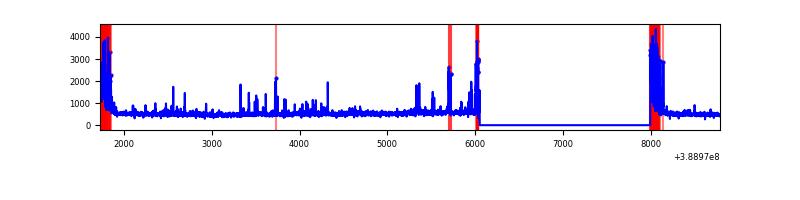

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7065 | 5123 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7065 | 5123 | 68 | 68 | 0.96% | 1.33% |  |
| C | 7065 | 5123 | 135 | 135 | 1.91% | 2.64% |  |
| D | 7065 | 5123 | 1860 | 1860 | 26.33% | 36.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 137283 | 1139.21 | 594 | 583 | 120.0 |
| A | 7 | 3 | 14252 | 113.91 | 594 | 583 | 120.0 |
| A | 13 | 6 | 9041 | 70.49 | 594 | 583 | 120.0 |
| B | 5 | 172 | 372452 | 3228.25 | 588 | 572 | 115.2 |
| B | 4 | 81 | 22337 | 188.94 | 588 | 572 | 115.2 |
| B | 10 | 245 | 16578 | 138.95 | 588 | 572 | 115.2 |
| C | 0 | 10 | 539050 | 4031.39 | 569 | 572 | 133.6 |
| C | 15 | 214 | 210929 | 1574.86 | 569 | 572 | 133.6 |
| C | 1 | 23 | 81012 | 602.22 | 569 | 572 | 133.6 |
| D | 7 | 80 | 4647526 | 43365.18 | 436 | 425 | 107.2 |
| D | 12 | 233 | 1426969 | 13312.03 | 436 | 425 | 107.2 |
| D | 13 | 249 | 65468 | 606.96 | 436 | 425 | 107.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

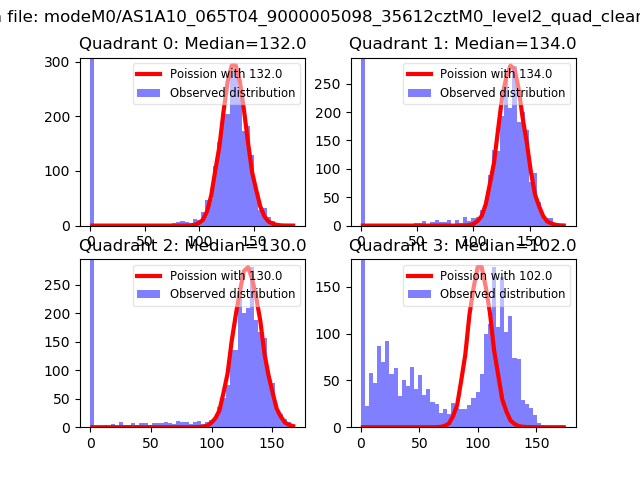

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

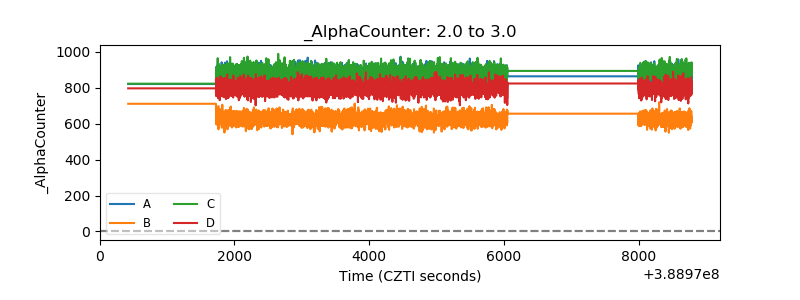

| Alpha Counter |  |

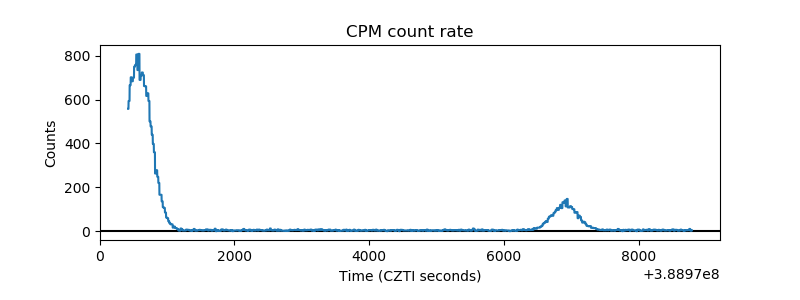

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

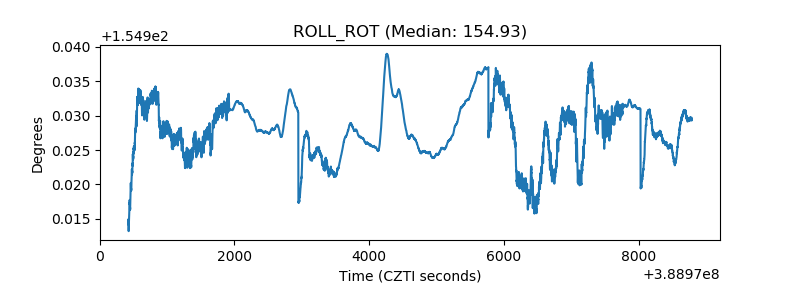

| _ROLL_ROT |  |
| _Roll_DEC |  |

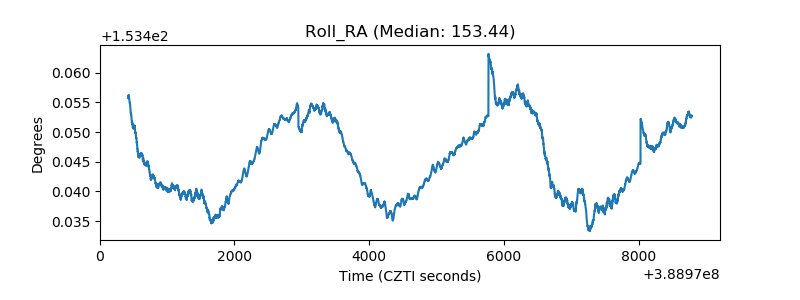

| _Roll_RA |  |

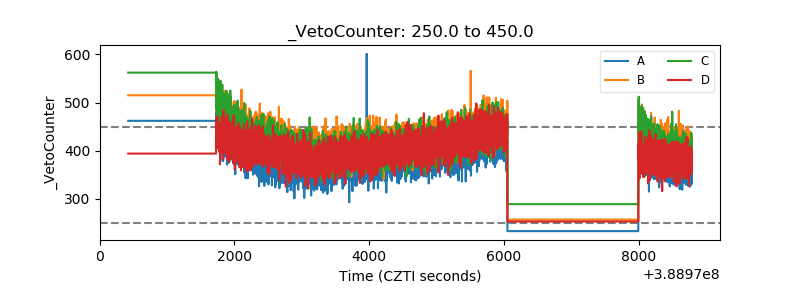

| Veto Counter |  |
