| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_028T01_9000005100_35621cztM0_level2.evt | modeM0/AS1T05_028T01_9000005100_35621cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,696,032,000 | 234,360,000 |
| Size | 1.6 GB | 223.5 MB |
| Events in quadrant A | 10,199,426 | 1,465,104 |
| Events in quadrant B | 13,628,197 | 1,458,684 |
| Events in quadrant C | 13,523,282 | 1,439,036 |
| Events in quadrant D | 12,693,589 | 1,385,544 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 66 | 0 |
| B | 0 | 66 | 0 |
| C | 0 | 66 | 0 |
| D | 0 | 66 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43081 | 8 |
| B | 0 | 53309 | 12 |
| C | 0 | 52358 | 8 |
| D | 0 | 50587 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 400 | 0 |
| B | 0 | 400 | 0 |
| C | 0 | 400 | 0 |
| D | 0 | 400 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19589 | 112 | 0.571749% |
| B | 19589 | 1226 | 6.258615% |
| C | 19588 | 729 | 3.721666% |
| D | 19590 | 751 | 3.833589% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25975 | 19594 | 72 | 72 | 0.28% | 0.37% |  |
| B | 25975 | 19594 | 814 | 814 | 3.13% | 4.15% |  |
| C | 25975 | 19594 | 565 | 565 | 2.18% | 2.88% |  |
| D | 25975 | 19594 | 607 | 607 | 2.34% | 3.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 16 | 892448 | 1964.35 | 2260 | 2215 | 453.2 |
| A | 10 | 83 | 443736 | 974.24 | 2260 | 2215 | 453.2 |
| A | 15 | 169 | 84429 | 181.41 | 2260 | 2215 | 453.2 |
| B | 5 | 172 | 4152427 | 9952.58 | 2202 | 2141 | 417.0 |
| B | 0 | 190 | 340205 | 810.69 | 2202 | 2141 | 417.0 |
| B | 0 | 189 | 113627 | 267.35 | 2202 | 2141 | 417.0 |
| C | 0 | 10 | 2408222 | 4767.6 | 2178 | 2190 | 504.7 |
| C | 9 | 187 | 1565648 | 3098.02 | 2178 | 2190 | 504.7 |
| C | 15 | 214 | 791785 | 1564.6 | 2178 | 2190 | 504.7 |
| D | 1 | 52 | 1050275 | 1998.82 | 2172 | 2119 | 524.4 |
| D | 7 | 80 | 1032415 | 1964.76 | 2172 | 2119 | 524.4 |
| D | 10 | 118 | 713565 | 1356.72 | 2172 | 2119 | 524.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

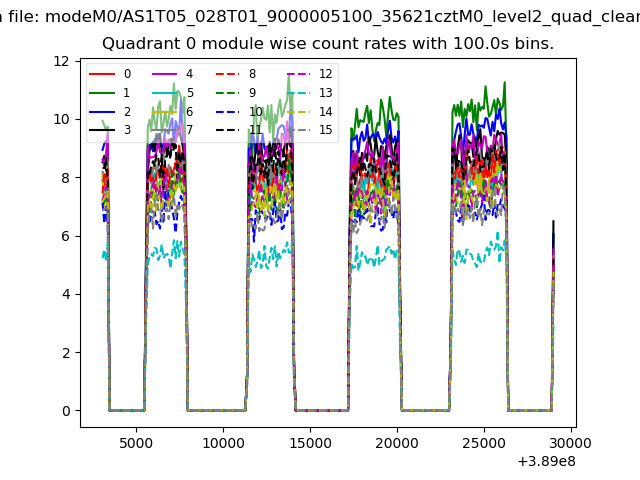

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

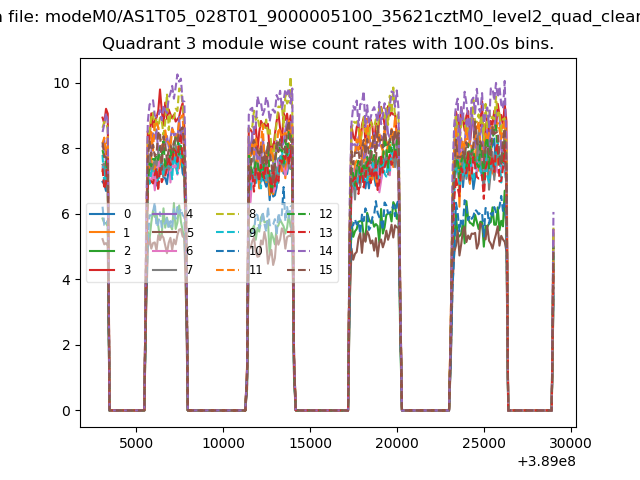

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

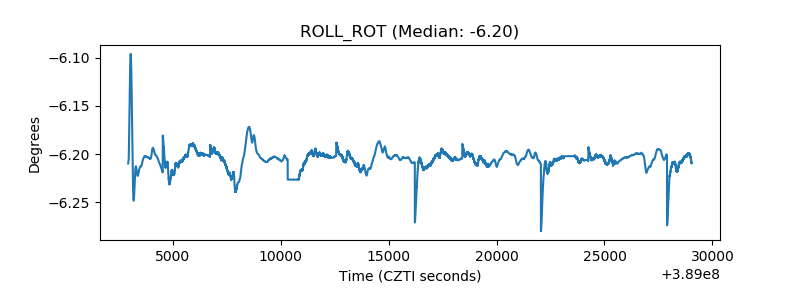

| _ROLL_ROT |  |

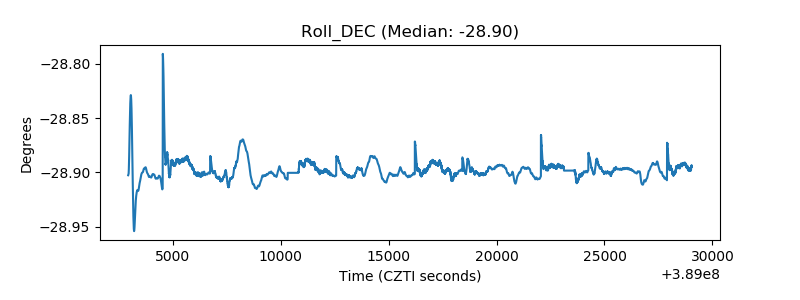

| _Roll_DEC |  |

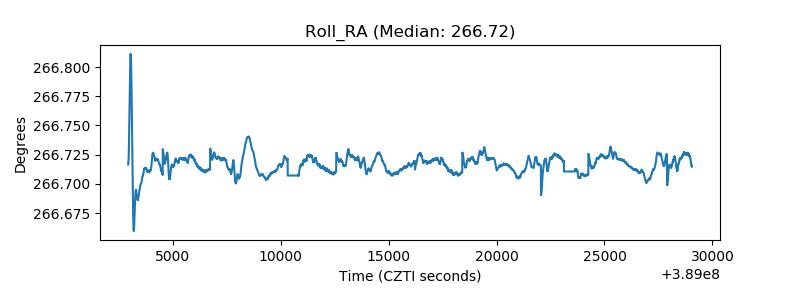

| _Roll_RA |  |

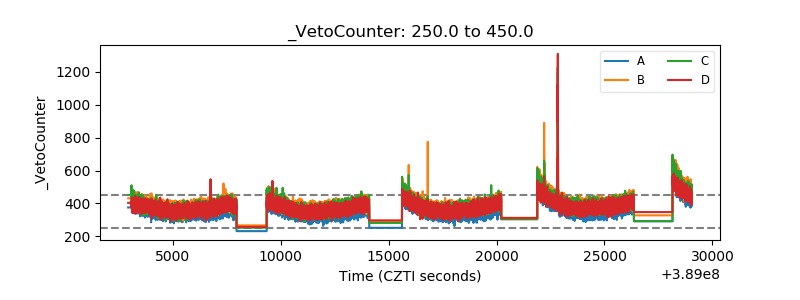

| Veto Counter |  |
