| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T01_9000005102_35635cztM0_level2.evt | modeM0/AS1A11_106T01_9000005102_35635cztM0_level2_quad_clean.evt |
| Size (bytes) | 765,204,480 | 74,160,000 |
| Size | 729.8 MB | 70.7 MB |
| Events in quadrant A | 13,457,672 | 291,214 |
| Events in quadrant B | 3,070,245 | 530,738 |
| Events in quadrant C | 3,195,913 | 530,753 |
| Events in quadrant D | 3,078,050 | 506,502 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43659 | 3 |
| B | 0 | 12498 | 2 |
| C | 0 | 12615 | 2 |
| D | 0 | 12708 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 33 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5494 | 5494 | 100.000000% |
| B | 5494 | 135 | 2.457226% |
| C | 5494 | 128 | 2.329814% |
| D | 5494 | 74 | 1.346924% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

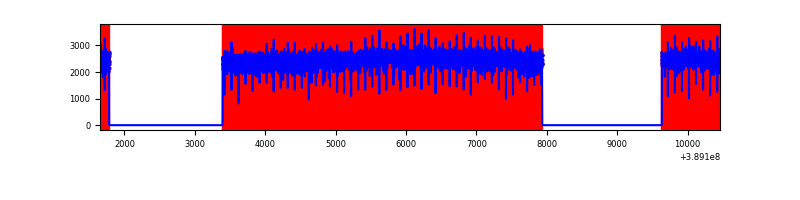

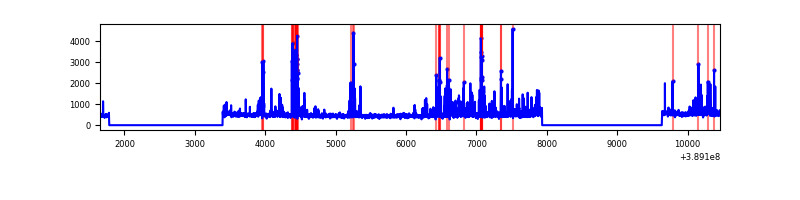

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8808 | 5496 | 5312 | 5312 | 60.31% | 96.65% |  |
| B | 8808 | 5496 | 83 | 83 | 0.94% | 1.51% |  |
| C | 8808 | 5496 | 88 | 88 | 1.00% | 1.60% |  |
| D | 8808 | 5496 | 56 | 56 | 0.64% | 1.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 11759789 | 140972.58 | 414 | 406 | 83.4 |
| A | 10 | 83 | 81535 | 972.58 | 414 | 406 | 83.4 |
| A | 8 | 6 | 10699 | 123.39 | 414 | 406 | 83.4 |
| B | 5 | 172 | 461204 | 3656.86 | 650 | 634 | 125.9 |
| B | 0 | 189 | 50897 | 399.08 | 650 | 634 | 125.9 |
| B | 12 | 111 | 15860 | 120.89 | 650 | 634 | 125.9 |
| C | 0 | 10 | 451973 | 3037.65 | 639 | 645 | 148.6 |
| C | 15 | 214 | 229746 | 1541.96 | 639 | 645 | 148.6 |
| C | 9 | 69 | 15246 | 98.27 | 639 | 645 | 148.6 |
| D | 12 | 217 | 463209 | 2981.78 | 642 | 626 | 155.1 |
| D | 13 | 249 | 81583 | 521.84 | 642 | 626 | 155.1 |
| D | 8 | 195 | 23852 | 149.71 | 642 | 626 | 155.1 |

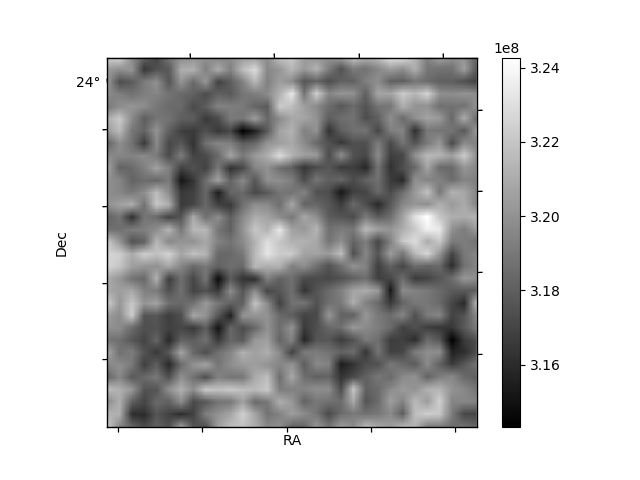

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

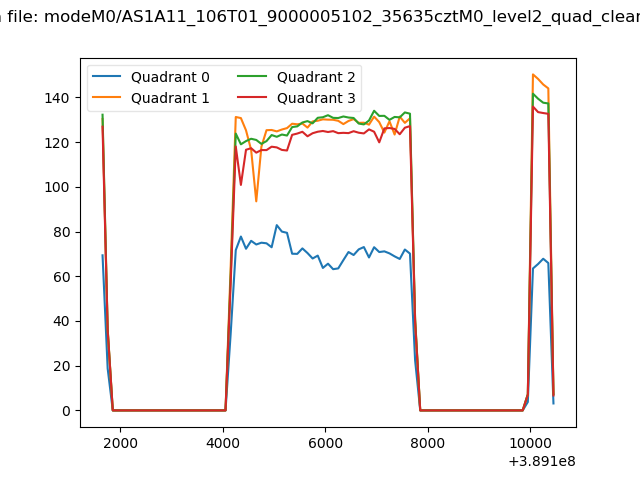

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

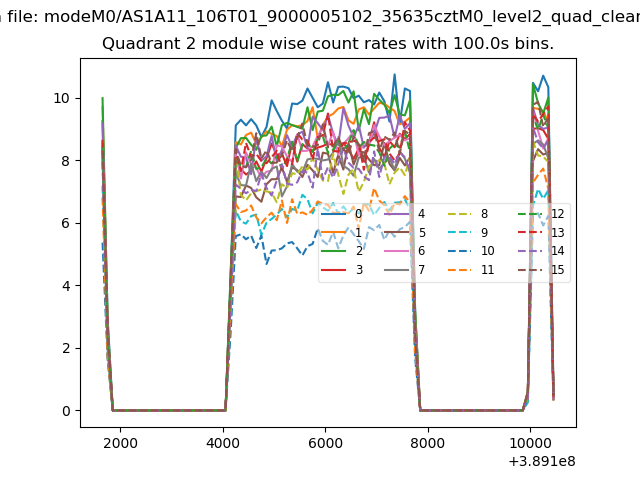

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

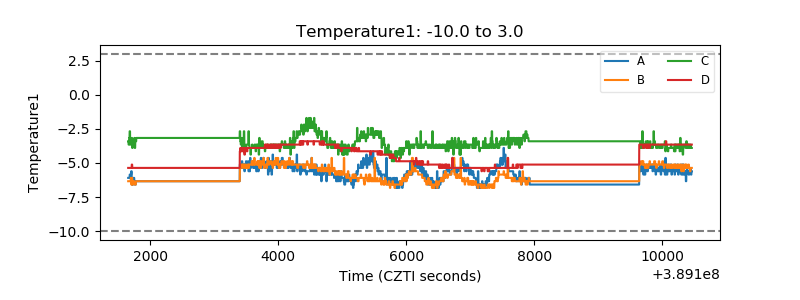

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

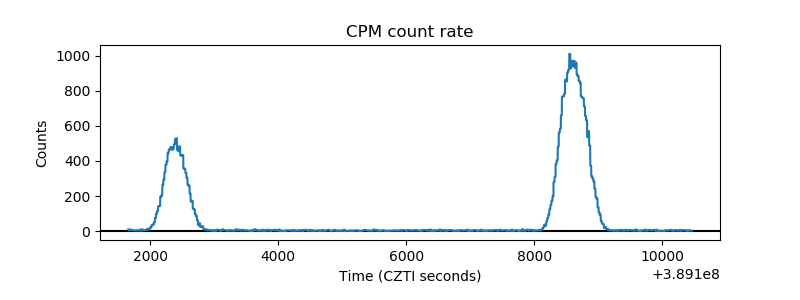

| _CPM_Rate |  |

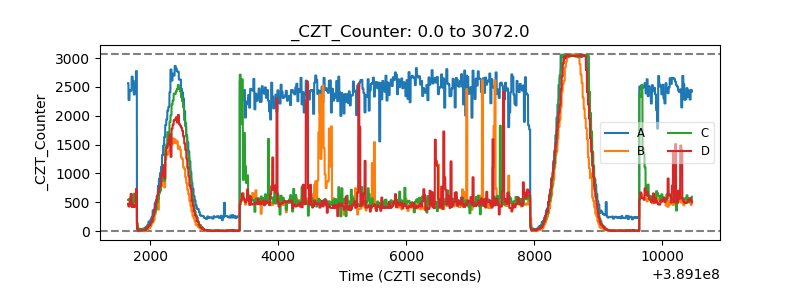

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
