| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T07_9000005104_35653cztM0_level2.evt | modeM0/AS1C07_001T07_9000005104_35653cztM0_level2_quad_clean.evt |
| Size (bytes) | 639,109,440 | 91,825,920 |
| Size | 609.5 MB | 87.6 MB |
| Events in quadrant A | 9,208,698 | 489,353 |
| Events in quadrant B | 3,431,723 | 643,285 |
| Events in quadrant C | 3,005,595 | 679,701 |
| Events in quadrant D | 3,378,139 | 623,454 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30751 | 3 |
| B | 0 | 13354 | 2 |
| C | 0 | 11918 | 2 |
| D | 0 | 13408 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4907 | 2391 | 48.726309% |
| B | 4907 | 366 | 7.458732% |
| C | 4907 | 157 | 3.199511% |
| D | 4907 | 331 | 6.745466% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7029 | 4908 | 2467 | 2467 | 35.10% | 50.26% |  |
| B | 7029 | 4908 | 274 | 274 | 3.90% | 5.58% |  |
| C | 7029 | 4908 | 118 | 118 | 1.68% | 2.40% |  |
| D | 7029 | 4908 | 262 | 262 | 3.73% | 5.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 7244474 | 76555.86 | 472 | 464 | 94.6 |
| A | 10 | 83 | 107720 | 1133.5 | 472 | 464 | 94.6 |
| A | 13 | 6 | 13415 | 136.87 | 472 | 464 | 94.6 |
| B | 5 | 172 | 1069814 | 10120.29 | 573 | 560 | 105.7 |
| B | 4 | 232 | 68159 | 639.81 | 573 | 560 | 105.7 |
| B | 3 | 112 | 16664 | 152.42 | 573 | 560 | 105.7 |
| C | 0 | 10 | 375103 | 2766.98 | 589 | 593 | 135.3 |
| C | 15 | 214 | 203075 | 1495.99 | 589 | 593 | 135.3 |
| C | 1 | 23 | 75415 | 552.81 | 589 | 593 | 135.3 |
| D | 10 | 118 | 717588 | 5212.97 | 569 | 555 | 137.5 |
| D | 2 | 249 | 109657 | 793.19 | 569 | 555 | 137.5 |
| D | 8 | 195 | 99825 | 721.71 | 569 | 555 | 137.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

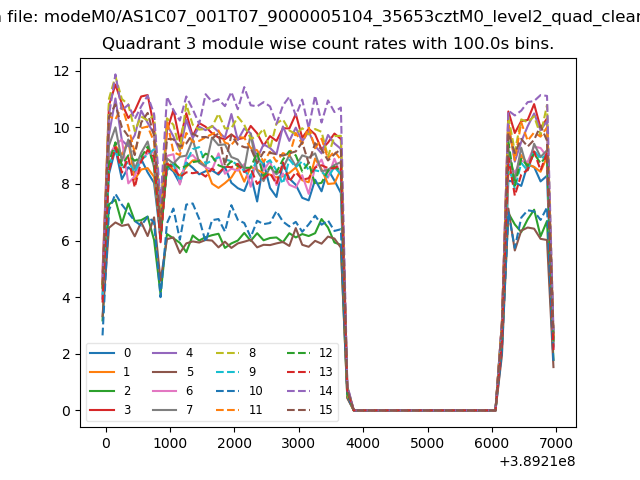

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

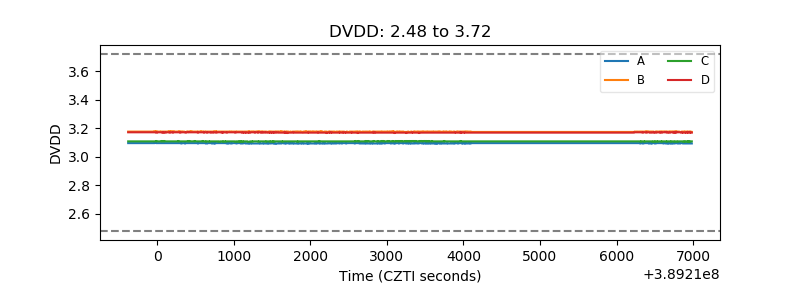

| D_VDD |  |

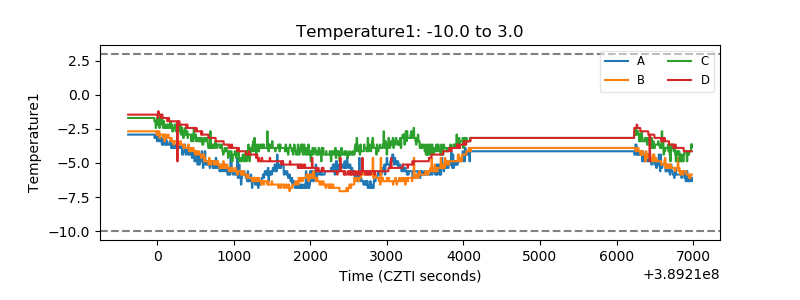

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

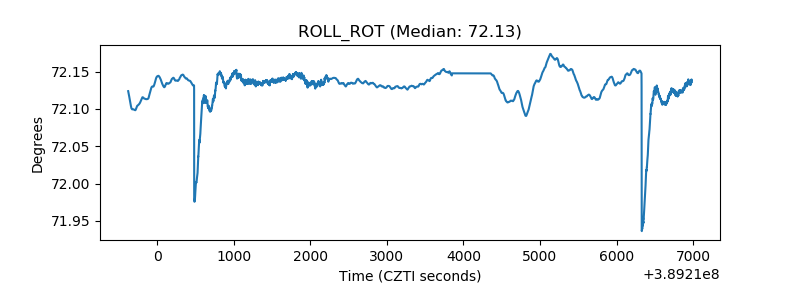

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

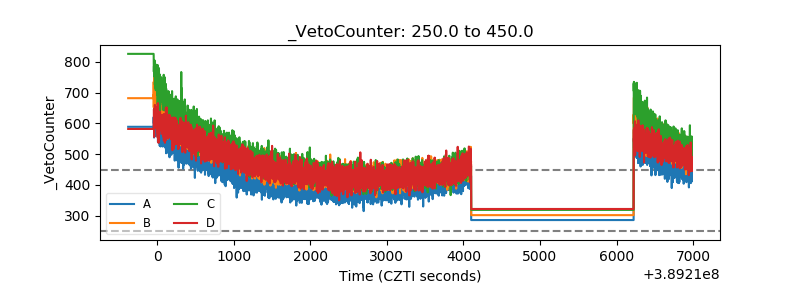

| Veto Counter |  |
